4.4.2 Space requirement
300 mm
300 mm
300 mm
1500 mm

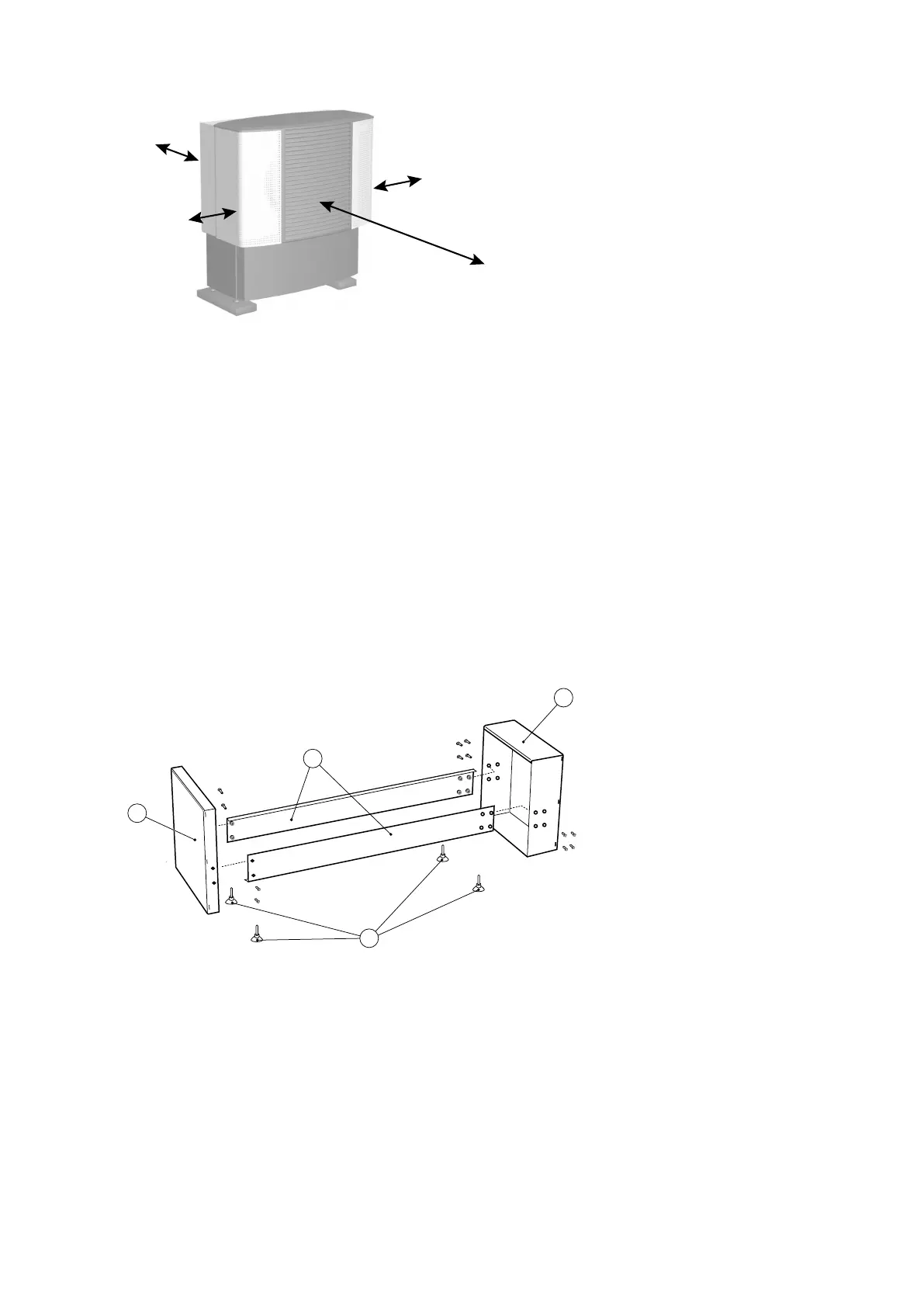

Figure 9. Necessary service space for outdoor unit.
4.4.3 Unpacking
The outdoor unit is packed and delivered in a crate.
1. Start by unpacking the unit from the crate.
2. Check that the delivery is complete, it must contain the outdoor unit, front cover, cover as well as a disas-
sembled stand including necessary screws, nuts and washers.
4.4.4 Installation
4.4.4.1 Assembling the stand
Assemble the stand
1. Screw the two horizontal struts together (2) using the two ends (1) as illustrated below. Use 10 x M6x10
screws. The curved edges of the horizontal struts must be facing inwards.
1
1
2
3
Figure 10. Assembling the stand
Symbol explanation
1 Ends
2 Strut
3 Feet
2. Screw the adjustable feet (3) into the holes under the ends.
4.4.4.2 Preparing the outdoor unit
While the outdoor unit remains on the pallet it should be prepared for placing on the stand. Carry out the follow-
ing:
18 – Installation instructions VMBMA1002
