5. Secure the front panel's upper edge with the 2 x remaining M6x15 torx TX25, see figure below.

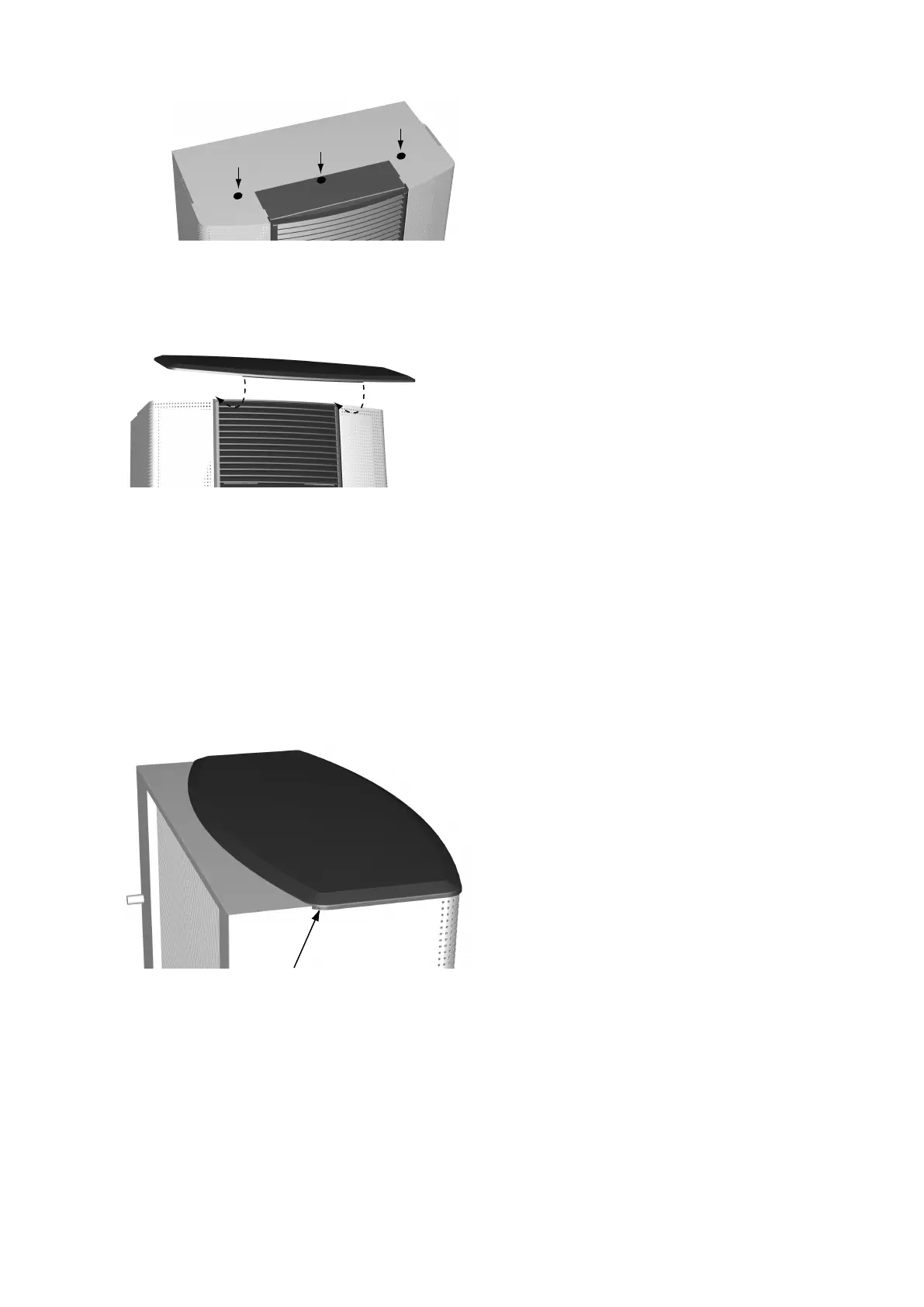

Figure 12. Secure the cover
4.4.4.6 Install the cover
1. Hook the cover at the front edge on the front cover.
Figure 13. Hook the front cover into place
1. Secure the cover using a screw on each side. Use 2 x cross head screws.
If the cover does not align with the side cover plates it may be necessary to drill new 3 mm holes:
•
Mark for the new holes
•
Lift off the cover
•
Drill the holes
•
Install and screw the cover into place
Figure 14. Screw the front cover into place
20 – Installation instructions VMBMA1002
