Danfoss DHP-L Installation Guide

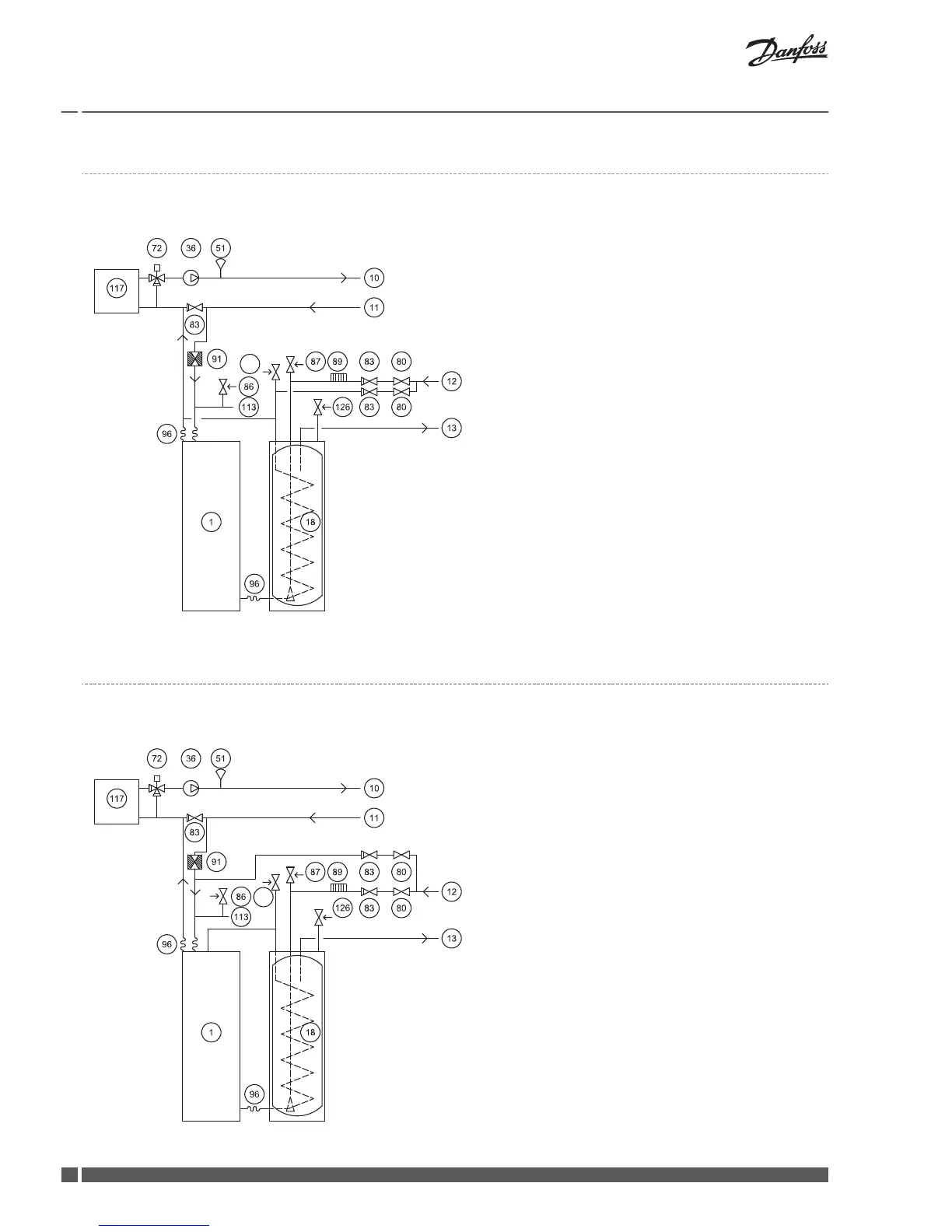

Example system solution 2
System solution for DHP-L, DHP-L Opti.
118
1 Heat pump
10 Supply line
11 Return line
12 Cold water
13 Hot water
18 Hot water tank
36 Circulation pump
51 Supply line sensor, moved out from heat pump
72 Shunt valve
80 Shut-off valve
83 Non-return valve
86 Safety valve expansion heating system
87 Safety valve cold water 9 bar
89 Vacuum valve
91 Dirt strainer with shut off valve
96 Flexible hose
113 Expansion heating system
117 External auxiliary heater
118 Safety valve 2,5 bar
126 Safety valve for temperature and pressure (only applies
to certain models)
Example system solution 2
System solution for DHP-L Opti Pro.
118
1 Heat pump
10 Supply line
11 Return line
12 Cold water
13 Hot water
18 Hot water tank
36 Circulation pump
51 Supply line sensor, moved out from heat pump
72 Shunt valve
80 Shut-off valve
83 Non-return valve
86 Safety valve expansion heating system
87 Safety valve cold water 9 bar
89 Vacuum valve
91 Dirt strainer with shut off valve
96 Flexible hose
113 Expansion heating system
117 External auxiliary heater
118 Safety valve 2,5 bar
126 Safety valve for temperature and pressure (only applies
to certain models)
Installation Guide
Domestic heat pumps
VMGFQ102 Danfoss Heating Solutions
24
