Cable Specification
The DC cables must have a suitable cross-section for their length, according to this table:
*Note: The length is from the battery to the refrigerator.

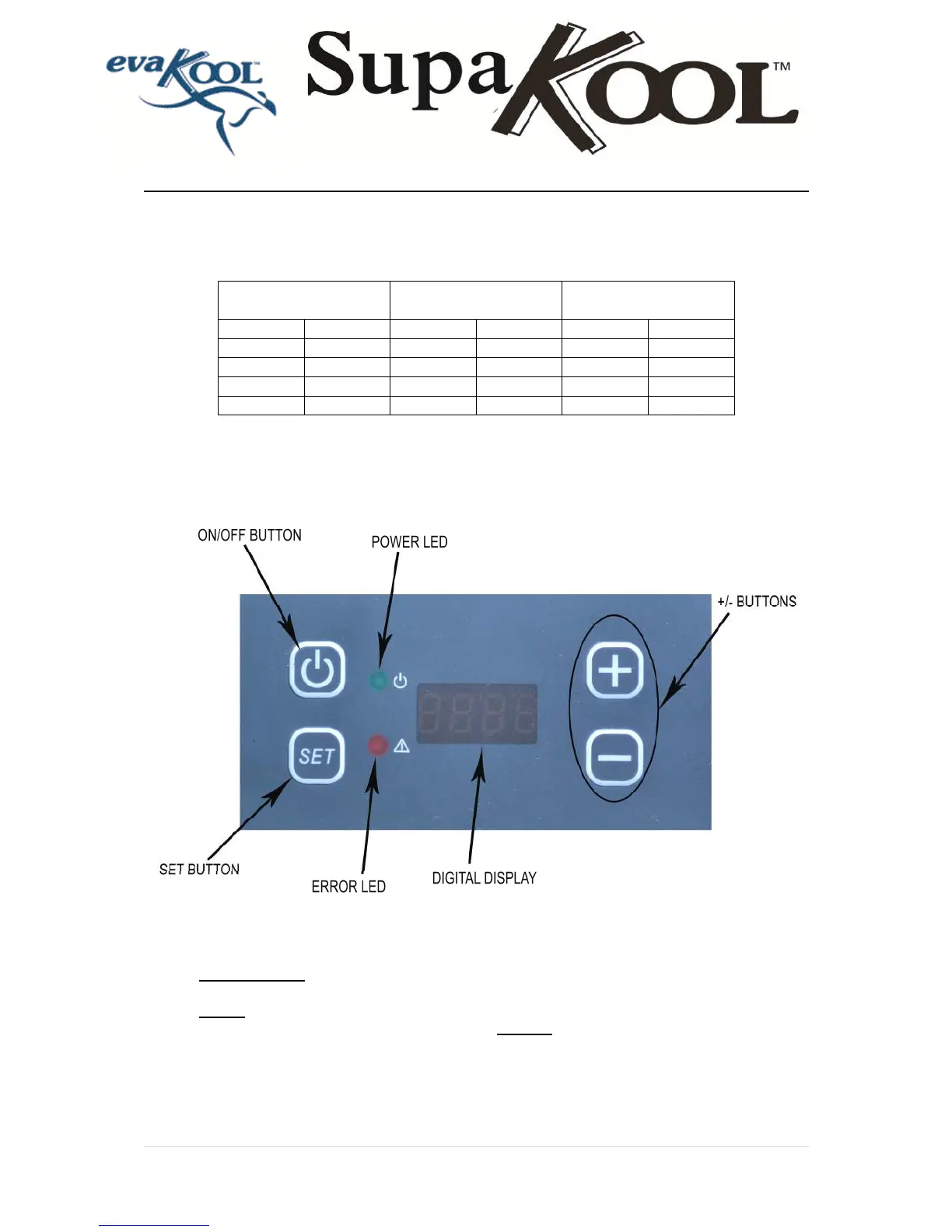

Display Panel
Using the Fridge
• TO TURN ON: Plug in the DC or AC power cable. The LED display on the control panel
will light up and the interior temperature will be displayed.
• NOTE: IF THE UNIT IS OFF, ONLY AN ORANGE LED WILL BE ILLUMINATED. TO
TURN ON YOUR UNIT PLEASE HOLD THE ON/OFF SWITCH DOWN UNTIL THE
POWER LED CHANGES TO GREEN AND THE LED DISPLAY IS ILLUMINATED.
Cable Area 12V Max Cable
Length*
24V Max Cable
Length*
[mm2] AWG [m] [ft.] [m] [ft.]
2.5 12 2.5 8 5 16
4 12 4 13 8 26
6 10 6 20 12 39
10 8 10 33 20 66
