Danfoss Heat Pump - G2 Shunt and Motor Basic Setting

27
VMIFB202

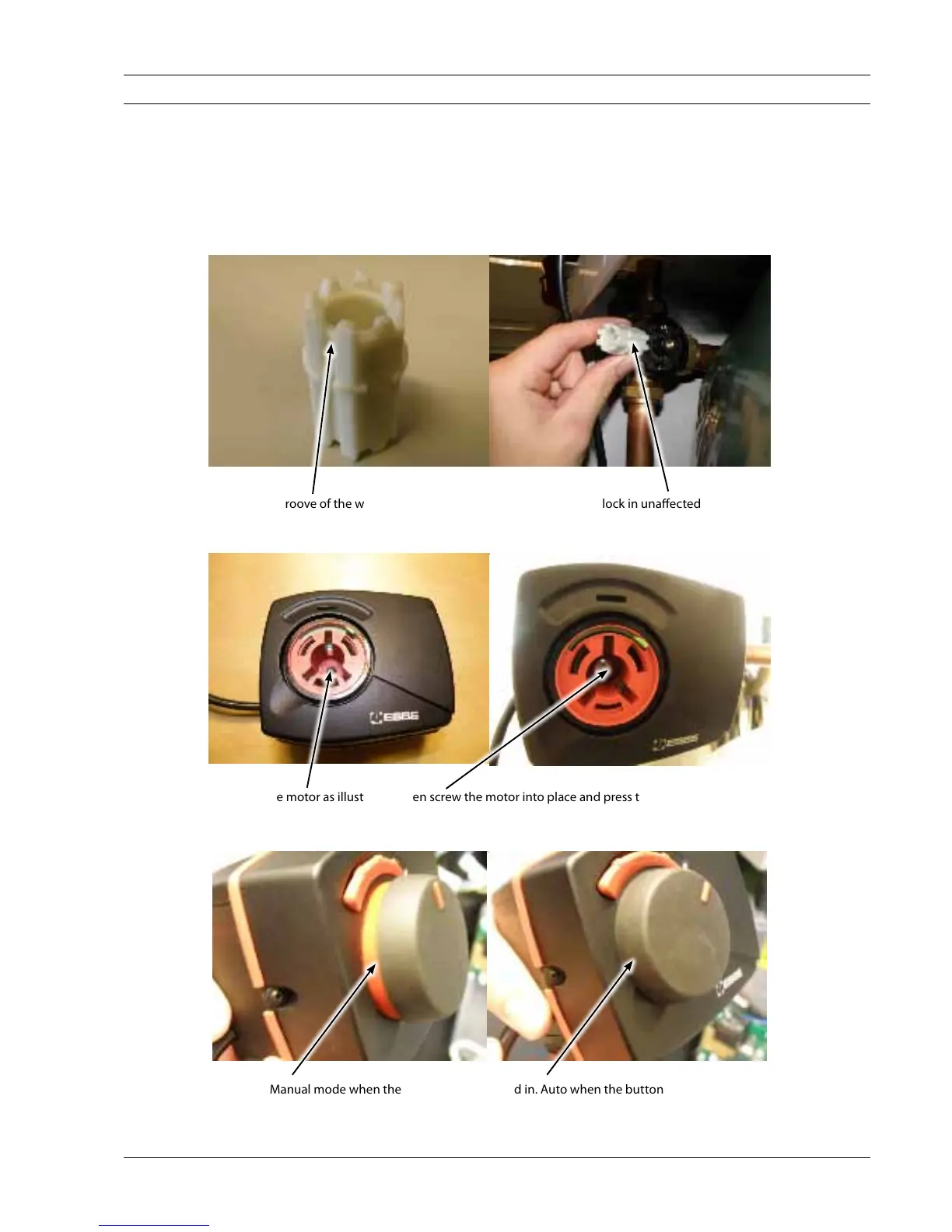

Basic setting G2 shunt + motor
Action:
Important to reset the shunt after taking the shunt apart!
The groove of the white six edged sleeve must be towards 3 o’clock in unaected mode.
Adjust the motor as illustrated. Then screw the motor into place and press the knob to Auto mode.
Manual mode when the button is not pressed in. Auto when the button is pressed.
