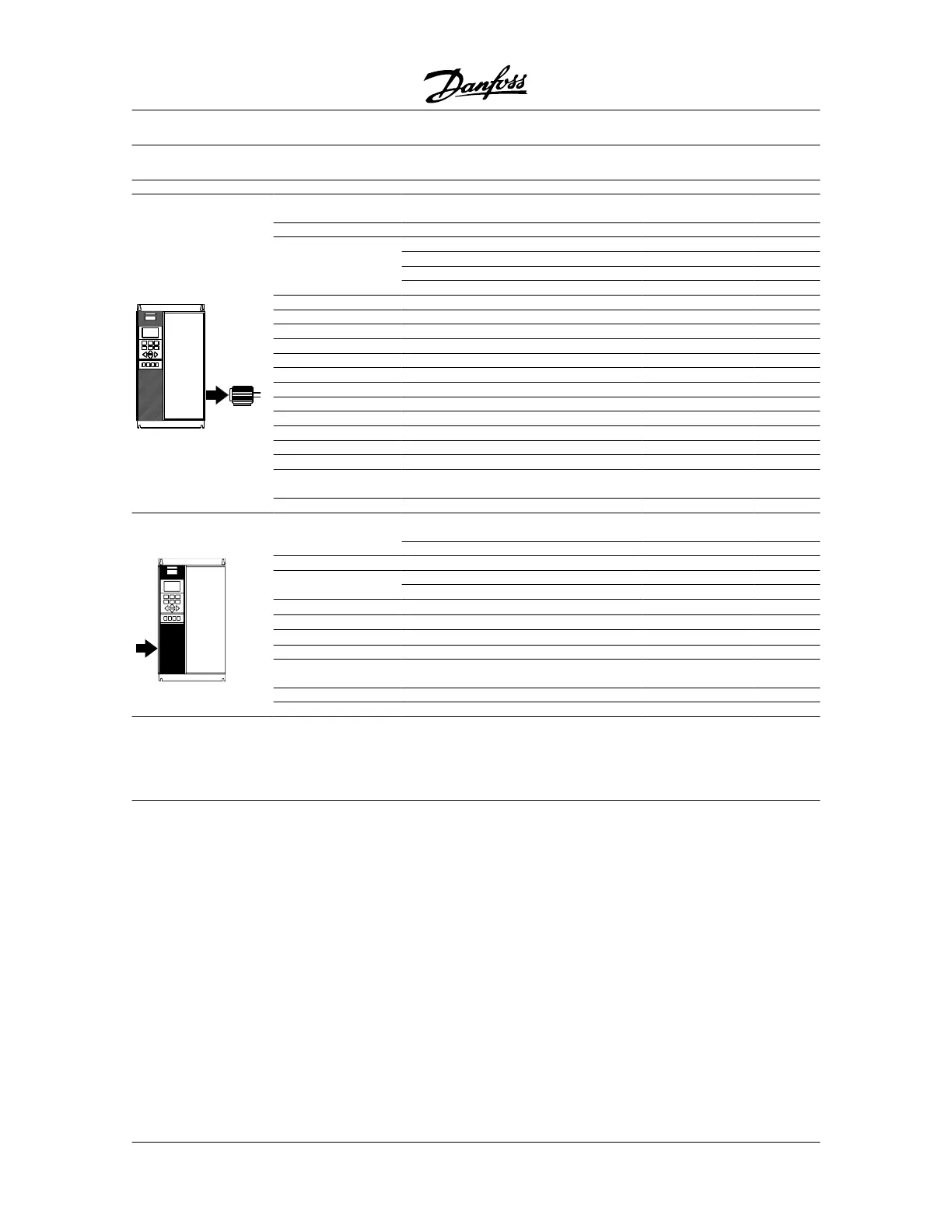

Danfoss VLT 5003 User Manual

Compact, AC line supply 3 x 525-600 V
According to international requirements VLT type 5005 5006 5008 5011
Normal overload torque (110 %):
Output current
I
VLT,N
[A] (550 V)
6.4 9.5 11.5 11.5
I
VLT, MAX
(60 s) [A] (550 V)
7.0 10.5 12.7 12.7
I
VLT,N
[A] (575 V)
6.1 9.0 11.0 11.0
I
VLT, MAX
(60 s) [A] (575 V)
6.7 9.9 12.1 12.1
Output S
VLT,N
[kVA] (550 V)
6.1 9.0 11.0 11.0
S
VLT,N
[kVA] (575 V)
6.1 9.0 11.0 11.0
Typical shaft output
P
VLT,N
[kW]
4 5.5 7.5 7.5
Typical shaft output
P
VLT,N
[HP]
5 7.5 10.0 10.0
Highl overload torque (160%):
Output current
I
VLT,N
[A] (550 V)
5.2 6.4 9.5 11.5
I
VLT, MAX
(60 s) [A] (550 V)
8.3 10.2 15.2 18.4
I
VLT,N
[A] (575 V)
4.9 6.1 9.0 11.0
I
VLT, MAX
(60 s) [A] (575 V)
7.8 9.8 14.4 17.6
Output
S
VLT,N
[kVA] (550 V)
5.0 6.1 9.0 11.0
S
VLT,N
[kVA] (575 V)
4.9 6.1 9.0 11.0
Typical shaft output
P
VLT,N
[kW]
3 4 5.5 7.5
Typical shaft output
P
VLT,N
[HP]
4 5 7.5 10
Max. cable cross-section to motor,
brake and load sharing [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Normal overload torque (110 %):
Rated input current
I
L,N
[A] (550 V)
6.2 9.2 11.2 11.2
I
L,N
[A] (600 V)
5.7 8.4 10.3 10.3
High overload torque (160%):
Rated input current
I
L,N
[A] (550 V)
5.1 6.2 9.2 11.2
I
L,N
[A] (600 V)
4.6 5.7 8.4 10.3
Max. cable cross-section, power [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Max. pre-fuses
[-]/UL
1)
[A]
8 10 15 20
Efficiency
3)
0.96 0.96 0.96 0.96
Weight IP 20 EB [kg] 10.5 10.5 10.5 10.5
Power loss at max.
load.
[W] 160 236 288 288
Enclosure IP 20/Nema 1
