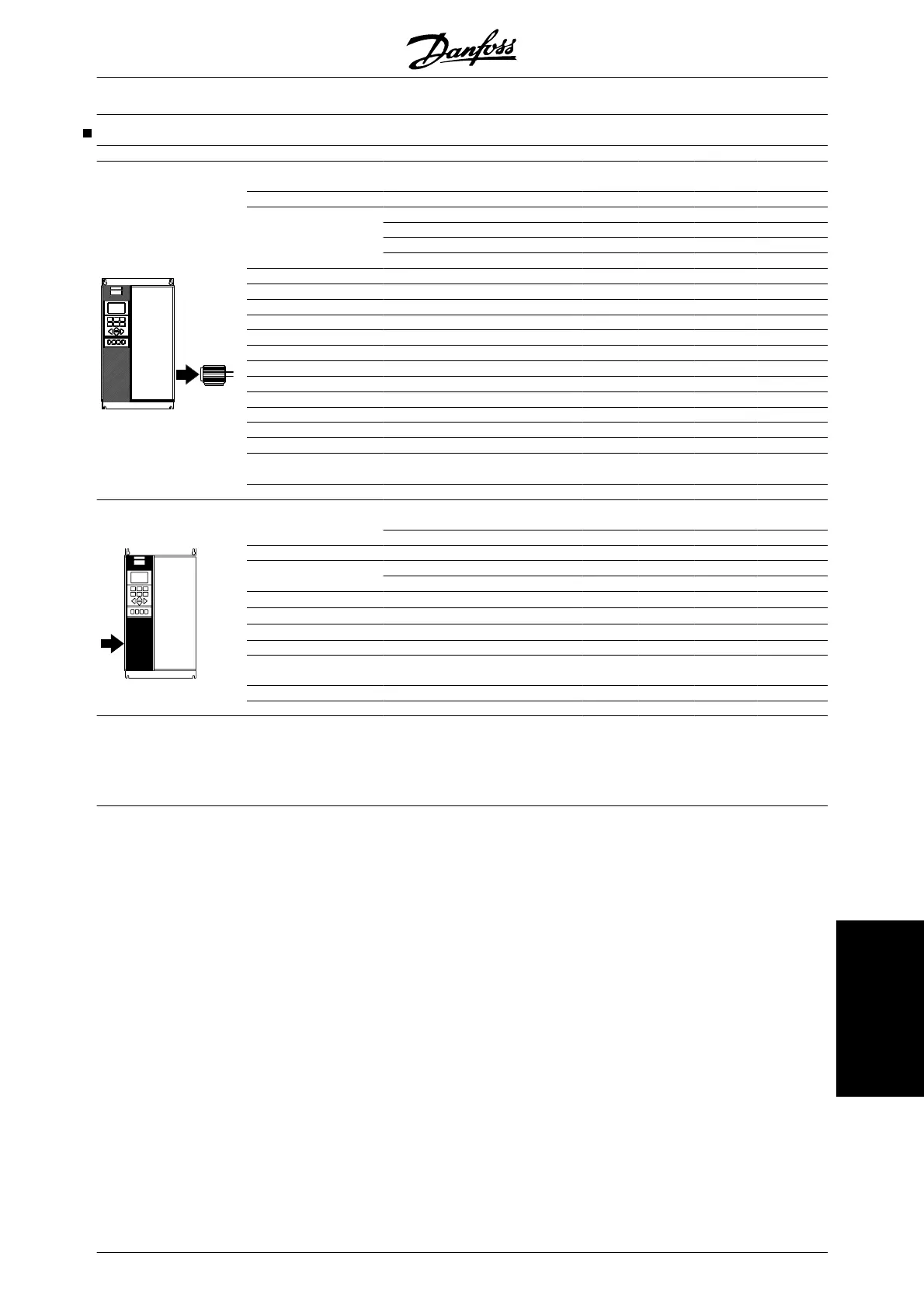

Danfoss VLT 5006 Design Guide

Compact, Mains supply 3 x 525 - 600 V
According to international requirements VLT type 5001 5002 5003 5004
Normal overload torque (110 %):
Output current
I
VLT,N
[A] (550 V)
2.6 2.9 4.1 5.2
I
VLT, MAX
(60 s) [A] (550 V)
2.9 3.2 4.5 5.7
I
VLT,N
[A] (575 V)
2.4 2.7 3.9 4.9
I
VLT, MAX
(60 s) [A] (575 V)
2.6 3.0 4.3 5.4
Output S
VLT,N
[kVA] (550 V)
2.5 2.8 3.9 5.0
S
VLT,N
[kVA] (575 V)
2.4 2.7 3.9 4.9
Typical shaft output
P
VLT,N
[kW]
1.1 1.5 2.2 3
Typical shaft output
P
VLT,N
[HP]
1.5 2 3 4
Highl overload torque (160%):
Output current
I
VLT,N
[A] (550 V)
1.8 2.6 2.9 4.1
I
VLT, MAX
(60 s) [A] (550 V)
2.9 4.2 4.6 6.6
I
VLT,N
[A] (575 V)
1.7 2.4 2.7 3.9
I
VLT, MAX
(60 s) [A] (575 V)
2.7 3.8 4.3 6.2
Output
S
VLT,N
[kVA] (550 V)
1.7 2.5 2.8 3.9
S
VLT,N
[kVA] (575 V)
1.7 2.4 2.7 3.9
Typical shaft output
P
VLT,N
[kW]
0.75 1.1 1.5 2.2
Typical shaft output
P
VLT,N
[HP]
1 1.5 2 3
Max. cable cross-section to motor,
brake and loadsharing [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Normal overload torque (110 %):
Rated input current
I
L,N
[A] (550 V)
2.5 2.8 4.0 5.1
I
L,N
[A] (600 V)
2.2 2.5 3.6 4.6
High overload torque ( 160 %):
Rated input current
I
L,N
[A] (550 V)
1.8 2.5 2.8 4.0
I
L,N
[A] (600 V)
1.6 2.2 2.5 3.6
Max. cable cross-section, power [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Max. pre-fuses
[-]/UL
1)
[A]
3 4 5 6
Efficiency
3)
0.96 0.96 0.96 0.96
Weight IP 20 EB [kg] 10.5 10.5 10.5 10.5
Power loss at max.
load.
[W] 63 71 102 129
Enclosure IP 20 / Nema 1
1. For type of fuses see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
