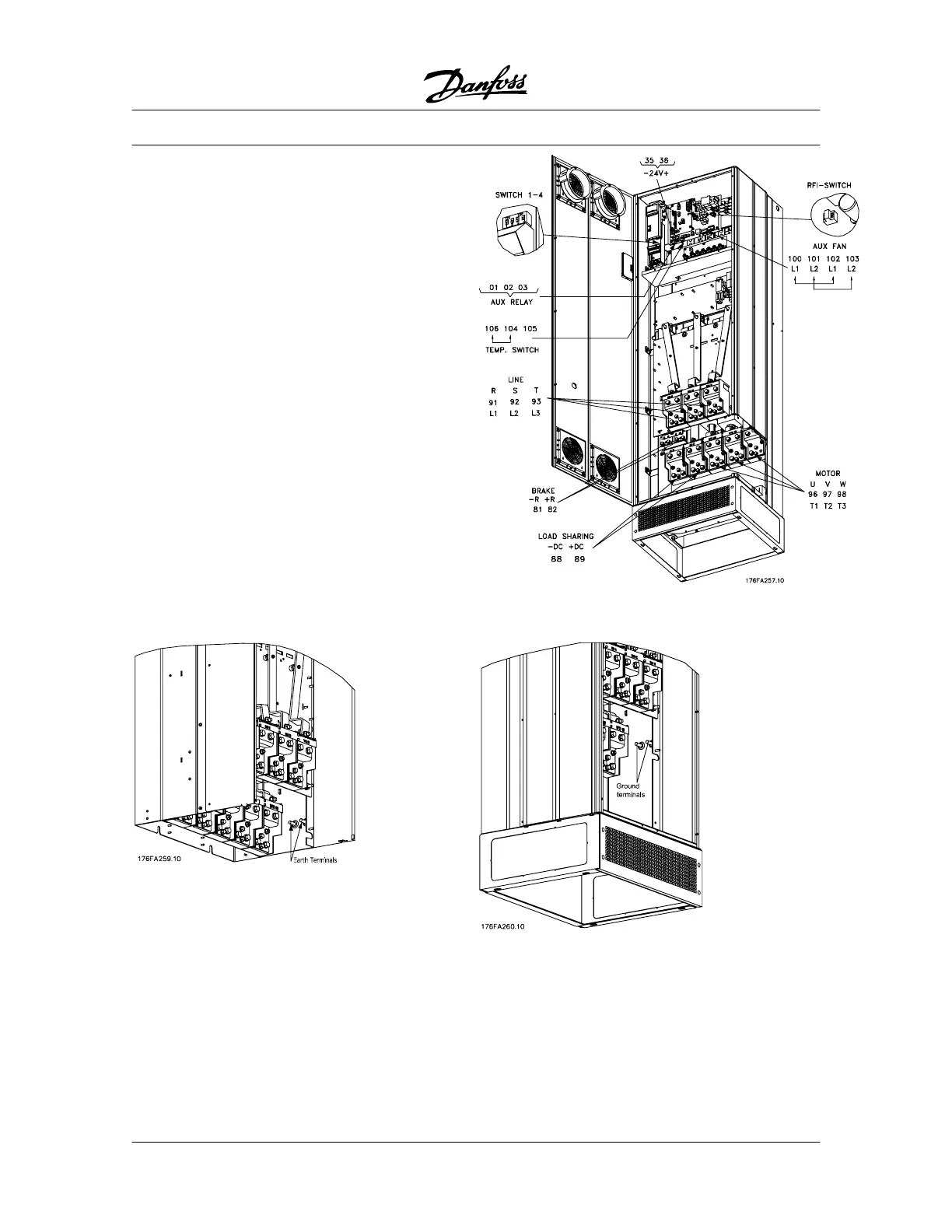

Compact IP 21/IP 54 with
out disconnect and
fuse
VLT 5352-5552 380-500 V, VLT 5402-56
02, 525-690 V
Note: The RFI switch has no function in the 525-690 V drives.
Position of earth terminals, IP
00
Position of earth terminals, IP 21/ IP 54
VLT
®
5000 Series
52
MG.51.C5.22 - VLT
p
is a registered Danfoss trademark.
54
56
Table of Contents
Default Chapter
4
Table of Contents
4
Safety
7
Safety Regulations
8
Warning against Unintended Start
8
Installation of Mechanical Brake
8
Technical Data
9
General Technical Data
9
Electrical Data
16
Fuses
36
Dimensions
44
Mechanical Dimensions
44
Installation
47
Mechanical Installation
47
Electrical Installation - Mains Supply
61
Safety Grounding
61
Extra Protection (RCD)
61
RFI Switch
61
Installation of Motor Cables
65
Connection of Motor
65
Direction of Motor Rotation
65
Electrical Installation - Brake Cable
66
Electrical Installation - Relay Outputs
66
Electrical Installation - 24 Volt External DC Supply
66
Electrical Installation - Load Sharing
66
Electrical Installation - Brake Resistor Temperature Switch
67
Electrical Installation - Bus Connection
67
Installation of Control Cables
68
Connection Examples
71
Operation of the VLT
74
Control Panel (LCP)
74
Control Panel - Display
74
Control Panel - Leds
75
Control Panel - Control Keys
75
Quick Setup
78
Parameter Selection
78
Menu Mode
78
Manual Initialization
80
Programming
82
Operation & Display
82
Load and Motor
90
References and Limits
103
Parameters - Inputs and Outputs
112
Special Functions
128
Parameters - Serial Communication
144
Parameters - Technical Functions and Diagnostics
152
Messages
159
Trouble-Shooting
159
Display - Status Messages
160
Warnings and Alarms
163
Warnings
164
Examples of Use
171
Conveyor Belt
171
Pump
172
Gantry Crane
173
Torque Control, Speed Feedback
174
VLT 5000 Controllers
175
PID for Process Control
177
PID for Speed Control
178
PID for Torque Controller (Open Loop)
179
Ec/Emc
180
CE Labelling
180
Electrical Installation
184
Electrical Installation - EMC Precautions
184
Electrical Installation, Selection of EMC-Correct Cables
187
List of Functions
188
Setting of Parameters
188
Local and Remote Control
191
Control with Brake Function
192
References - Single References
193
References - Multi-References
195
Automatic Motor Adaptation, AMA
199
Mechanical Brake Control
201
PID for Process Control
203
PID for Speed Control
204
Quick Discharge
205
Flying Start
207
Normal/High Overload Torque Control,Open Loop
209
Programming of Torque Limit and Stop
209
Galvanic Isolation (PELV)
210
Extreme Running Conditions
212
