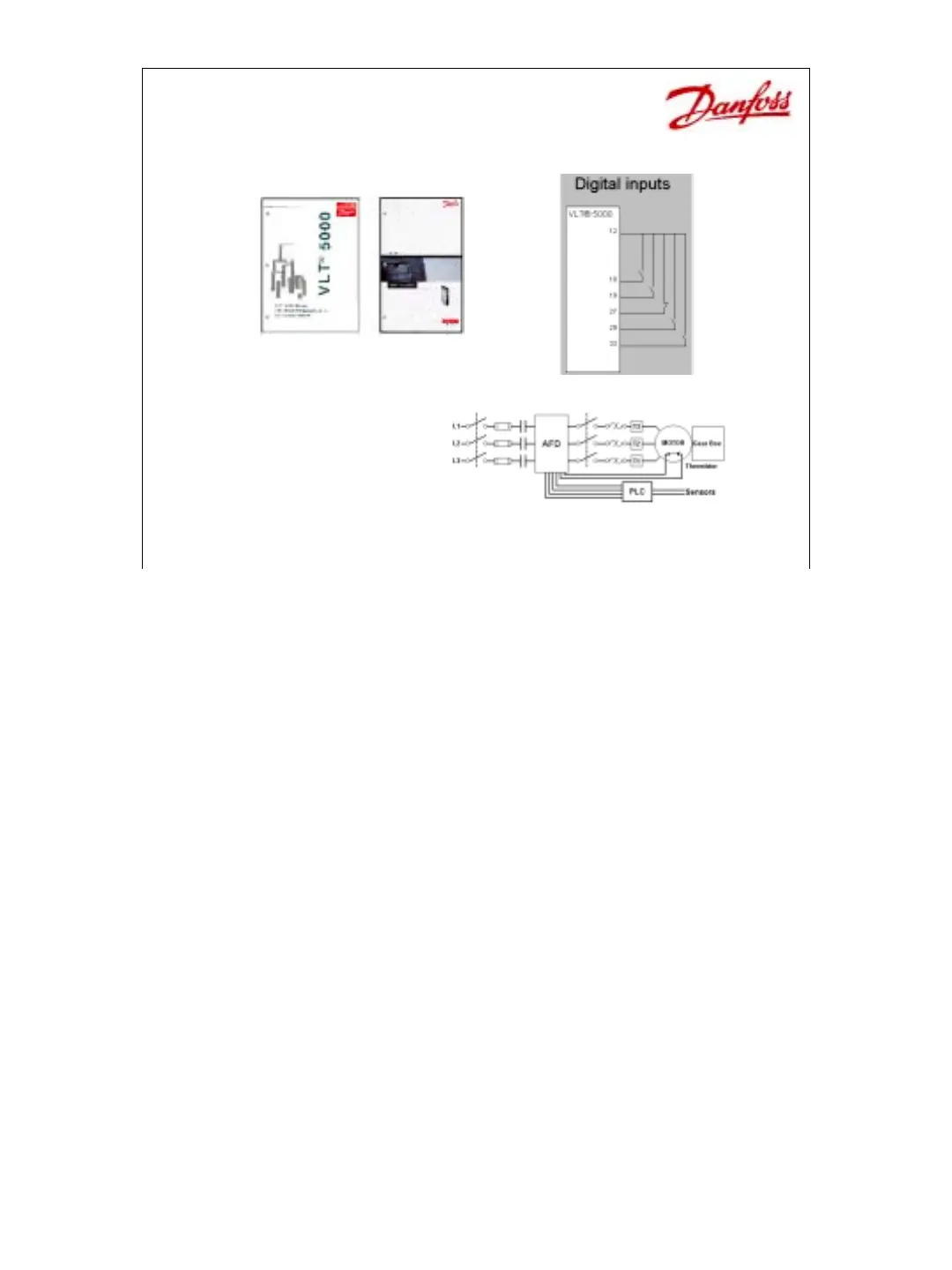

Reference Material
• Instruction Manuals
• Connection Diagram
• Schematic Diagram
These three pieces of reference material might be available to you when you are starting up
a drive.
The VLT 5000 Instruction Manual provides general information on topics like mounting
clearances, drive fuses, terminal tightening torques, and drive parameters.
From the Customer, a Connection Diagram might be available which provides a sketch
indicating the layout and use the equipment in the system. A Schematic Diagram from the
customer could also provide details of the wiring between the drive, any options, and the
control system.
