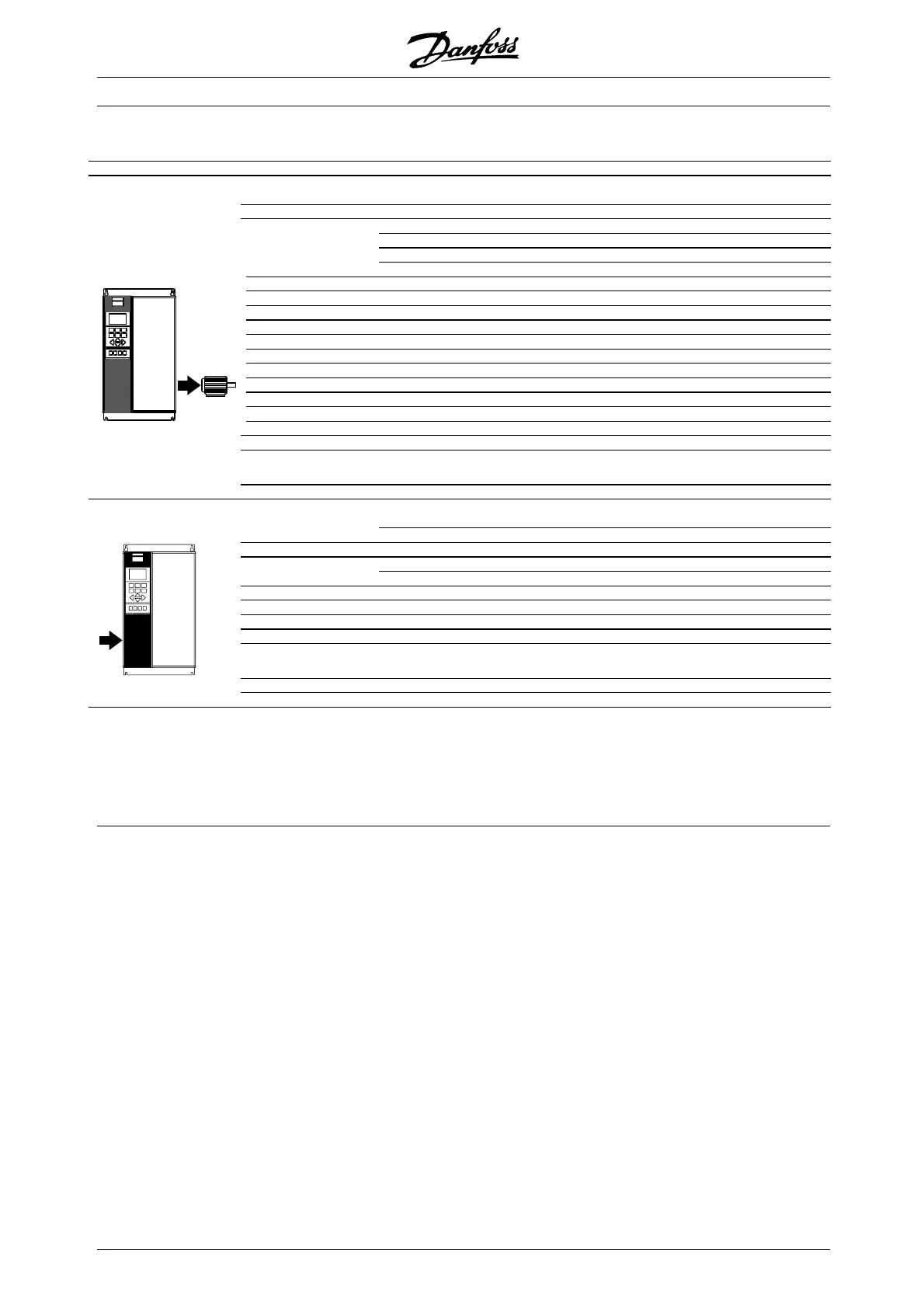

Danfoss VLT 5027 Operating Instructions

VLT
®
5000 Series
Compact, Mains supply 3 x 525 - 600 V
According to international requirements VLT type 5005 5006 5008 5011
Normal overload torque (110 %):
Output current I
VLT,N
[A] (550 V) 6.4 9.5 11.5 11.5
I
VLT, MAX
(60 s) [A] (550 V) 7.0 10.5 12.7 12.7
I
VLT,N
[A] (575 V) 6.1 9.0 11.0 11.0
I
VLT, MAX
(60 s) [A] (575 V) 6.7 9.9 12.1 12.1
Output S
VLT,N
[kVA] (550 V) 6.1 9.0 11.0 11.0
S
VLT,N
[kVA] (575 V) 6.1 9.0 11.0 11.0
Typical shaft output P
VLT,N
[kW] 4 5.5 7.5 7.5
Typical shaft output P
VLT,N
[HP] 5 7.5 10.0 10.0
Highl overload torque (160%):
Output current I
VLT,N
[A] (550 V) 5.2 6.4 9.5 11.5
I
VLT, MAX
(60 s) [A] (550 V) 8.3 10.2 15.2 18.4
I
VLT,N
[A] (575 V) 4.9 6.1 9.0 11.0
I
VLT, MAX
(60 s) [A] (575 V) 7.8 9.8 14.4 17.6
Output S
VLT,N
[kVA] (550 V) 5.0 6.1 9.0 11.0
S
VLT,N
[kVA] (575 V) 4.9 6.1 9.0 11.0
Typical shaft output P
VLT,N
[kW] 3 4 5.5 7.5
Typical shaft output P
VLT,N
[HP] 4 5 7.5 10
Max. cable cross-section to motor,
brake and loadsharing [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Normal overload torque (110 %):
Rated input current I
L,N
[A] (550 V) 6.2 9.2 11.2 11.2
I
L,N
[A] (600 V) 5.7 8.4 10.3 10.3
High overload torque ( 160 %):
Rated input current I
L,N
[A] (550 V) 5.1 6.2 9.2 11.2
I
L,N
[A] (600 V) 4.6 5.7 8.4 10.3
Max. cable cross-section, power [mm
2
]/[AWG]
2)
4/10 4/10 4/10 4/10
Max. pre-fuses [-]/UL
1)
[A] 8 10 15 20
Efficiency
3)
0.96 0.96 0.96 0.96
Weight IP 20 EB [kg] 10.5 10.5 10.5 10.5
Power loss at max.
load.
[W] 160 236 288 288
Enclosure IP 20 / Nema 1
1. For type of fuses see section Fuses.
2. American Wire Gauge.
3. Measured using 30 m screened motor cables at rated load and rated frequency.
MG.51.A9.02 - VLT is a registered Danfoss trademark
28
