Danfoss VLT FCM Series User Manual

VLT
®
FCM Series
Programming
317 Time out
(LIVE ZERO TIME OUT)
Value:
1-99sec.
[1 - 99]
✭10 sec.
[10]
Function:
If the value of the reference signal connected to
the input, terminal 1, falls below 50% of the setting
in parameter 336 for a period longer than the
time set in parameter 317, the function selected
in parameter 318 will be activated.
Description of choice:
Set the desired time.
318 Function after time out
(LIVE ZERO FUNCT.)
Value:
✭Off (OFF)
[0]
Stop and trip (STOP AND TRIP)
[5]
Function:
This parameter allows a choice of the function to
be activated if the value of the reference signal
connected to the input, terminal 1, falls below 50%
of the setting in parameter 336 for a period longer
than the time set in parameter 317.
If a time-out function (parameter 318) occurs at the
same time as a bus time-out function (parameter 514),
the time-out function (parameter 318) will be activated.
323 Terminal X102, relay function (RELAY FUNC.)
Settings:
✭No function (NO OPERATION) [0]
Ready signal (UNIT READY) [1]
Enable, no warning (ENABLE/NO WARNING) [2]
Running (MOTOR RUNNING) [3]
Running, no warning (RUNNING NO WARNING) [4]
Running on reference, no warning (RUNNING ON REFERENCE) [5]
Fault (FAULT) [6]
Fault or warning (FAULT OR WARNING) [7]
Current limit (CURRENT LIMIT) [8]
Thermal warning (THERMAL WARNING) [9]
Reversing (REVERSE) [10]
Control word bit 11 (CONTROL WORD BIT 11) [11]
Control word bit 12 (CONTROL WORD BIT 12) [12]
Mechanical brake (MECHANICAL BRAKE) [20]
Therelayoutputcanbeusedtogivethe
present status or a warning.

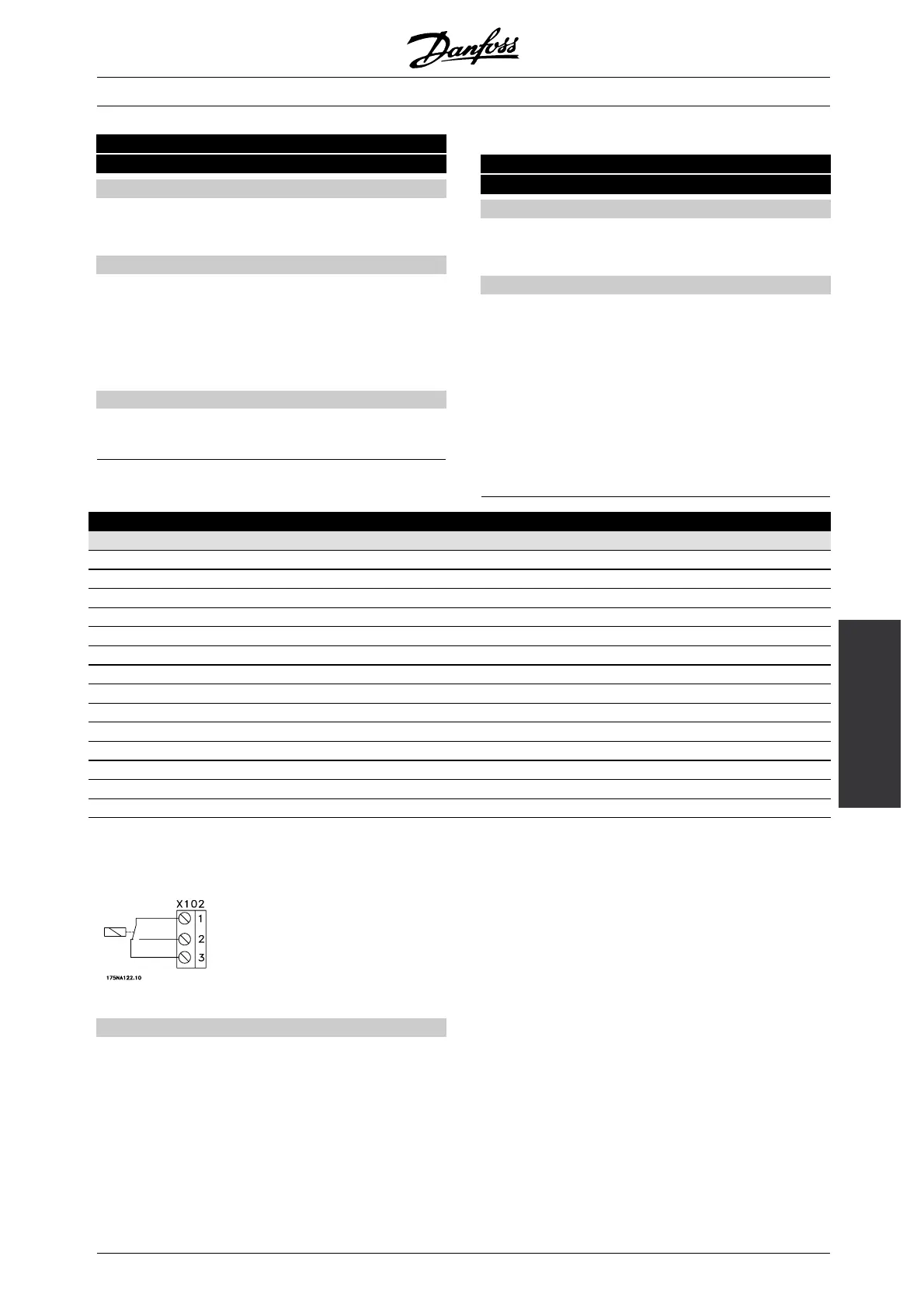

Relay
1-3break,1-2make
Max. 250 V AC, 5Amp.
Description of choice:
Unit Ready signal, the FC motor is ready for use.
Enable/no warning, the FC motor is ready for
use; no start or stop command has been given
(start/ disable). No warning.
Motor Running, the output frequency is higher than
0.1 Hz. A start command has been given.
Running no warning, the output frequency is higher than
0.1 Hz. A start command has been given. No warning.
Running on reference, no warning, speed according
to reference. No warning.
Fault, output is activated by alarm.
Fault or warning, the output is activated by
alarm or warning.
Current limit, the current limit in parameter
221 has been exceeded.
Thermal warning, above the temperature limit
in the frequency converter.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.03.H3.02 - VLT is a registered Danfoss trademark
51
