PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions
3 | PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions | 2022.10.
AQ430855066686en-000101
Crimp Locator T-400-9
The T-400-9 allows you to make large volumes of hose assemblies by
automatically aligning hose ends in proper crimp location.

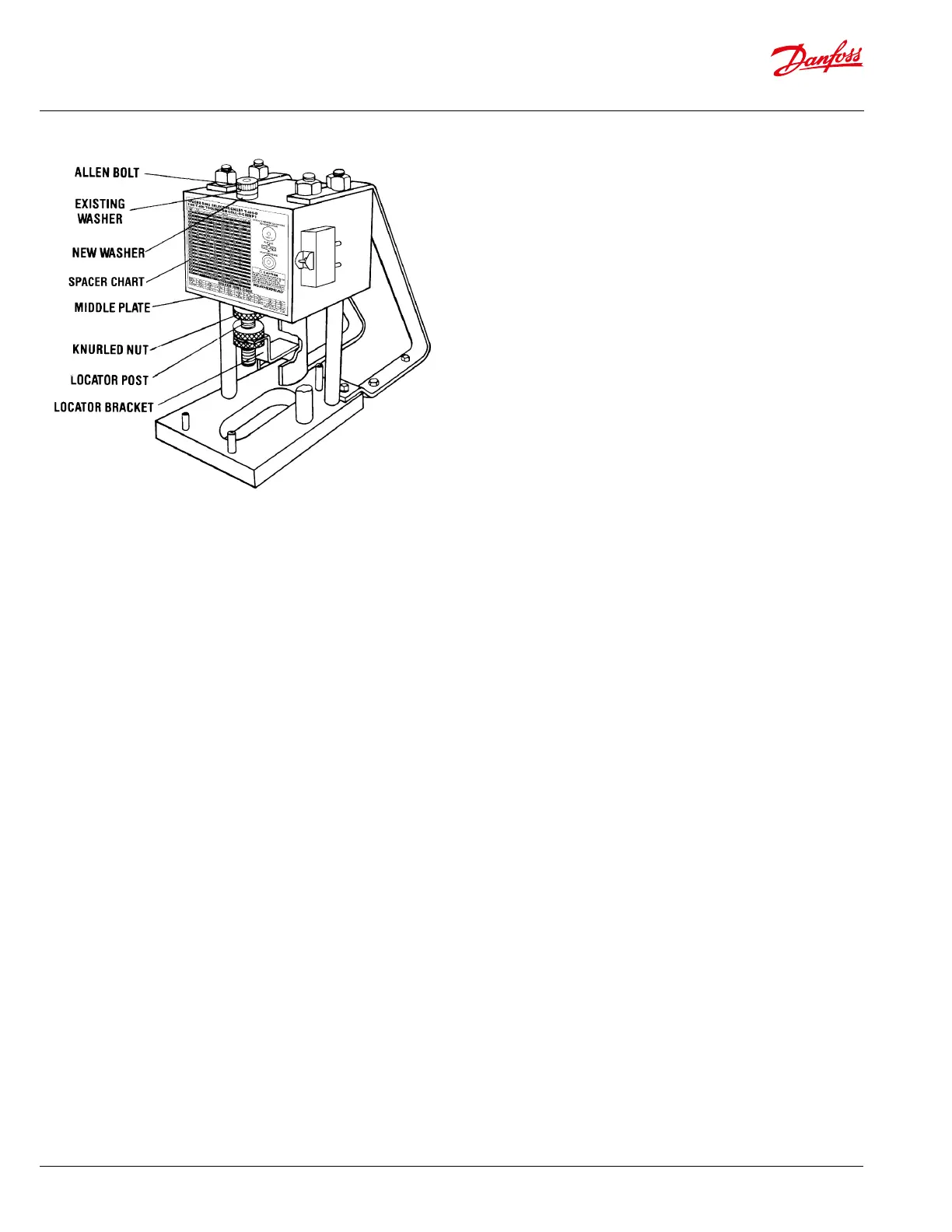

T-400-9 Crimp Locator Installation Instructions:
1. Remove the front allen bolt using an allen wrench or tool provided
with kit.
2. Add the washer provided with the kit to existing washer as shown and
torque the bolt down to approximately 75ft.-lbs.
3. Attach the locator post of the pre-assembled locator to the bottom of
the middle plate and lock it in place with one of the knurled nuts.
4. Align the dimples on the first assembly with the top of the collet to
locate the crimp. Drop the locator bracket down to rest on top of the
hose end. Lockthe bracket in position with remaining two knurled
nuts. The locator now can be used, instead of dimples, to locate crimp
accurately and consistently for the remaining hose ends of the same
size and type.
