PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions
4 | PORTABLE COLL-O-CRIMP® Model T-400-1 Set up and operating instructions | 2022.10.
AQ430855066686en-000101

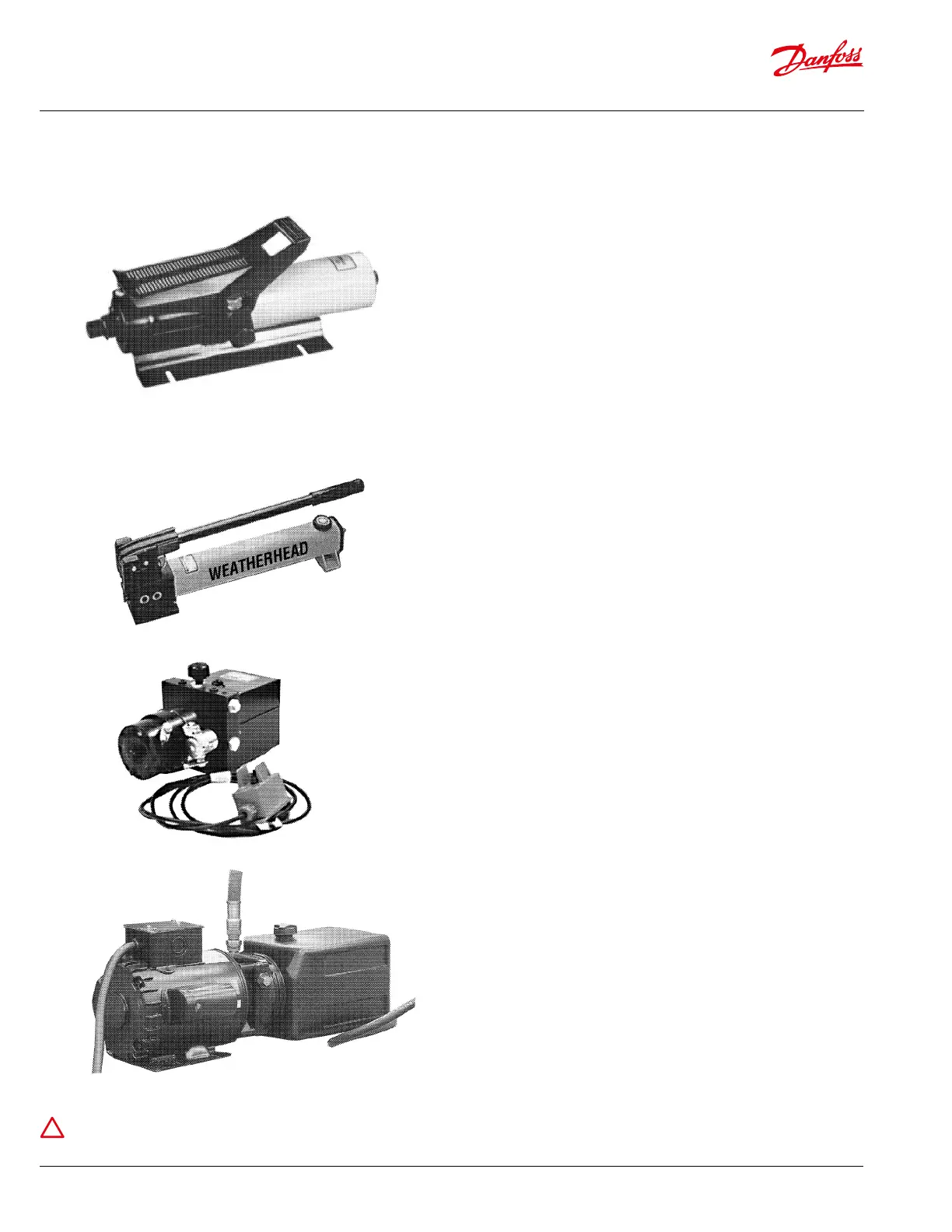

Power Unit Specication
T-402-1 Air/Hydraulic Pump
(Some models have air port on right side)
Dimensions 5-1/4” high, 5” wide, 12-1/2” deep
Weight 18 lbs.
Pressure 4000-4200 psi
Reservoir Size 37.2 cu. in.
Outlet Port Size 3/8” NPT
Inlet (air) Port Size 1/4” NPT
Air Pressure 60 to 120 psi
Hydraulic Oil Automatic Transmission Fluid (ATF) or equivalent
Reservoir Capacity 1 pint
Filter F23A3T00
Regulator R23RGLOO
Lubricator L43MPLOO
NOTE: It is recommended that a filter, regulator, lubricator and air pressure
gauge be installed in the air line as close as possible to the pump. Filter,
Regulator and Lubricator units not included.
1-403-2 Hand Pump
Dimensions 6-1/4” high, 4” wide, 21-3/4” deep
Weight 19 lbs.
Pressure 5000 psi max.
Reservoir Size 58 cu. in.
Outlet Port Size 3/8” NPT
Hydraulic Oil Automatic Transmission Fluid (ATF) or equivalent
Reservoir Capacity 1 quart
1-412 Mobile Electric Pump
Dimensions 7-1/2” high, 9” wide, 14-1/8” long
Weight 65 lbs.
Pressure 4000-4200 psi
Reservoir Size 145 cu. in.
Outlet Port Size 3/4-16 straight thread
Motor 12 volt DC
Hydraulic Oil Automatic Transmission Fluid (ATF) or equivalent **
SAE 10 Grade **Use only if operating temp. below OF or above 160°F
Reservoir Capacity 3 quarts
Flow 0.5 GPM
T-421U Electric Pump
Dimensions 7-1/2” high, 10” wide, 22” long
Weight 75 lbs.
Pressure 4000-4200 psi
Reservoir Size 6 quarts
Outlet Port Size 3/4-16 Straight Thread
Motor 1 H.P., 3450 RPM, 220 volts 60 cycle, single phase
Hydraulic Oil Automatic Transmission Fluid (ATF) or equivalent **
SAE 10 Grade
**Use only if operating temp. below OF or above 160°F
Reservoir Capacity 6 quarts
Flow 2.6 GPM to 900 psi
!
CAUTION All of the above approved Coll-O-Crimr electric power sources have the pressure relief valve set at 4000 to 4,200 psi. Damage to the press
will result and the warranty may be voided if higher pressures are used.
