Meter housing internal components - NPS 3 through 8 -
Unidirectional
The figure below identifies and describes the NPS 3 through 8 unidirectional meter
housing components.

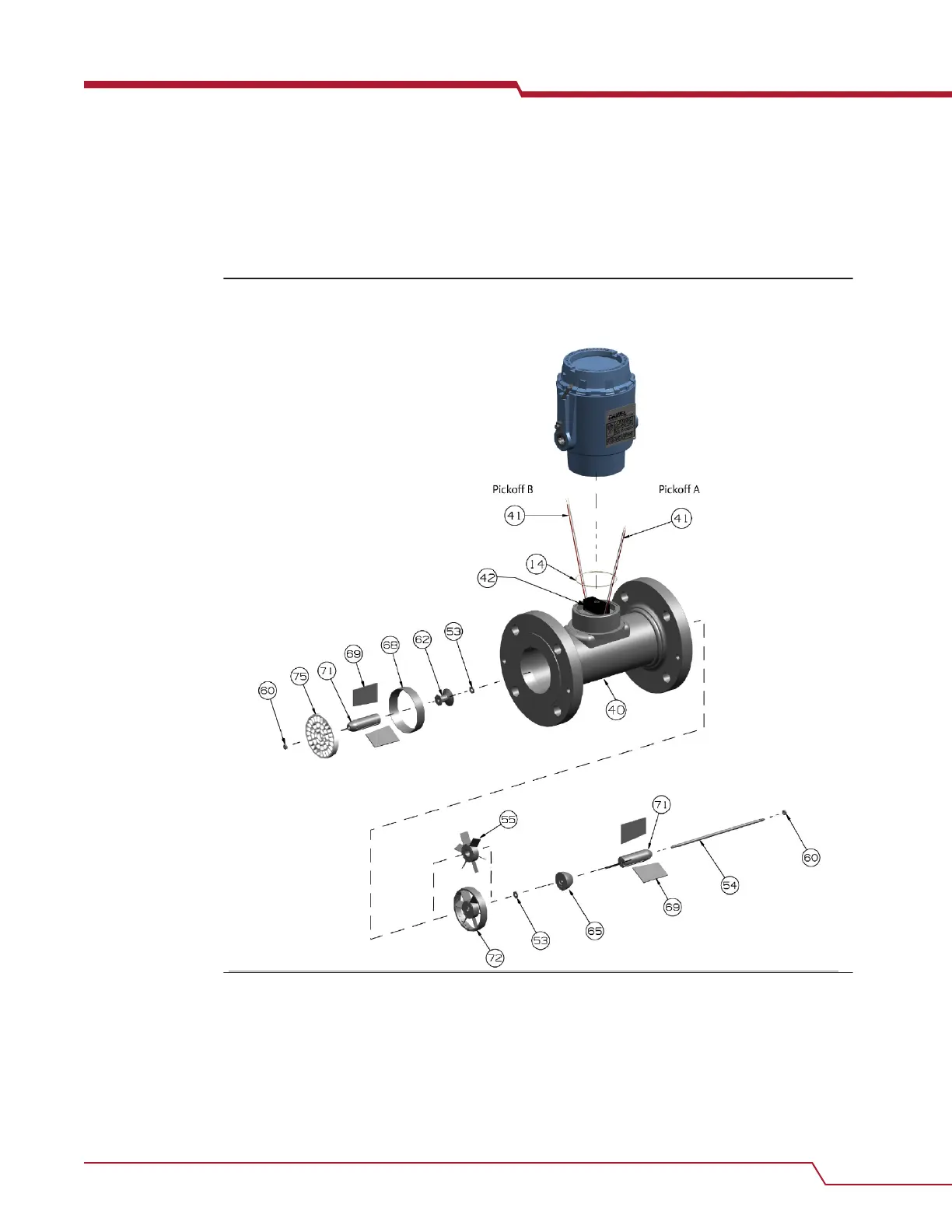

Figure 1-7: Part identification for an NPS 3 through 8 unidirectional (blade or
rimmed) LTM
