SERIES 1500 LIQUID TURBINE METER
4.3.2 Piping recommendations

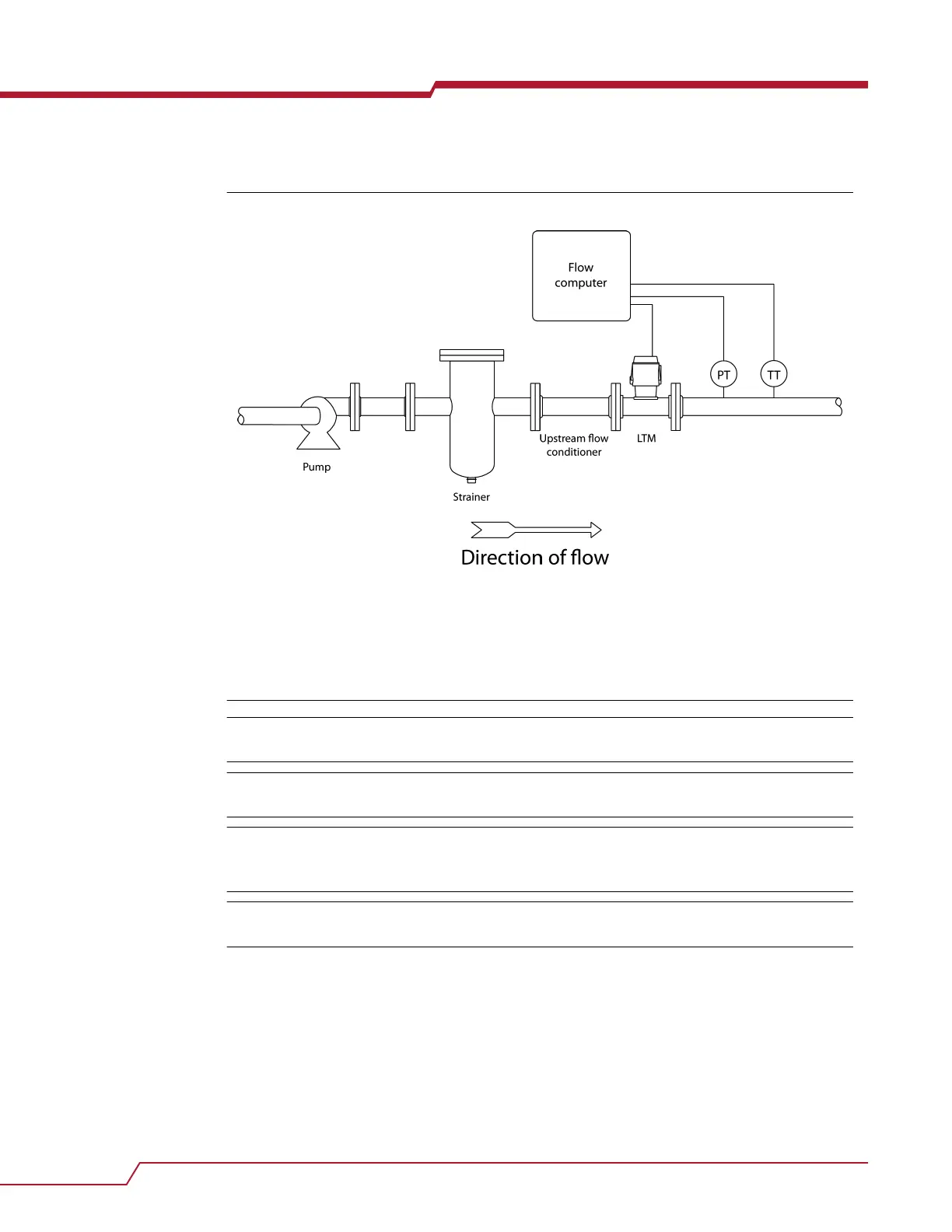

Figure 4-3: Typical installation for a Series 1500 LTM
Note the direction of flow indicated on the plate near the inlet flange and install
accordingly.
New installations: Flush lines thoroughly to rid piping of potentially damaging foreign
material such as welding bead, pipe scale, etc. before the turbine meter is placed into
service.
Important
A spool piece installed in place of the turbine meter is recommended for this procedure.
NOTICE
Comply with local government regulations and company requirements.
Important
Ensure that piping or other attachments connected to the turbine meter are not under
stress.
Important
Provide fire prevention measures and equipment per local regulations.
Prepare the turbine meter for use User manual
March 2019 P/N 3-9008-515
62 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
