USER MANUAL

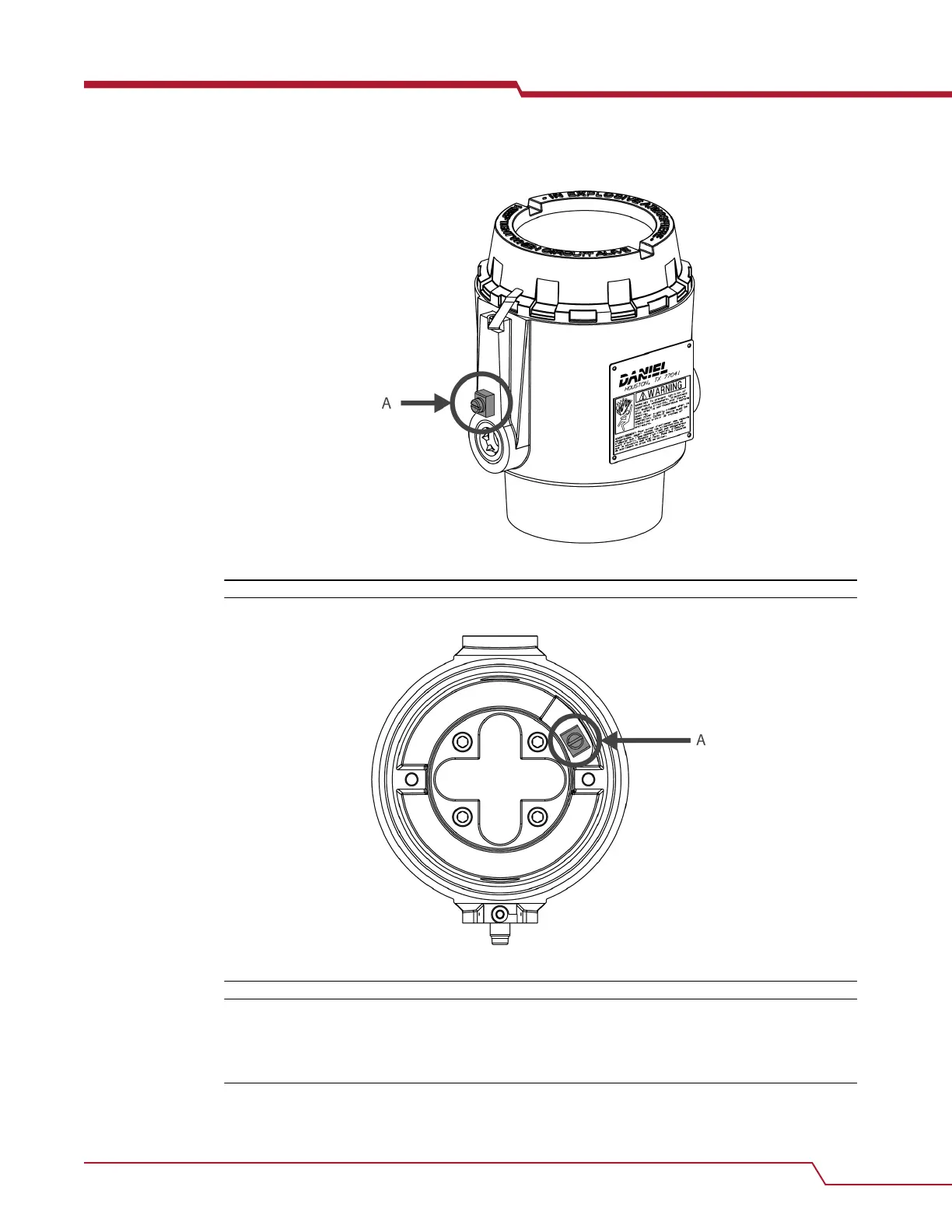

Figure 4-4: External ground lug
A. External ground lug
Figure 4-5: Internal ground lug
A. Internal ground lug
Important
Use the internal grounding terminal as the primary equipment ground. The external
terminal is only a supplemental bonding connection where local authorities permit or
require such a connection.
User manual Prepare the turbine meter for use
P/N 3-9008-515 March 2019
