SERIES 1500 LIQUID TURBINE METER

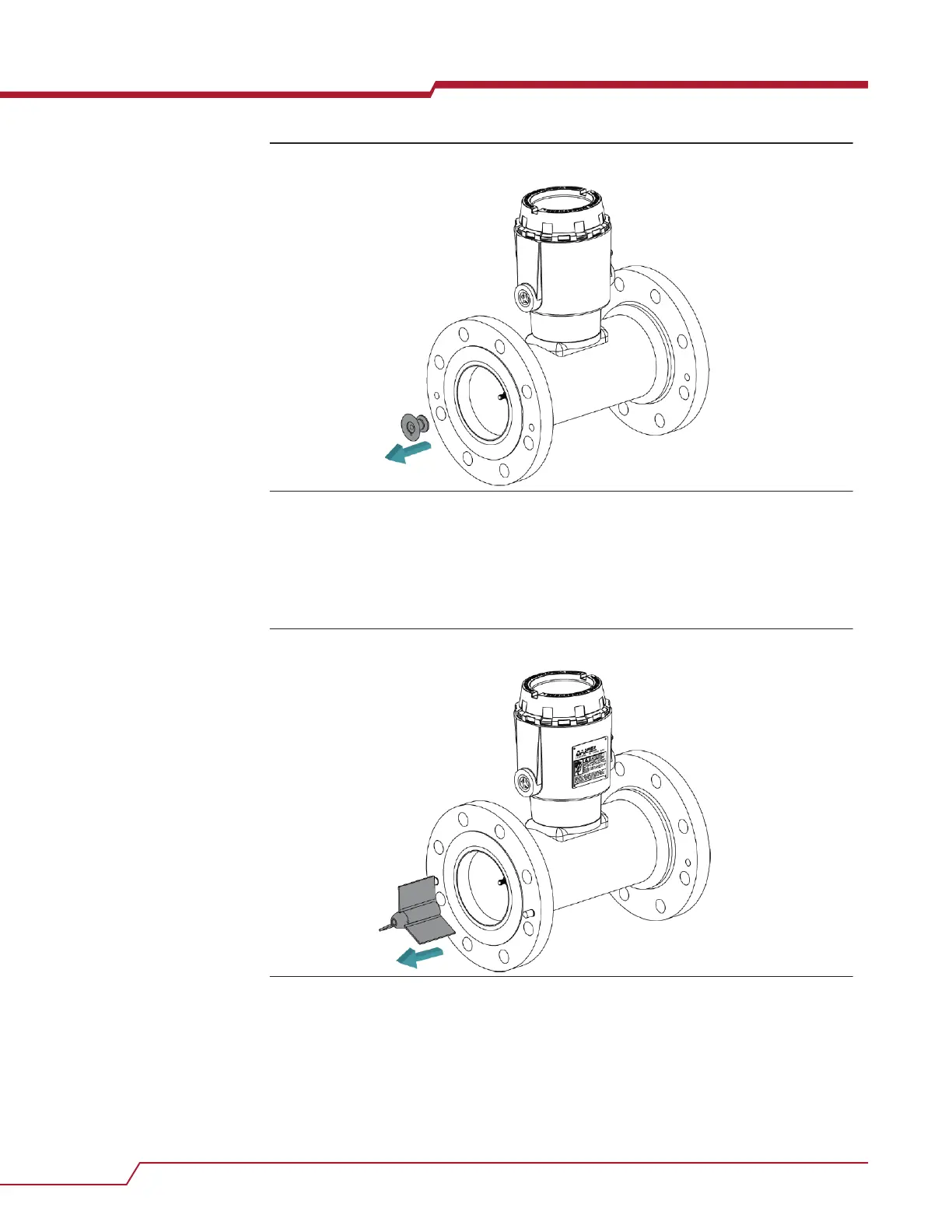

Figure 9-6: Upstream cone removal
7. Remove the upstream hanger assembly from the opposite end.
a) To do this you must insert a pin into the hole in the upstream hanger hub.
b) Insert the shaft from the downstream end and push the shaft against the pin.
c) Tap the shaft lightly to free the downstream hanger assembly.
Figure 9-7: Upstream hanger assembly removal
Planned maintenance User manual
March 2019 P/N 3-9008-515
90 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
