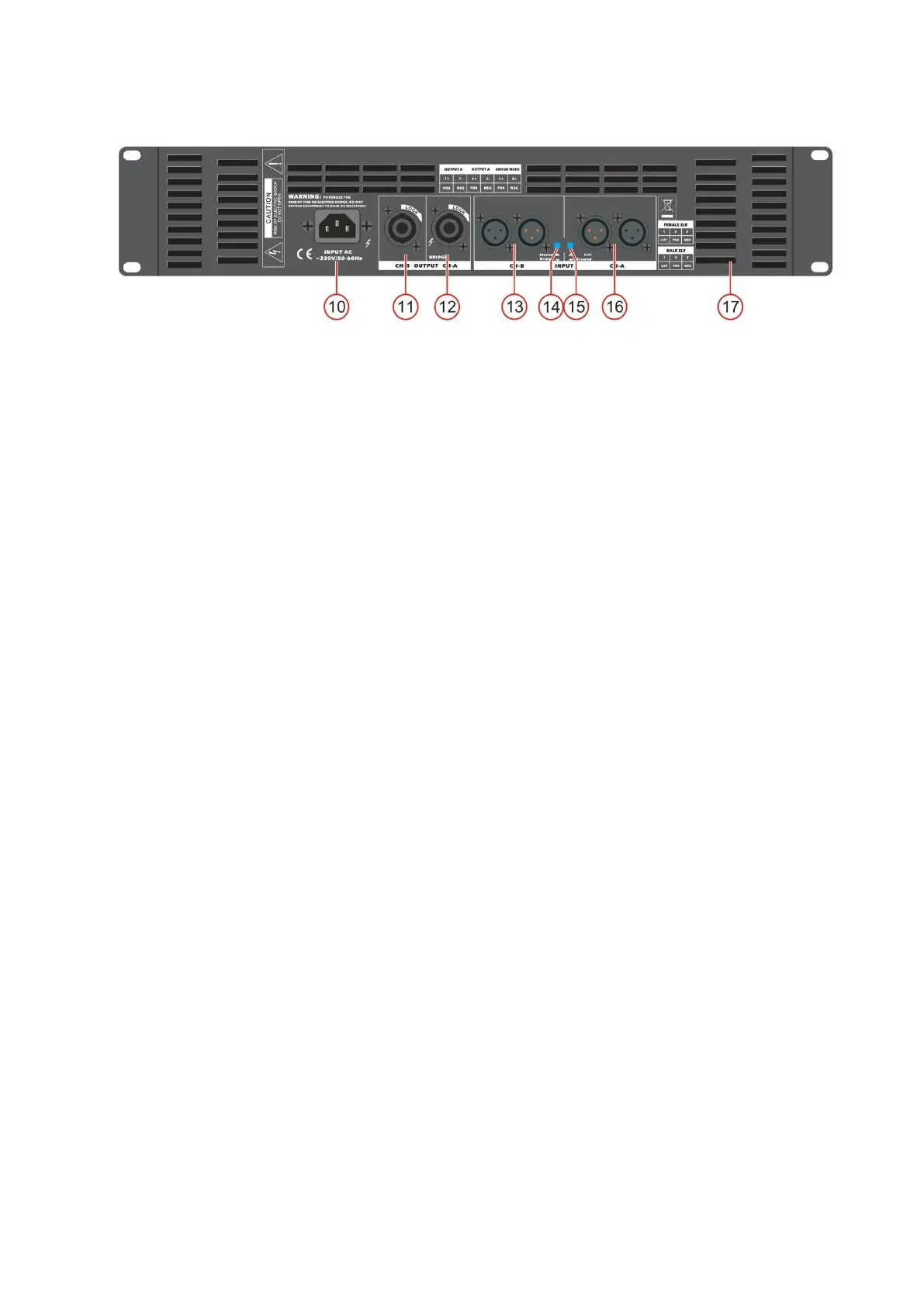

Backpanel
Fig. 3
10. AC Inlet.
This connector is meant for the connection of the supplied main cord. Connect one end of the
power cord to the connector, the other end to the mains, then turn on the power switch (9) to
operate the unit.
Note: Please make sure that the supply voltage matches the operation voltage before connecting
the unit to mains.
11. Output B Speakon Connector.
Using speakon-type speaker cables, make connections to both the channel A and channel B
connectors for Stereo or Parallel mode, to channel A connector for Bridged mono mode.
12. Output A Speakon Connector.
Using speakon-type speaker cables, make connections to both the channel A and channel B
connectors for Stereo or Parallel mode, to channel A connector for Bridged mono mode.
13. Channel B In/Through Connectors
Using speakon-type speaker cables, make connections to both the channel A and channel B
connectors for Stereo or Parallel mode, to channel A connector for Bridged mono mode.
14. Stereo/ Bridge Switch.
The two-position, Mode Select switch (located on the rear panel) configures the amplifier for
either Stereo or Bridged Mono Mode.
15. GND Switch.
To eliminate ground loops, put the switch in "OFF" position.
16. Channel A In/Through Connectors
Using speakon-type speaker cables, make connections to both the channel A and channel B
connectors for Stereo or Parallel mode, to channel A connector for Bridged mono mode.
17. Air cooling windows
This part is the air cooling window. Don't obstruct it.
