DARCHE ECLIPSE 270 - Opening

SET-UP
OPENING

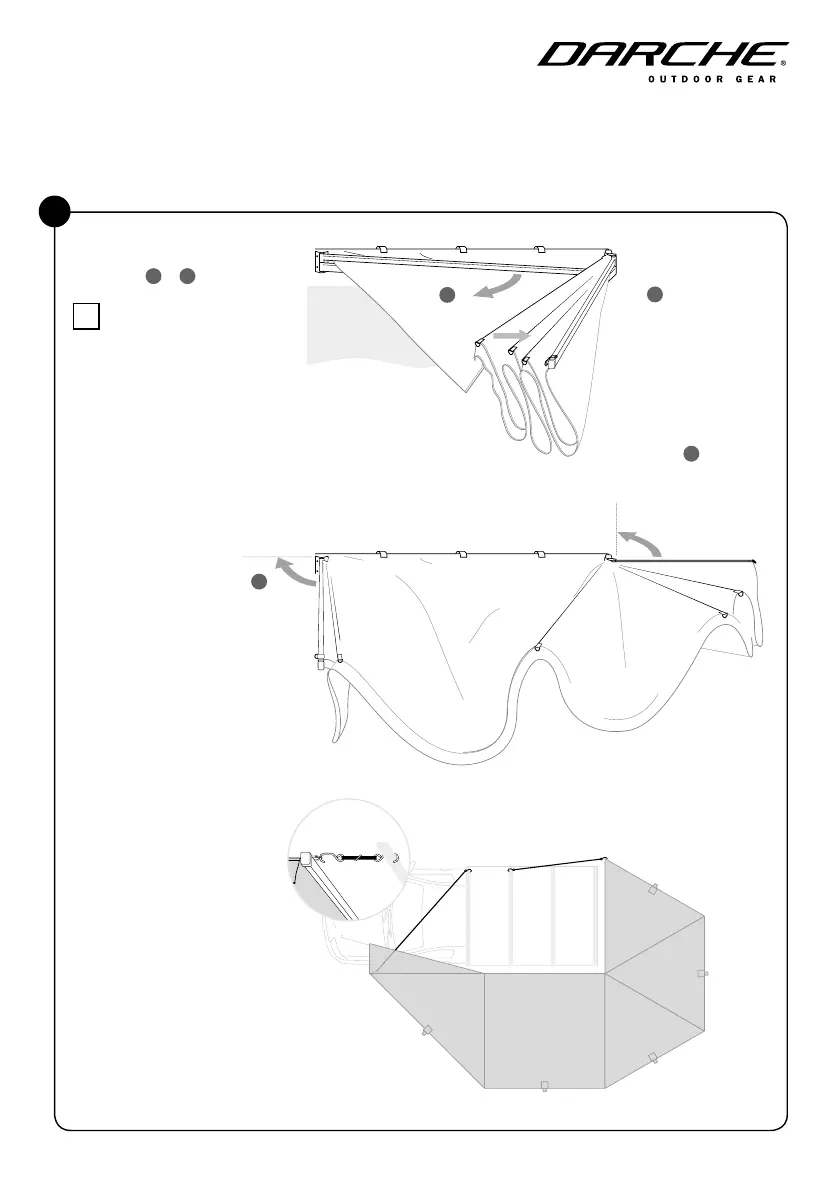

To begin setting up the awning
follow steps to
AWNING WILL SELF-
SUPPORT DURING
SET UP ONLY
5
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
SWING OUT
RIGHT ARM TO 90°
SWING OUT
LEFT ARM FULLY
SWING OUT LEFT ARM
FULLY AND ATTACH
TO ROOF RACK USING
SUPPLIED TENSION
STRAP
1
2
SWING OUT RIGHT
ARM FULLY TOWARD
REAR OF VEHICLE
AND ATTACH TO ROOF
RACK USING SUPPLIED
TENSION STRAP
4
3
STRAP ARMS TO
ROOF RACK
41
TIP
