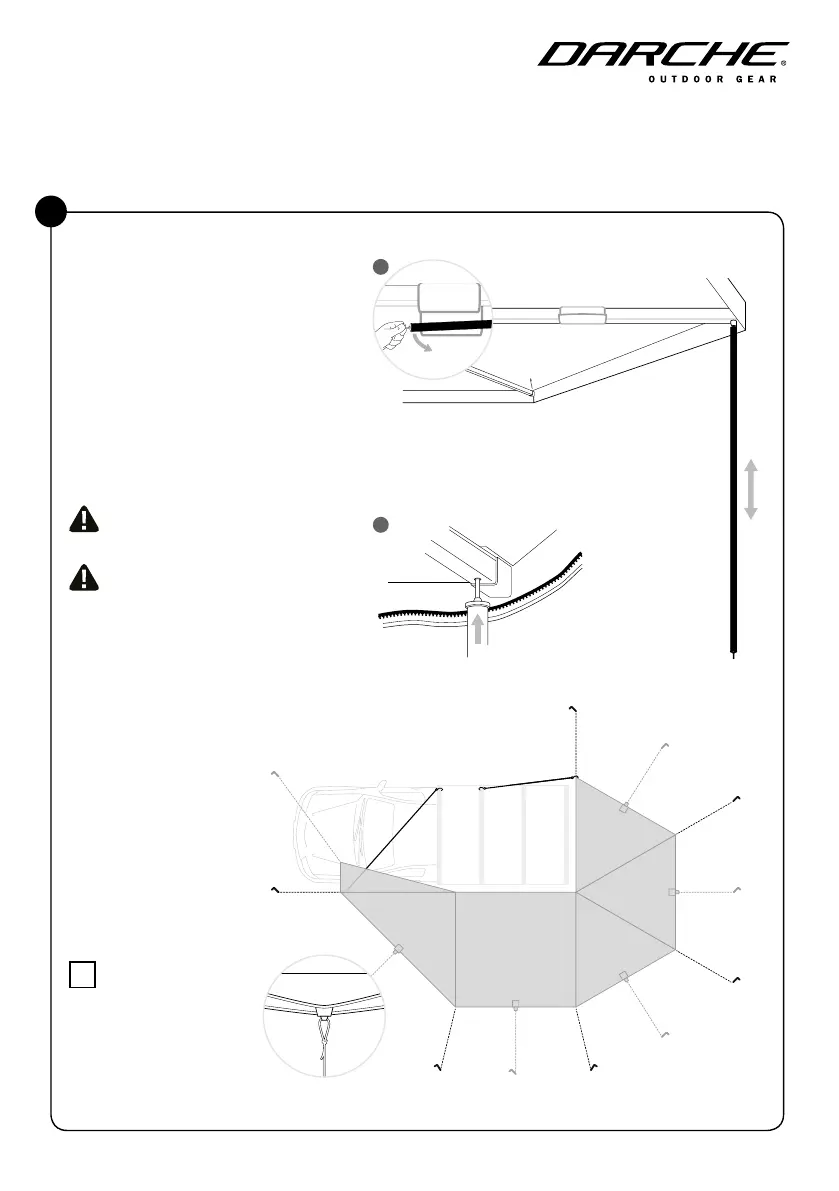

SET-UP
POLE SET-UP
• Undo the Velcro straps securing
each support leg. Leg will pivot
down to a vertical position. Adjust
to desired height by unlocking
and locking the internal twist
locking mechanism.
• Attach 3 x additional support
poles to 3 x remaining rafters
by inserting spigot into holes
at end of rafter.
• Secure the end of each rafter by
anchoring and tensioning guy
ropes.
ENSURE ALL GUY ROPES
ARE SECURED.
IF ATTACHING OPTIONAL
WALLS, EACH RAFTER
MUST MUST BE
SUPPORTED BY A LEG
POLE.
6
ECLIPSE 270° AWNING
SET-UP & CARE INSTRUCTIONS
1
4
2
IN CASE OF RAIN,
LOWER THE SUPPORT
LEGS TO ALLOW
DOWNWARD SLOPE
AND GUY OFF BETWEEN
RAFTERS TO FORM
VALLEYS FOR WATER
RUN-OFF.
