10
Flash programming
O
OO
Off
ffff
ff
off
offoff
off
flash(2Hz)
flash(2Hz)flash(2Hz)
flash(2Hz)

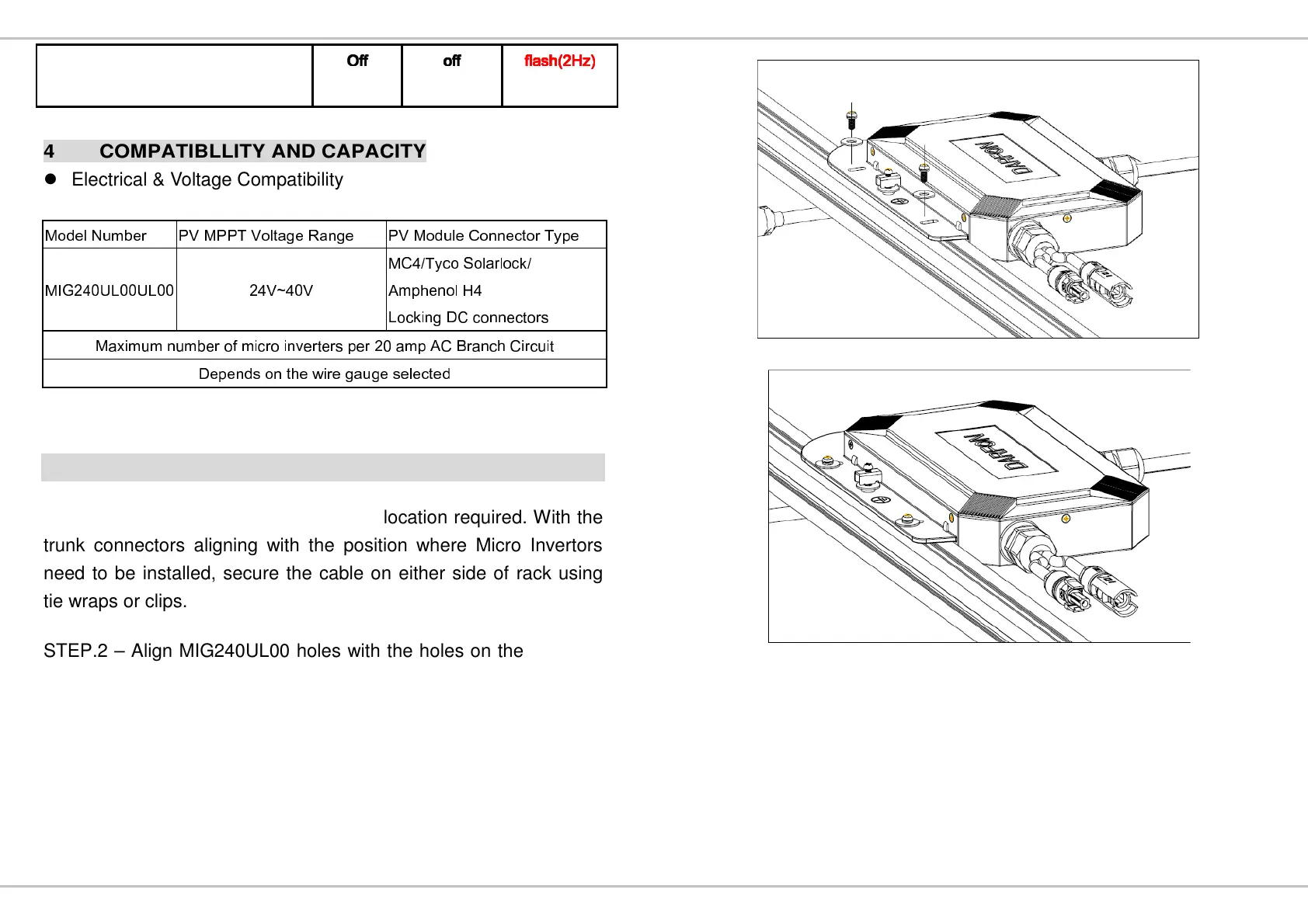

4 COMPATIBLLITY AND CAPACITY
Electrical & Voltage Compatibility
Model Number PV MPPT Voltage Range PV Module Connector Type
MIG240UL00UL00
24V~40V
MC4/Tyco Solarlock/
Amphenol H4
Locking DC connectors
Maximum number of micro inverters per 20 amp AC Branch Circuit
Depends on the wire gauge selected
5 INSTALLATION PROCEDURE
STEP.1 – Lay out the trunk cable at the location required. With the
trunk connectors aligning with the position where Micro Invertors
need to be installed, secure the cable on either side of rack using
tie wraps or clips.
STEP.2 – Align MIG240UL00 holes with the holes on the rack and
tighten the screws properly.
11
STEP.3 – MIG240UL00 has a clip to hold the Grounding electrode
conductor. After spreading the grounding secure it with the clip
supplied with the unit.
