Water drain position for AutoLab TF systems
This section indicates the water drain position of AutoLab TF systems. Customer is suggested to arrange the drain pipe
follow by the diagram. Please notice the drain hole is only use when the dye solution bottle broken and leak liquid will be
drain out through the holes.

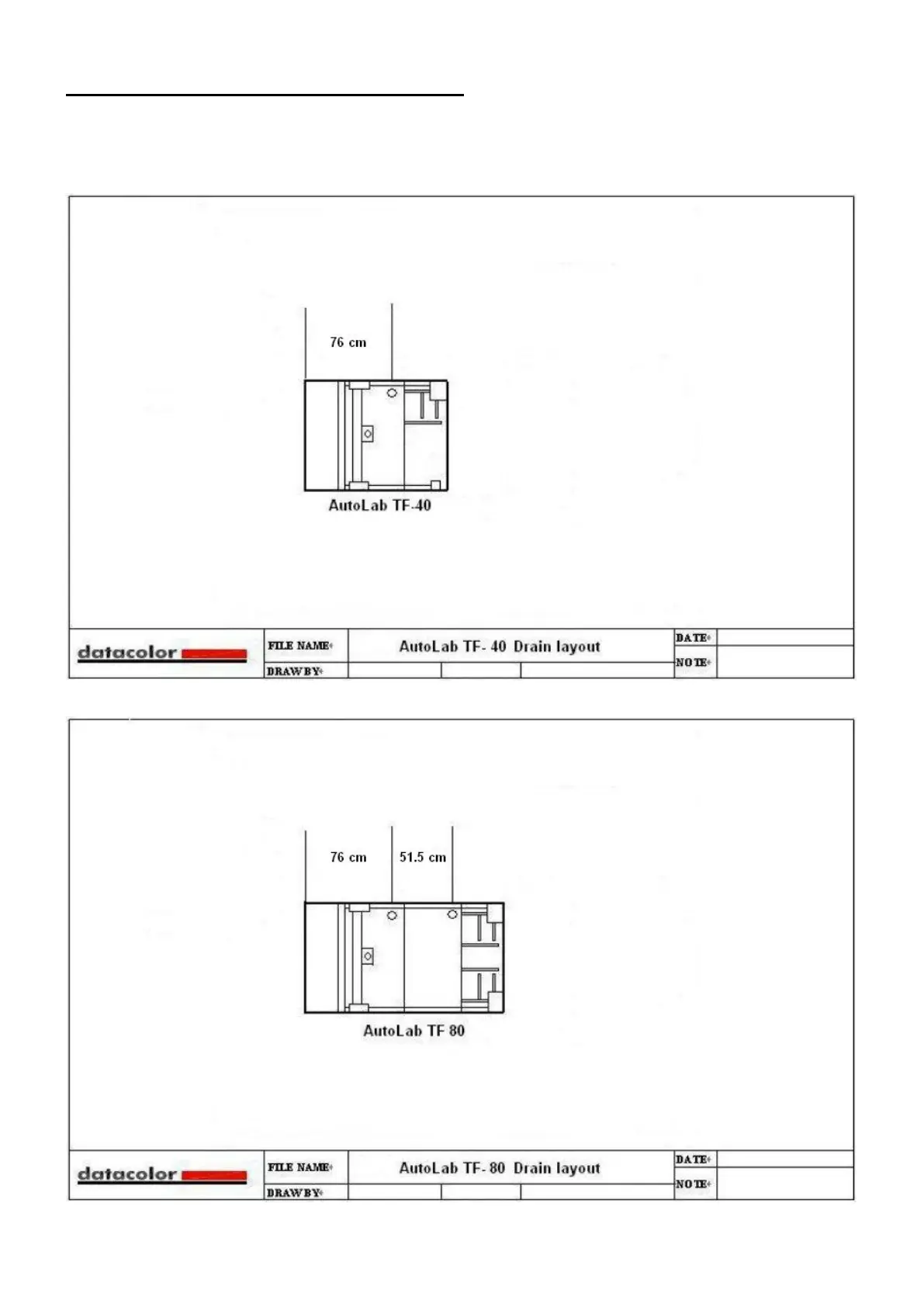

 Requirement for AutoLab TF-40 system
 Requirement for AutoLab TF-80 system
