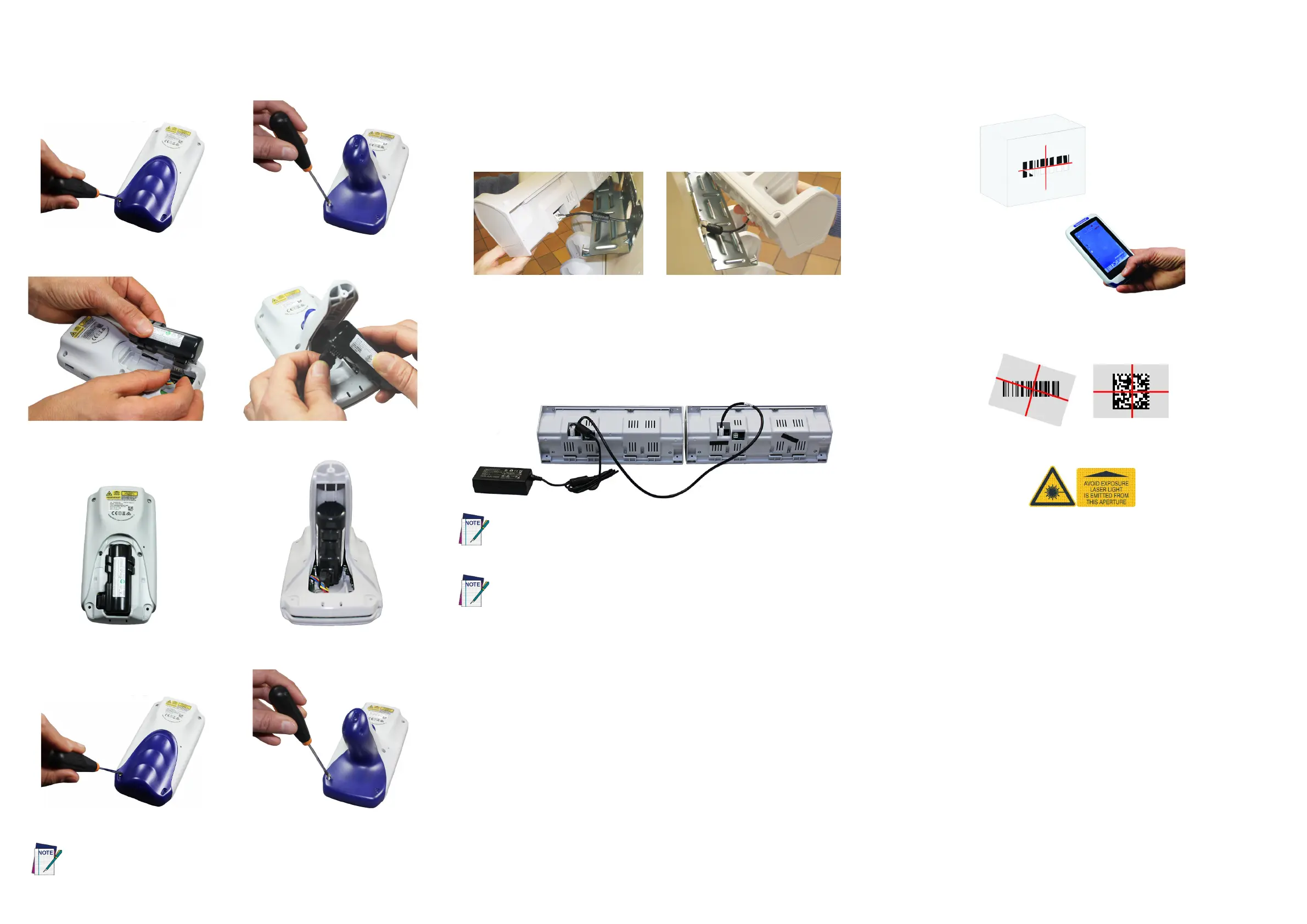

Battery Installation
To install the battery pack, follow the steps below:
1.
2.
3.
4.
NOTE
Required torque of the screws is 35 cNm.
Handheld Models
Pistol Grip Models
Handheld Models
Pistol Grip Models
Handheld Models
Pistol Grip Models
Handheld Models
Pistol Grip Models
Charging Instructions
The battery pack is not initially fully charged. After installing the battery, charge it with the 3-slot
cradle. The device needs to be inserted head down into the cradle.
There are two options to connect the cradle to the power supply: fast charge and standard charge.
Fast Charge
The fast charge connection allows to power one cradle with one power supply.
Plug the power supply cable into the power connector on the back of the cradle, then plug the power
supply into the AC/DC plug using a Datalogic power cable. Please see below an example of how to
insert the power supply cable through the wall mounting metal bracket:
Standard Charge
The standard charge connection allows to power two cradles with one power supply.
To connect a second cradle use the JOYA TOUCH Cradle Power Jumper, available as optional accessory
(P/N 91ACC0049).
1. Connect the first cradle to the second cradle using the power jumper.
2. Connect the power supply to the first cradle.
3. Plug the power supply into the AC/DC plug using a Datalogic power cable.
NOTE
Charge the battery for a minimum of 7 hours in standard charge and 3 hours in fast charge.
NOTE
For further information on the JOYA TOUCH 3-Slot Cradle, refer to the JOYA TOUCH 3-Slot
Cradle Quick Start Guide, included in the cradle’s box, and to the JOYA TOUCH 3-Slot Cradle
Installation Guide, downloadable from our website www.datalogic.com.
High Visibility
High Density
Scanning and Imaging
Imager Data Capture
Relative Size and Location of Aiming System Pattern
LINEAR BARCODE 2D MATRIX SYMBOL
