Portable Desktop Mounting
10
BC9600 BASE STATIONS

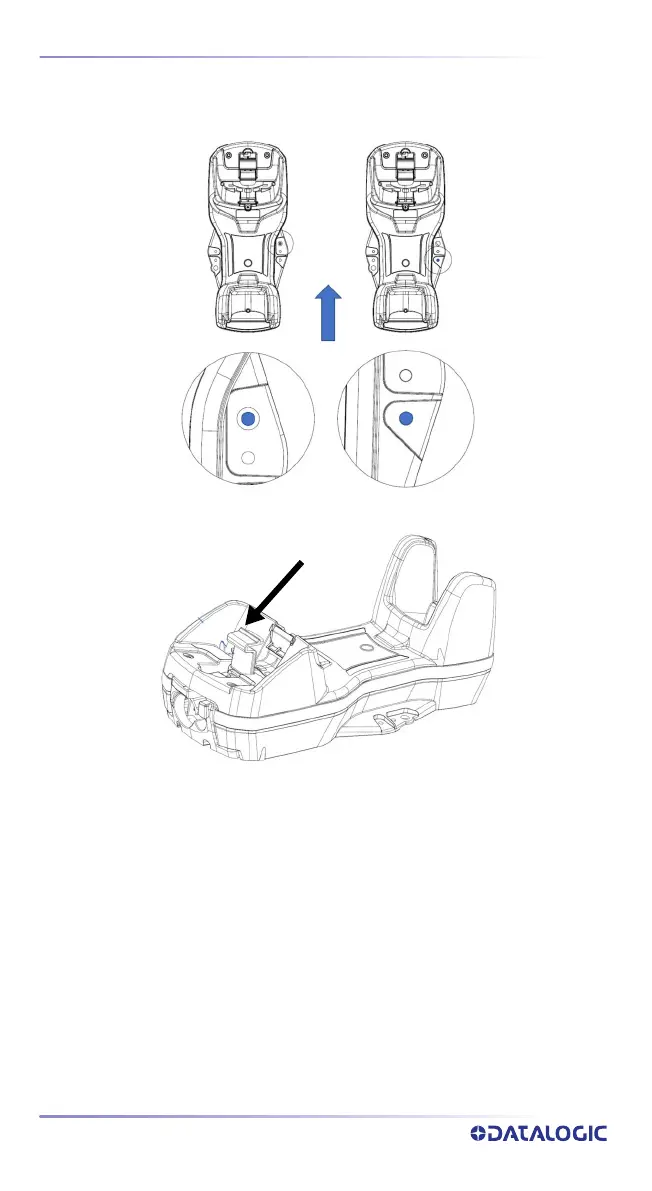

7. Move the base station up until the sphere is aligned with the smaller
hole, then lock the lever to secure the connection module.
Lock the lever
