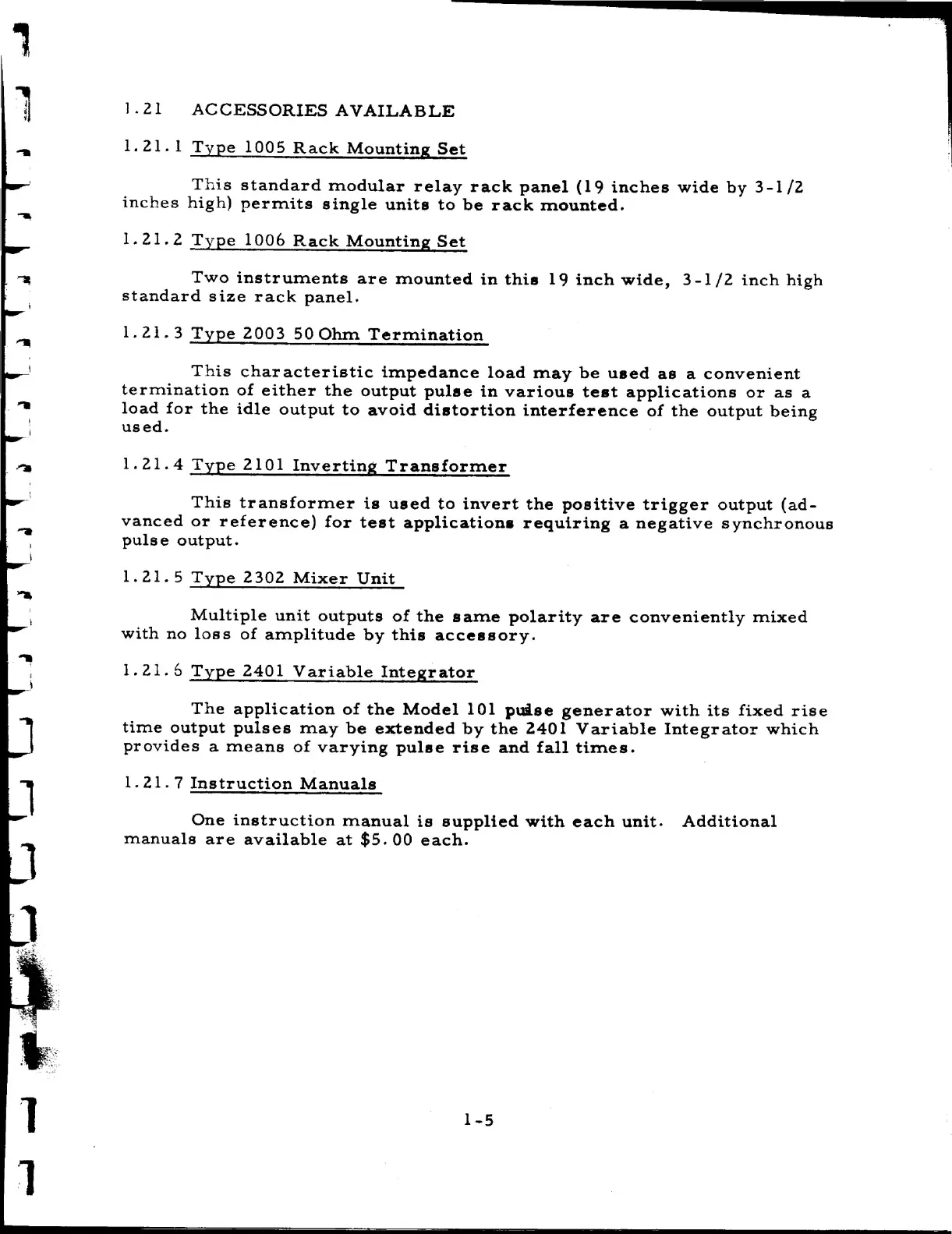

Datapulse 101 - Page 7

l
.21
ACCESSORIES
AVAILABLE
1.
21.1
Type
1005
Rack
Mounting
Set
This
standard
modular
relay
rack
panel
(19
inches
wide
by
3-1/2
inches
high)
permits
single
units
to
be
rack
mounted.
1. 21. 2 Type 1006 Rack Mounting Set
Two instruments are mounted in this 19 inch wide, 3-1/2 inch high
standard size rack panel.
1.21.3 Type 2003 50 Ohm Termination
This characteristic impedance load may be used as a convenient
termination of either the output pulse in various test applications or as a
load
for
the
idle
output
to
avoid
distortion
interference
of
the
output
being
us
ed.
1.21.4 Type 2101 lnverting Transformer
This transformer is used to invert the positive trigger output (ad-
vanced
or
reference)
for
test
applications
requiring
a
negative
synchronous
pulse
output.
1.21. 5 Type 2302 Mixer Unit
Multiple unit outputs of the same polarity are conveniently mixed
with no loss of amplitude by this accessory-
l.21. 6 Type 2401 Variable Integrator
The application of the Model 101 puise generator with its fixed rise
time output pulses may be extended by the 2401 Variable Integrator which
provides a means of varying pulse rise and [all times.
1.21.7 Instruction Manuals
One instruction manual is supplied with each unit. Additional
manuals are available at $5.00 each.
