2-22
Part No. 001-4008-101/102

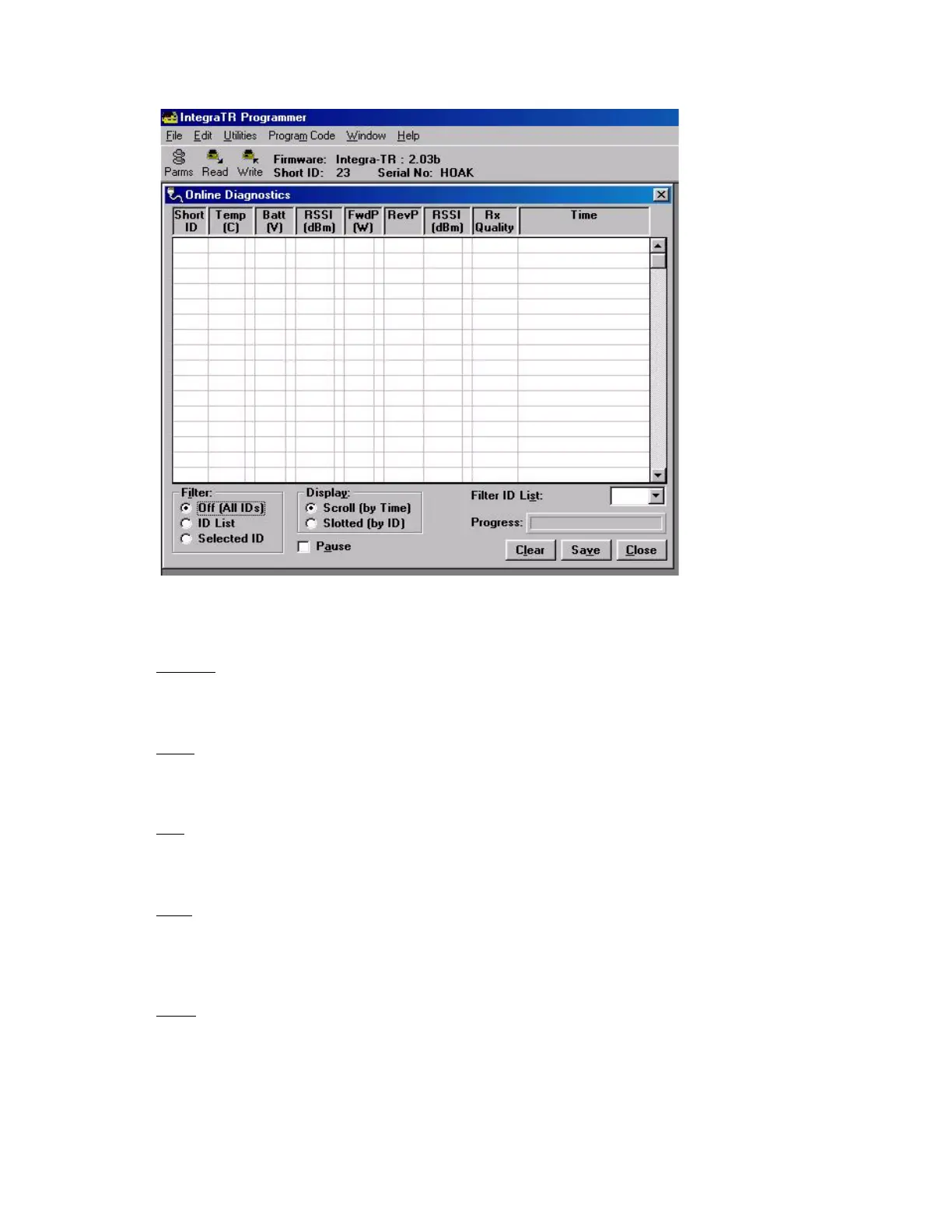

Figure 2-19 Online Diagnostics
The following Online Diagnostics are available:
Short ID
The Short ID displays the Short ID of the unit transmitting the diagnostics.
Temp
Temp displays the internal case temperature (in Celsius) of the unit transmitting the diagnostics.
Batt
Batt displays the supply voltage (in volts) of the unit transmitting the diagnostics.
RSSI
RSSI displays the RSSI (in dBm) ID of the unit transmitting the diagnostics. This is the RSSI sampled
during the last transmission the unit received.
FwdP
FwdP displays the forward power (in watts) of the unit transmitting the diagnostics.
