2-27
Part No. 001-4008-101/102
Rx / Tx Frequency
Rx / Tx Frequency shows the current transmit frequencies.
F5
Pressing the F5 key will cause the unit to transmit on the programmed transmit frequency.
F6
Pressing the F6 key will cause the unit to go to receive on the programmed receive frequency.
2.4.14 ASCII / Hex Terminal
Terminal Screens allow the user to select an ASCII or Hexadecimal Terminal Screen for the Primary and
Secondary COM Ports (configured in the Port Settings screen - see Section 2.4.3) Data is sent according to
the port configuration set up in the Port Settings screen.

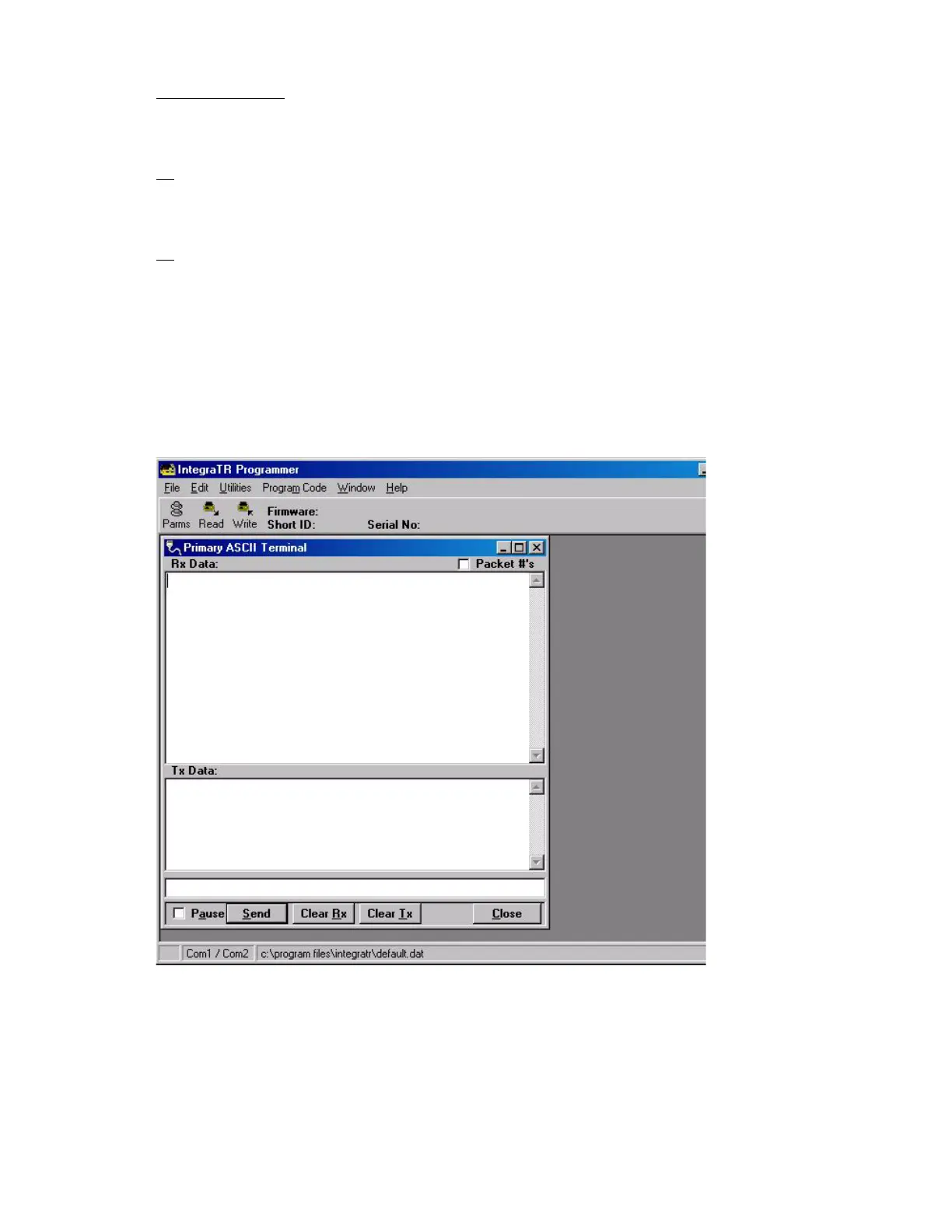

Figure 2-22 ASCII Terminal Screen
