Connecting the BCS53
At the BCS53 connectorboard four connectors can be found:
Name Type In/ Out Description
CTRL 6.3mm stereo
jack
Out Connector for a telephone active and a ringer indicator
TEL. LINE XLR-M In & out Subscriber line
PHONE XLR-F In & out Connection for an additional phone
INSERT 6.3mm stereo
jack
In & out Insert: possibility for effect equipment
Technical description
CTRL Ext. Off-hook and ringer active outputs. 12Vdc, 1W max
To connect a ringer and a telephone-line active indicator.
Multiple BCS53(T) ringer outputs can be linked together to combine the ringer active
signal.
TEL. LINE Default subscriber line: input level: -21 ... 0 dBm, Impedance: 600 Ohm
To connect the analogue subscriber line.
PHONE Default subscriber line: input level: -21 ... 0 dBm, Impedance: 600 Ohm
To connect an additional phone. This can be used to dial a telephone number.
INSERT Level: 0dBm, Impedance 10 kOhm
Effect equipment can be connected to the insert connector.
Filters:
Input filter: 300 Hz ... 3 kHz, 18dB/octave
Output filter: 300 Hz ... 3 kHz, 18dB/octave
S= com
R= stop
T= start

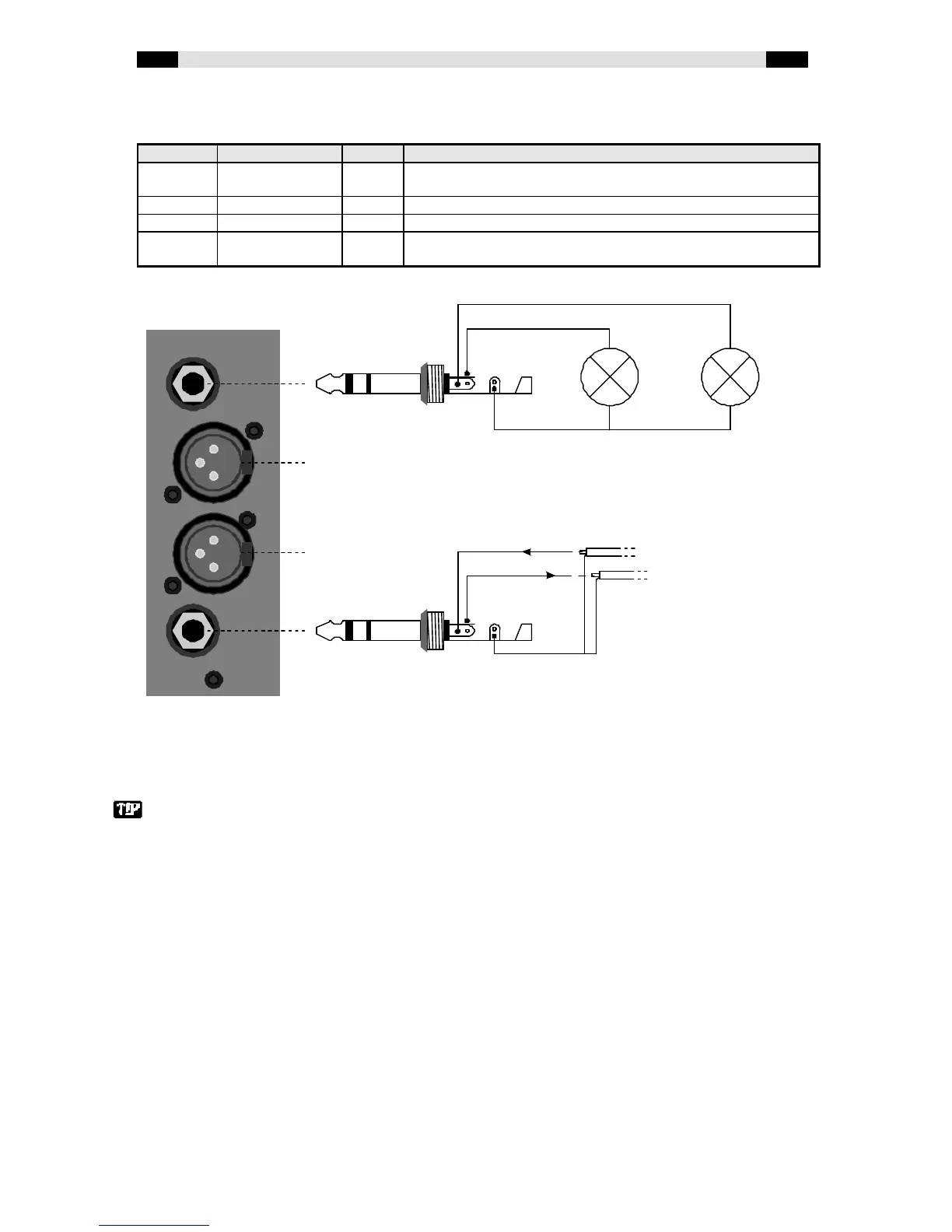

CTRL
TEL. LINE
PHONE
S= gnd
R= lamp 2
T= lamp 1
BCS50
INSERT
1= n.c.
2= a
3= b
tip
gnd
Insert send
Insert return
ring
ring
tip
Off-hook Ringer
TEL. Line:
PHONE
Pen 1: -
Pen 2: Telephone A
Pen 3: Telephone B
Pen 1: -
Pen 2: Telephone A
Pen 3: Telephone B
