Connecting DATEQ Silence detector user manual
3

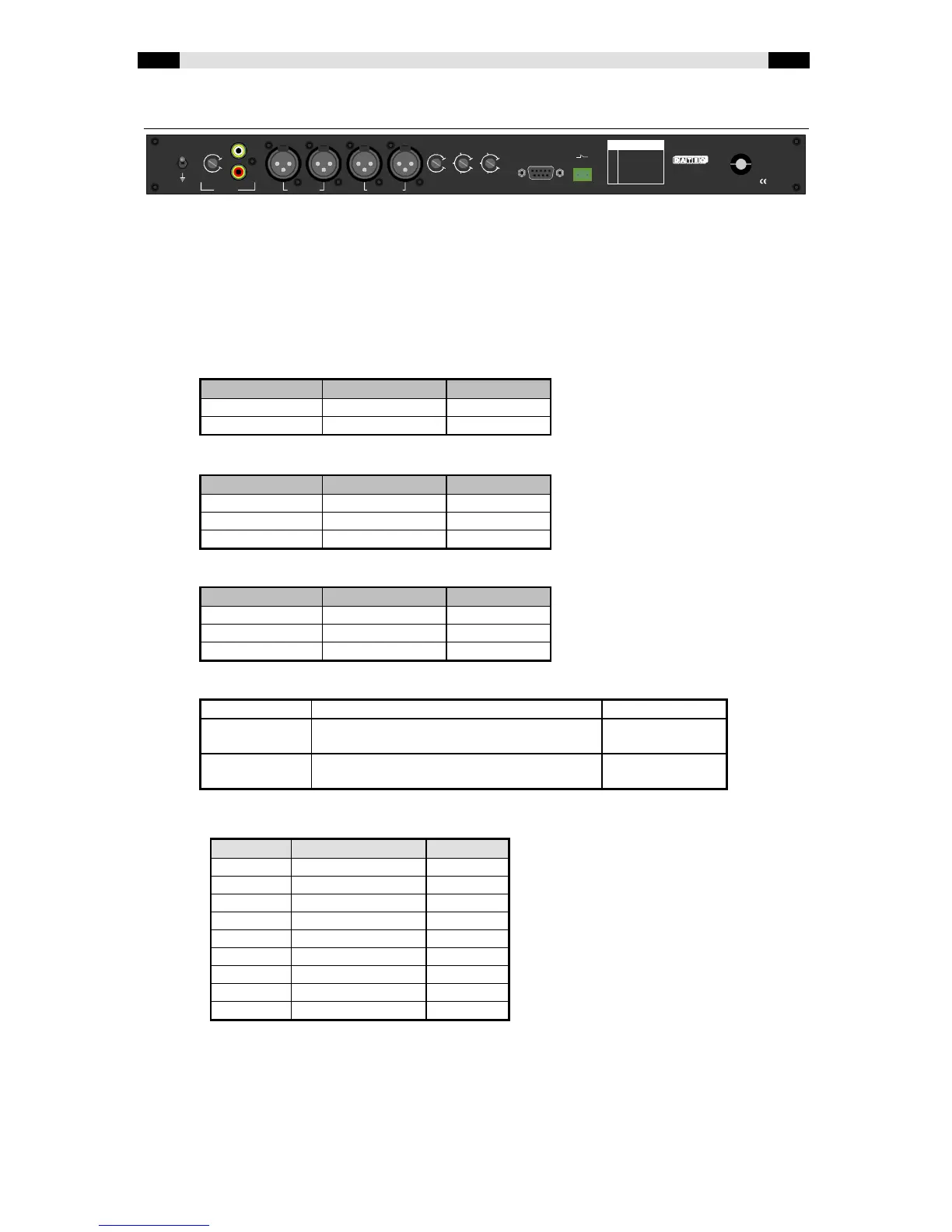

Connecting
The tables below show the various connections.
Ground Lift
Switch to make the outputs floating with respect to the earth. When the switch is pushed downwards
the outputs ground will be linked to the frame.
Input Level
Gain-preset for the backup-input. Range +/-12dB.
Backup input (2x cinch)
Main input (2x XLR-F)
Main output (2x XLR-M)
Function of the trimmers
Output Optocouplers connector
Maximum rating: 25V / 50mA
Alarm Relay
Solid state relay output. The backup-devices main supply can be switched on and off with this output.
Maximum rating: 230V/ 2A.
Backup
L
R
Main input Main output
LLRR
Trigger
InputGround
Start End
level
levelLift
delay delay
connectorrelay
minmin
maxmax
sec
sec
60 60
3030
0 0
1515
45 45
Output
Alarm
Output connector
Pen Function
1
Stop -
2
Start -
3
Alarm 2 -
4 Alarm active -
5
6 Stop +
7 Start +
8 Alarm 2 +
9 Alarm active +
Mains
230V/ 50Hz/ 15W
2000
WARNING: Dangerous voltages inside. To be opened only by authorised people
230Vac/ 2A
Silence detector
SD1
Pin Function Type
Tip Audio + In
Shield Audio GND GND
Pin Function Type
1 Audio GND GND
2 Audio + In
3 Audio - In
Pin Function Type
1 Audio GND GND
2 Audio + Out
3 Audio - Out
Trigger level
no-audio detection sensitivity -25 .. -70 dBu
Start Delay
Time between no-audio detection and
backup-start
0 .. 60 sec.
Stop Delay
Time between audio detection and
backup-stop
0 .. 60 sec.
Pin Function Type
1 Stop - Out
2 Start - Out
3 Backup fail - Out
4 Alarm - Out
5 NC
6 Stop + Out
7 Start + Out
8 Backup fail + Out
9 Alarm + Out
