When
fitting
the
bearing
to
the
beaTIng
hub
for
the
dlllphragm
type
pressure
plate
the
pressure
must
be
applied
to
the
outer
race
of
the
throw
out
beanng
Unless
thIS
procedure
IS
adhered
to
the
bearing
WIll
be
damaged
and
WIll
have
to
be
replaced
9
Hold
the
throw
out
lever
In
a
Vice
and
fit
the
throw
out
beanng
and
retaining
spnng
DUST
EXCLUDER
Clutch
7
10
Fit
the
lever
to
the
pivot
pin
and
secure
With
the
retalnmg
spnng
II
Instal
the
rubber
dust
excluder
ensunng
that
It
IS
correctly
located
In
the
bell
housmg
I2
Instal
the
gearbox
and
bell
hOUSing
assembly
to
the
vehicle
13
AdJust
the
clutch
throw
out
lever
free
travel
to
the
clearance
gIven
In
the
speCification
section
RELEASE BEARING

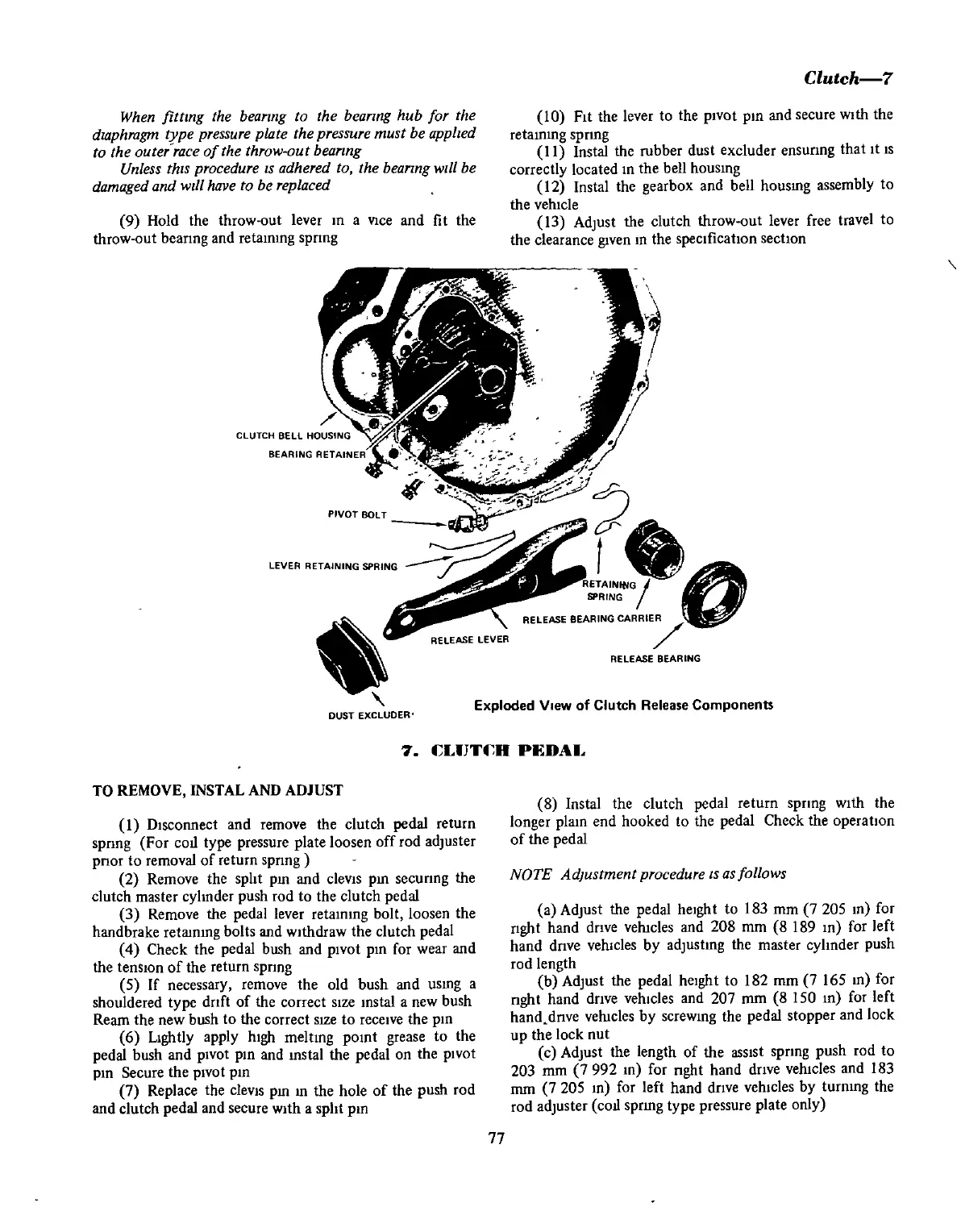

Exploded
V
ew
of
Clutch
Release
Components
7
CLlJTCH
PEDAl
TO
REMOVE
INSTAL
AND
ADJUST
I
Disconnect
and
remove
the
clutch
pedal
return
spnng
For
coil
type
pressure
plate
loosen
off
rod
adJuster
pnor
to
removal
of
return
spnng
2
Remove
the
spht
pin
and
cleVIS
pin
secunng
the
clutch
master
cylinder
push
rod
to
the
clutch
pedal
3
Remove
the
pedal
lever
retalnmg
bolt
loosen
the
handbrake
retamlng
bolts
and
withdraw
the
clutch
pedal
4
Check
the
pedal
bush
and
piVOt
pm
for
wear
and
the
tensIOn
of
the
return
spnng
5
If
necessary
remove
the
old
bush
and
uSing
a
shouldered
type
dnft
of
the
correct
Size
Instal
a
new
bush
Ream
the
new
bush
to
the
correct
sIZe
to
receive
the
pin
6
Lightly
apply
high
melting
pOint
grease
to
the
pedal
bush
and
piVOt
pin
and
Instal
the
pedal
on
the
piVOt
pin
Secure
the
piVOt
pin
7
Replace
the
cleVIS
pin
In
the
hole
of
the
push
rod
and
clutch
pedal
and
secure
With
a
spht
pin
8
Instal
the clutch
pedal
return
spnng
With
the
longer
plain
end
hooked
to
the
pedal
Check
the
operatIOn
of
the
pedal
NOTE
Adjustment
procedure
IS
as
follows
a
AdJust
the
pedal
height
to
183
mm
7
205
In
for
nght
hand
dnve velucles
and
208
mm
8
189
In
for
left
hand
dnve
veluc1es
by
adJusting
the
master
cylinder
push
rod
length
b
AdJust
the
pedal
height
to
182
mm
7
165
In
for
nght
hand
dnve
vehicles
and
207
mm
8
150
m
for
left
hand
dnve
velucles
by
screwing
the
pedal
stopper
and
lock
up
the
lock
nut
c
AdJust
the
length
of
the
aSSIst
spnng
push
rod
to
203
mm
7992
In
for
nght
hand
dnve vehicles
and
183
mm
7
205
In
for
left
hand
dnve
vehicles
by
turnIng
the
rod
adJuster
coil
spring
type
pressure
plate
orily
77
