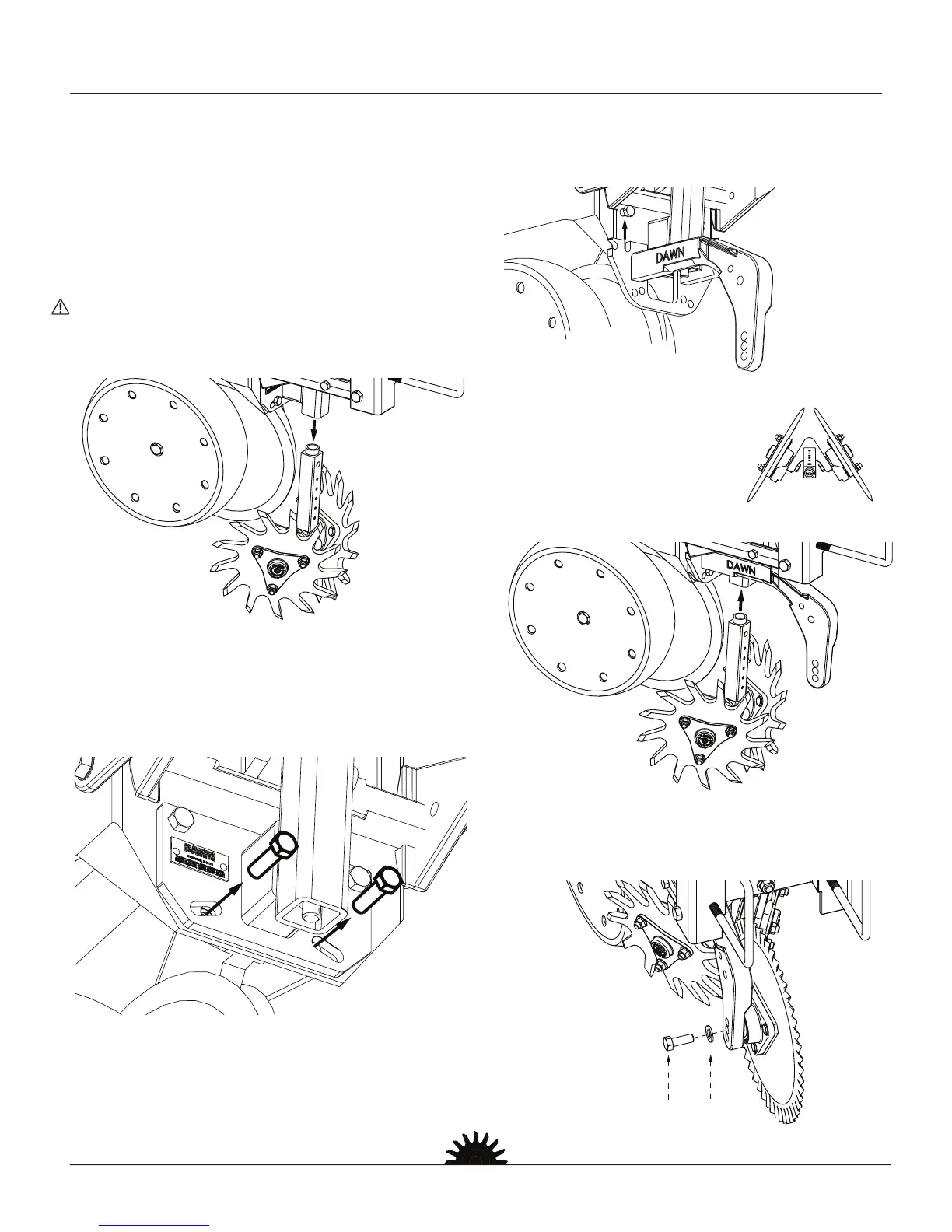

Slide your 1500 coulter bracket onto your Trashwheel
mount bolts and secure by inserting lower faceplate bolts.
Tighten all 4 bolts at this time.
Align and install Trashwheels.
Attach coulter by inserting 5/8”-11x1.75” HHCS through
washer, 1500 arm, and into coulter hub.
1500 MOUNT ASSEMBLY INSTALLATION
NOTE Your Dawn 1500 add-on coulter attachment MUST match
your Dawn Trashwheel mount. For example, Trashwheel mount
1140-2sp3.25 MUST be mated with a 1500-3.25, etc.
Remove Trashwheels from mount by turning screw-adjust cap
in counter-clockwise direction.
CAUTION - To prevent accidents, make sure to support
the Trashwheel assembly so it does not fall when being
removed.
Remove the two bottom bolts of Trashwheel mount plate.
At this time you can also loosen the upper bolts of the
Trashwheel mount plate as well. You do NOT want to
completely remove the upper bolts!
1
2
INSTALLATION
4
5
3
NOTE For all coulter/Trashwheel
combinations (1500 and 1572)
using TWO Trashwheels, wheels
MUST be set in the rear stem
holes with formed strippers
pointing backwards.
