One-Piece Coupling with Crimp Location
Markings
Many couplings are provided with a knurl around the
circumference of the ferrule. This knurl can be used
for setting the length of the crimp on the coupling.
Looking down from the top of the die set, line up the
knurl with the top of the die.
Check for correct alignment of die set. Improper
seating or overlapping of dies will result in
damaged dies.
One-Piece Coupling without Crimp Location
Markings
Select the crimp length required from the Par
Crimp Specification Guide and mark the coupling
accordingly with a marking pen, pencil or scribe.
This mark is used for setting the length of the crimp
on the coupling.

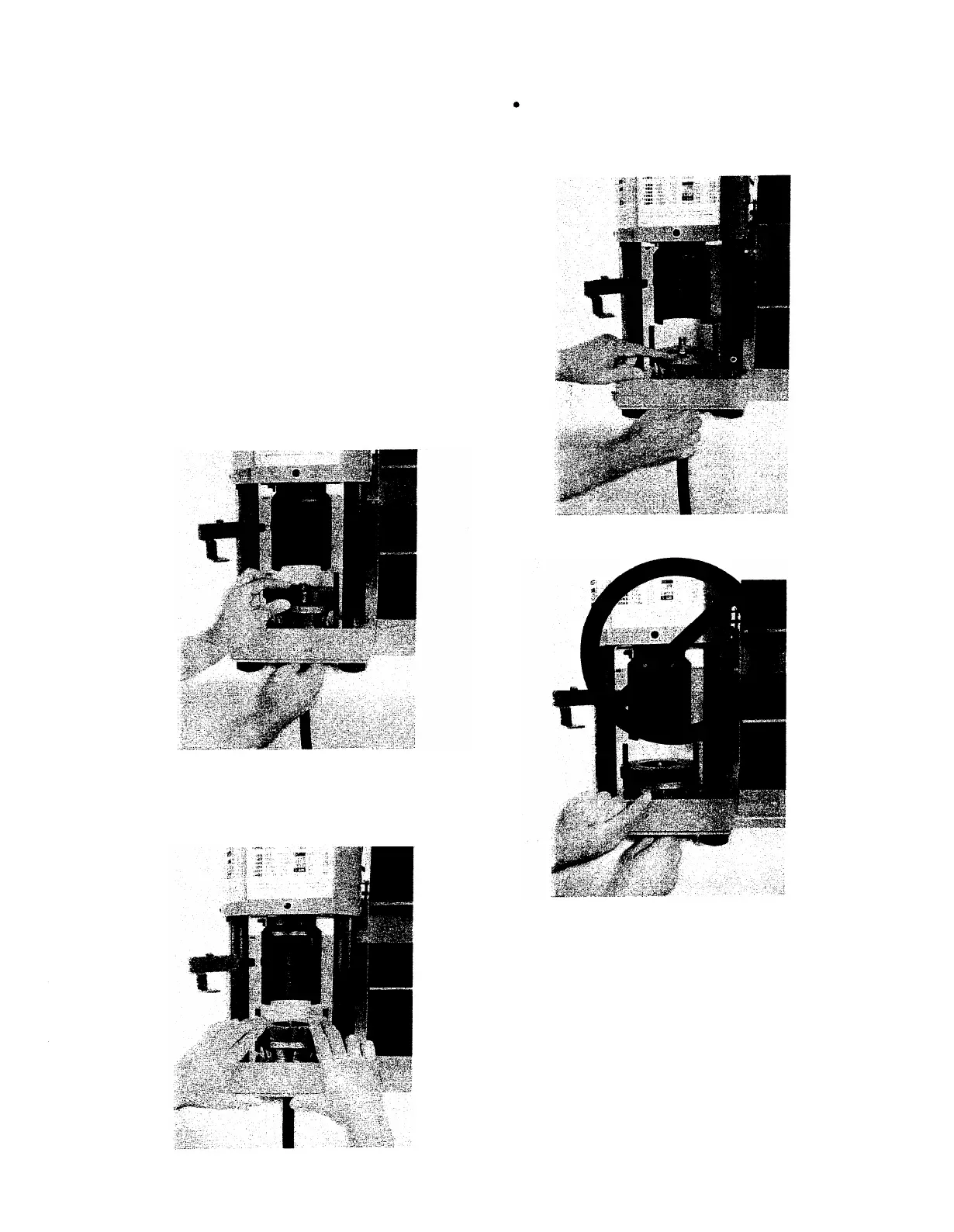

Looking down from the top of the die set, line up the
mark with the top of the die.
l
Position pusher plate on die set
YES
l
Seat die set in cone base by firmly pushing
downward on pusher plate
NO
l
Depress the “On” power button
l
Depress the “Start” button
l
Ram will engage pusher plate until
the crimp setting is reached
l
Pump will automatically shut off
l
Ram returns to
“Up”
position
l
Remove assembly
To Next Page
