19
Basic Statistics
Electrical System Statistics

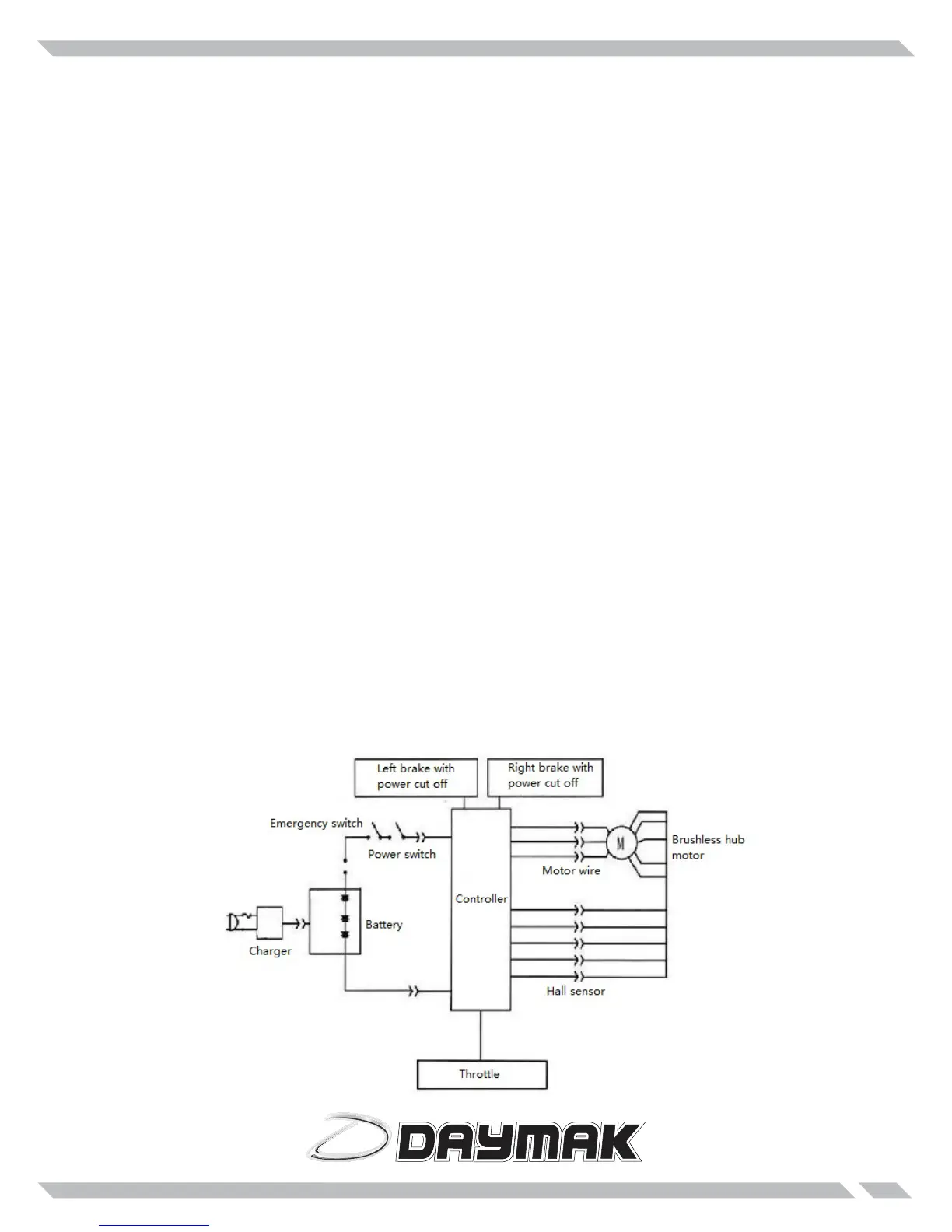

Wiring Diagram
Dimensions
Wheel Size: 3.0”x16”
Body Size: 187x52x115cm
Seat Height 75cm (29”)
Weight
65 kg without battery
80 kg with battery
Loading Capacity
Standard: 75 kg
Maximum: 150 kg
Speed and Mileage
Max. Speed: 32 km/h
Max. Mileage: 50 km
Motor Statistics
Rated Power: 500W
Voltage: 72V
Max. Climbing Angle: 15 degrees
Charger Statistics
Charger Input: AC 100 – 240V
Standard Input voltage: 110V
+/- 10%
Output: DC 48V, BM-online
Charger output voltage: 43.8 +/-
10%, 50Hz
Power Rated: 80W
Voltage Charge: 43.2 – 44.2V
Charge Current: 2.5A +/- 0.02A
Charge Time: 6-12 hours
Battery Statistics
Type: Sealed Lead Acid Battery
Voltage: 72V20AH
Battery Life: 300 charges
