Scooter Part Diagrams

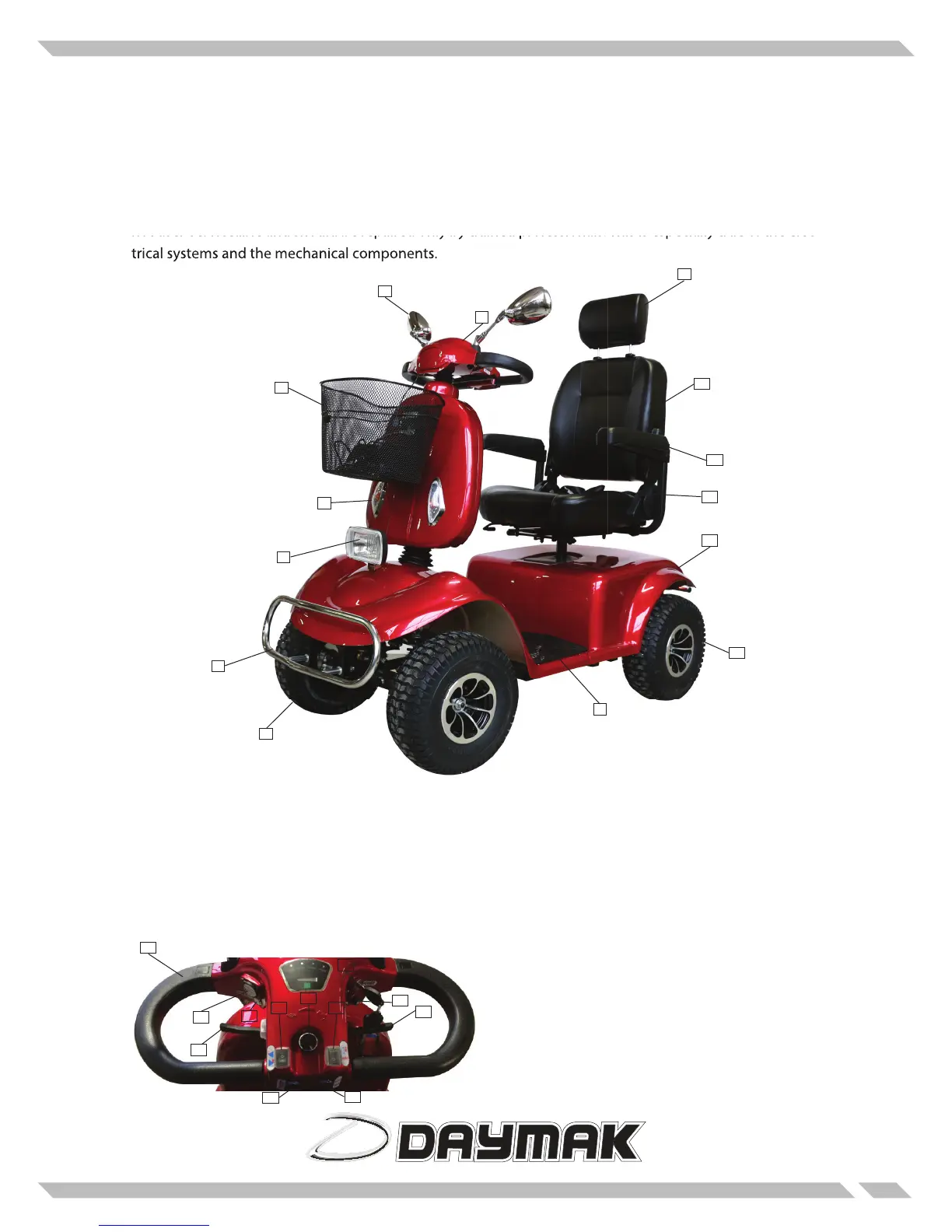

Diagram 1: The Boomerbuggy V Mobility Scooter
This diagram illustrates the various parts of your mobility scooter. Please note that many of these parts are
not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec-
trical systems and the mechanical components.
not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec-
trical systems and the mechanical components.
1
2
3
4
5
6
7
8
12
10
11
9
13
14
1. Mirror
2. Control Panel
3. Front Basket
4. Turn Signal
5. Head Light
6. Front Bumper
7. Tire
8. Floor Panel
9. Head Rest
10. Seat
11. Arm Rest
12. Taillight
13. Rear Tire
14. Seat Belt
15. Steering Handle
16. Charging Port
17. Free Wheel Switch
18. Reverse Lever
19. Turn Signal Switch
20. Speed Knob
21. Headlight Switch
22. Emergency Brake
23. Horn
24. Forward Lever
25. Fuse Box
26. Ignition
15
23
19
16
18
22
24
25
*Contact your dealer for info
on optional basket, windshield
and / or rear view camera.
20
21
17
25
