Daymak Kingston User Manual

5
Scooter Part Diagrams

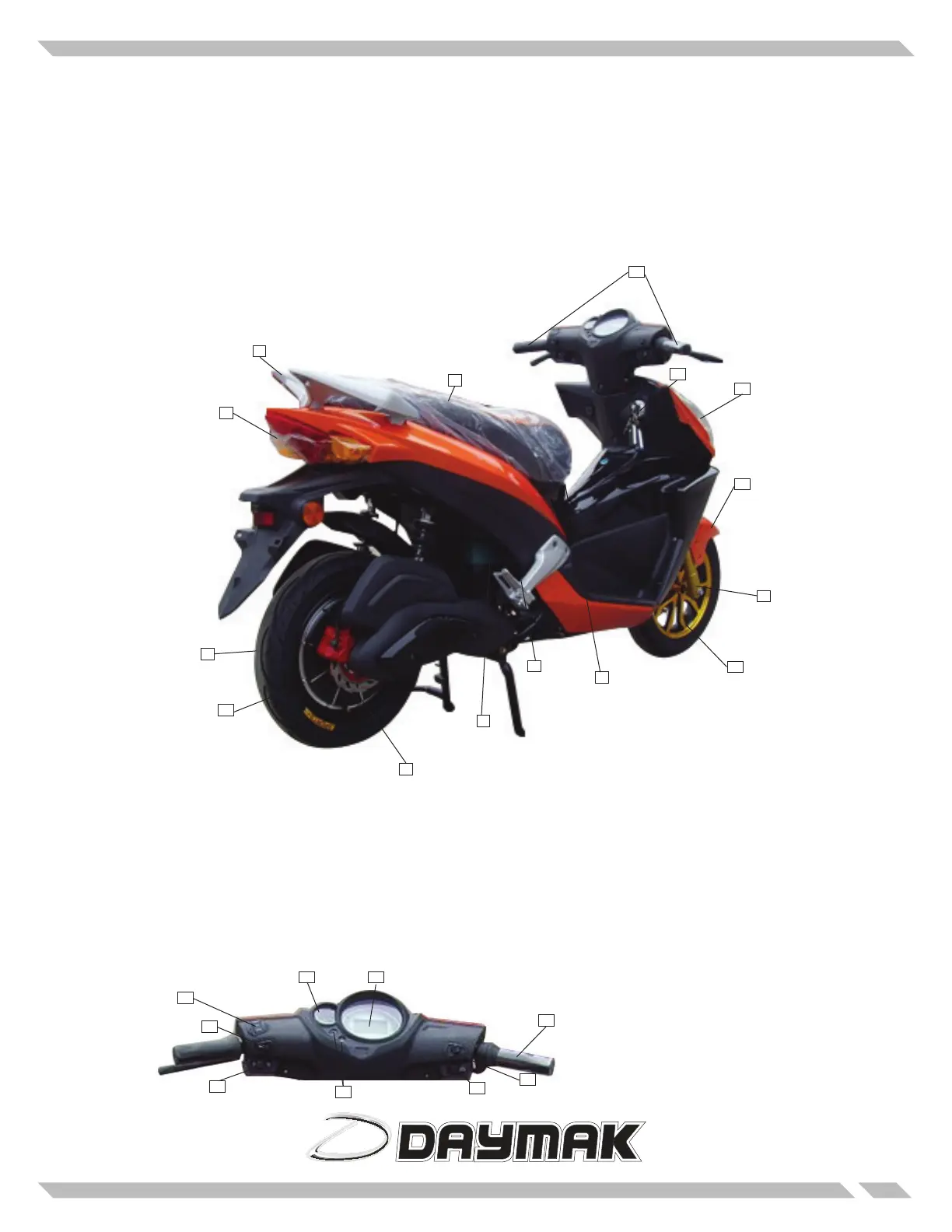

Diagram 1: The Kingston Electric Scooter
This diagram illustrates the various parts of your electric scooter. Please note that many of these parts are
not user-serviceable and should be repaired only by trained professionals. This is especially true of the elec-
trical systems and the mechanical components.
1
2
3
4
5
6
7
8
12
10
11
9
13
14
15
1. Seat
2. Rear Rack
3. Taillight
4. Rear Wheel
5. Hub Motor
6. Controller (inside)
7. Battery (inside)
8. Battery charger slot
9. Front Shock Absorber
10. Wheel Rims
11. Tire
12. Front Fender
13. Headlight
14. On / Off key switch
15. Handlebars
16. Horn
17. High / Low Beam
18. Turn Signal Switch
19. Battery Indicator
20. Signal Indicator
21. Digital Speedometer
22. ON / OFF Lights
23. Horn
24. Throttle
18
19 21
17
16
20
24
23
22
