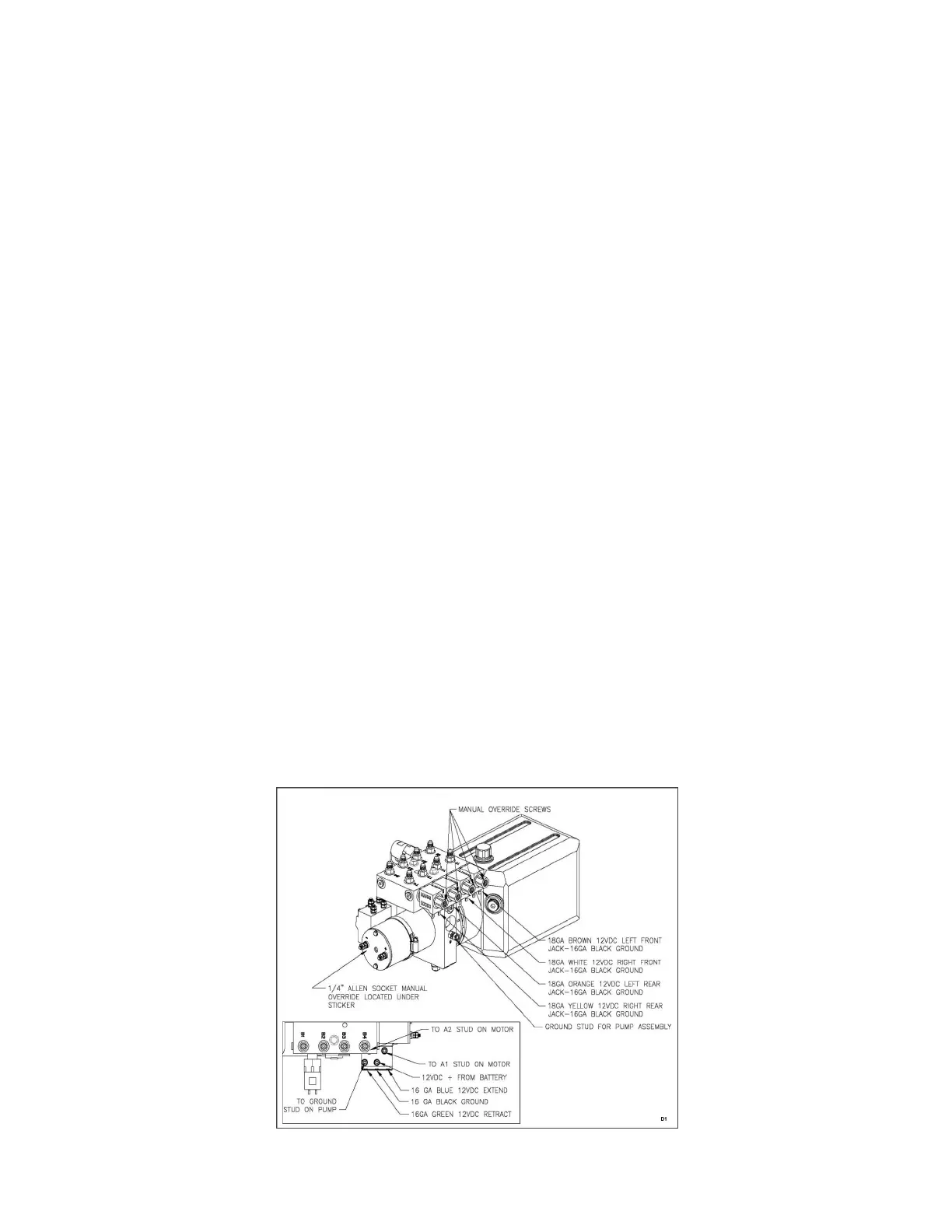

Power Connections for Pump # 2542KS
Power Connections for Pump # 3195KS
Attach a # 6 gauge wire (# 4 gauge if the run is over 12ft.) from the positive +12V terminal on the battery
to the + terminal on the motor solenoid. There will be a yellow fused wire on this terminal.
• This supply may be fused at the source with 100-amp circuit breaker.
• This +12v supply must be a dedicated and isolated circuit (not shared with other devices), and
must be constant, non-switched +12vdc.
Attach a # 6 gauge wire (# 4 gauge if the run is over 12ft.) between the negative -12v terminal on the
battery and the ground stud on the pump.
• This is the preferred method of grounding. If grounding the pump to the chassis, the connection
must be sound, free of paint and not susceptible to corrosion.
• The battery must be connected to the frame with # 4 gauge or larger wire. It is not acceptable to
allow the pump mounting bolts to be the sole grounding connection.
Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) from the positive +12V terminal on the battery
to the + terminal on the motor solenoid. There will be a yellow fused wire on this terminal.
• This supply may be fused at the source with a 150-amp circuit breaker.
• This +12v supply must be a dedicated and isolated circuit (not shared with other devices), and
must be constant, non-switched +12vdc.
Attach a # 4 gauge wire (# 2 gauge if the run is over 12ft.) between the negative -12v terminal on the
battery and the ground stud on the pump.
• This is the preferred method of grounding. If grounding the pump to the chassis, the connection
must be sound, free of paint and not susceptible to corrosion.
• The battery must be connected to the frame with # 4 gauge or larger wire.
