FIG 5
FIG 6
8
4. Re-tighten the 10mm fixing bolt. Refit the seat onto
your .
Do not have the seat set too high, you must
be able to place both feet firmly on the Scooter's floor
area. Stability will be reduced the higher your seat is
set on the mounting tube. Always take great care
when cornering, lean into the corner to achieve the
best stability from your Scooter.
The handlebar of your is designed to allow you to
position it in a comfortable driving position. It can be locked
into numberous positions or unlocked to move freely for
transportation.
The handlebar lock is operated by a black lever positioned
on the right hand side of the handlebar (see Fig 6, page 8).
To release the handlebar from a locked position pull the black
lever upwards, the handlebar will now move freely, but under
mild tension.
To lock the handlebar into a comfortable driving position,
simply push the black lever downwards until the handlebar is
locked firmly into position.
With the combination of the height adjustment together with
the handlebar movement, you should find a suitably
comfortable driving position.
Always make certain the handlebar locking lever is
fully down and the handlebar is securely clamped onto the
chrome support plates before driving your Scooter. To make
service adjustment of this part, refer to the Care and
Maintenance section of this manual.

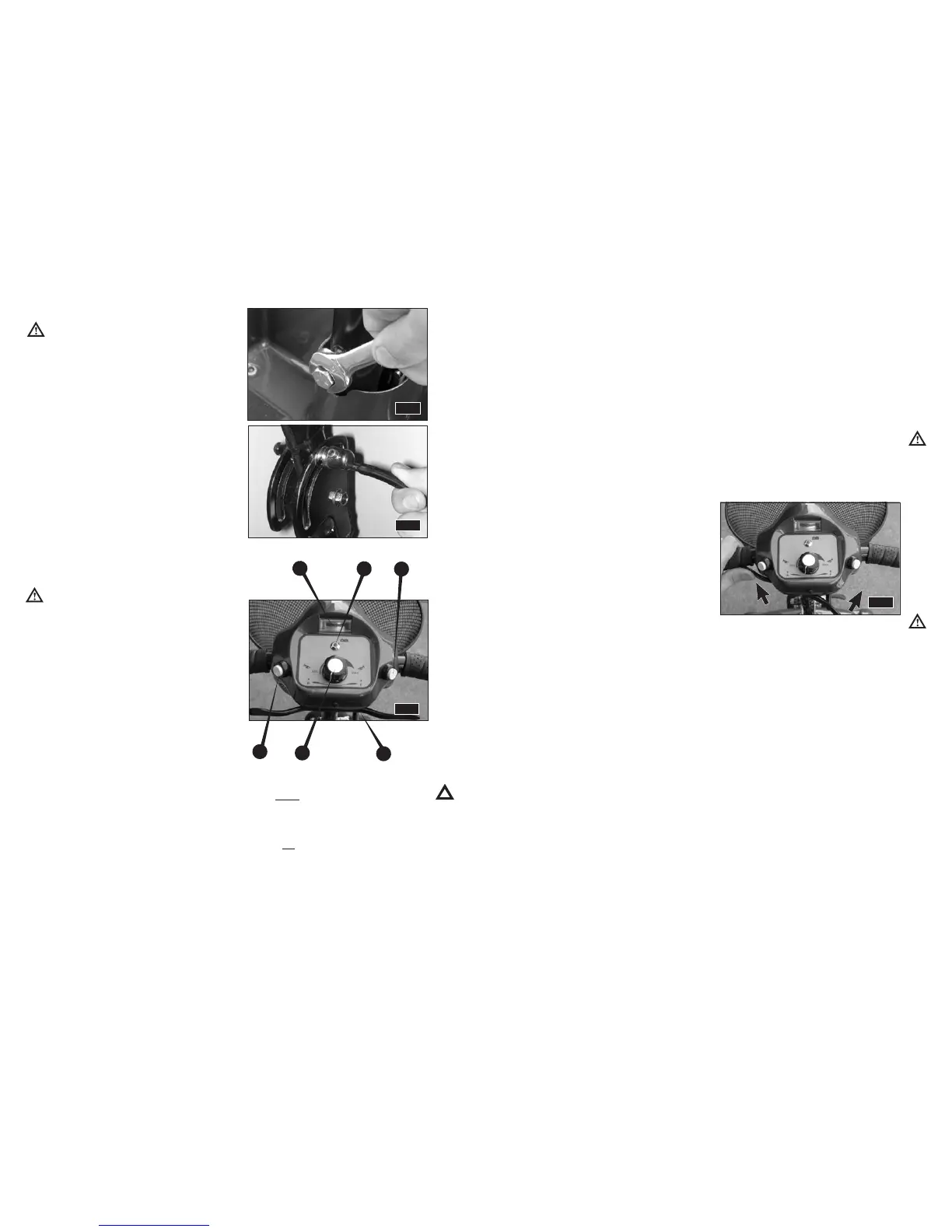

Your controls are located on the handlebar console (see Fig 7)
they are :
1. This allows you to pre-select your
desired top speed. The dial is proportional to speed and
can be set anywhere between minimum ('min') and
maximum ('max') increments. Turn the dial knob
anticlockwise to minimum for a very gentle operation, and
clockwise towards maximum to increase your speed.
When attempting to climb obstacles, you will need
to set the dial to a high setting. Remember the higher
position you set your speed dial to, the faster your Scooter
will travel.
2. (yellow). Sounds a polite warning signal.
3. Located at the lower right side of
the control console. Insert the key and turn clockwise. You
will note after a second the needle on the battery state
indicator moves towards the green sector and the green
status light illuminates. Your is now ready to drive.
To switch off your machine turn the key anticlockwise.
Remove the key when your vehicle is left unattended. Do
not attach heavy additional keys to your key ring, the weight
can damage the switch unit.
bootie
bootie
Speed Adjustment Dial:
NOTE:
Horn Buttons:
On-Off Power Switch:
bootie
Warning:
HANDLEBAR ADJUSTMENT
Warning :
CONTROL FEATURES
bootie
bootie
Speed
Adjustment Dial:
NOTE:
Horn
Buttons:
On-Off
Power Switch:
bootie
Warning:
HANDLEBAR
ADJUSTMENT
Warning
:
CONTROL
FEATURES
Caution : switch to 'off' when your is moving.
Failure to observe this warning will result in the motor brake
being applied suddenly and placing you in a dangerous
situation.
Do Not bootie
You should only switch 'off' when in motion in the case of
an emergency. Continual use in this mode may cause undue
stress to the drive system and damage the main electronic
speed control unit.
Be extremely cautious on slopes. Sit upright in your seat or
your machine could become less stable.
Caution :DoNot bootie
You
should only switch 'off' when in motion in the case of
an
emergency. Continual use in this mode may cause undue
stress
to the drive system and damage the main electronic
speed
control unit.
Be
extremely cautious on slopes. Sit upright in your seat or
your
machine could become less stable.
When you rest your with the electronics
switched 'on' you are using valuable battery power. Our
will automatically go into a sleep mode to preserve battery
energy after approximately 15 minutes, the battery indicator
and green status light goes off. To start your Scooter again
simply switch the key switch to 'off' and back to 'on' again,
your Scooter is now ready to go.
4. When you turn your on, the green
light on your console will illuminate at a constant rate.
The status light is connected to a very sophisticated
diagnostic system which can identify faults which could
occur on the main speed control system or some other
part of your Scooter's electronic drive system. For instance
if your batteries run low in power, the status light will flash
slowly at one flash a second; this indicates your batteries
need recharging.
If you notice the status light flashing at two flashes per
second, you are being notified that the battery voltage is too
low and you must stop using your Scooter at the earliest
opportunity. Your status light has nine similar flashing
diagnostic signals, reference to these diagnostic codes is
found under 'Fault Finding' at the rear of this manual.
5. Located at the top of your
console. When your Scooter is switched on, the needles on
the gauge will move across the scale from the left 'red'
sector towards the 'green' sector, indicating the state of
charge in your batteries. As the power is used up in your
batteries the needle will move towards the red sector
indicating the state of charge at that precise time. When the
needle is fully over to the right (green sector), the batteries
are fully charged. When the needle falls towards the red
sector your batteries are losing power, but you will still have
power to spare. When the needle falls into the red sector
your batteries are low in power and need to be re-charged,
although you will still have approximately half-an-hours
normal flat pavement driving in reserve. It is not
recommended to use this power regularly as it will shorten
battery life. It is wise to re-charge your batteries when the
needle enters the red zone (see Batteries and Battery
Charging section of this manual).
Sleep Time: bootie
bootie
Status Light: bootie
Battery Condition Indicator:
bootie
NOTE : When driving up
a slope or similar obstacle your motor will be
working hard, the battery gauge will move into the red
sector, it will return towards the green sector once the load
on your motor is reduced, this does not indicate low
batteries.
's
Sleep Time: bootie
bootie
Status
Light: bootie
Battery
Condition
Indicator:
bootie's
Warning: If you are not an accomplished outdoors powered
vehicle driver, we strongly recommend that you first practice
in an open, safe area, free from traffic, preferably with a
who can assist you.person
Warning:
person
FIG 8
9
Reverse
Forward
2
On-Off Power
Switch
5
Battery Condition
Indicator
4
Status
Light
Speed
Adjustment Dial
2
Horn
7
Horn
1
3
FIG 7
FORWARD, REVERSE CONTROL LEVER (Wig wag)
Warning:
Located under the handlebar grips (Fig 8). Your speed for
forwards and reverse motion and braking is controlled here.
The right thumb lever moves your in a forwards
direction and also controls the rate of speed by the
proportional amount of pressure applied. The left thumb
lever moves the in a reverse direction and controls
the rate of speed by the pressure applied. The lever when
released will return itself, and you will gently stop. You will
note that you can obtain the reverse of this procedure by
pulling the levers backwards with your thumb.
Do not hang bags etc over the steering handlebars
which could interfere with the movement of your control
lever. Failure to observe this warning could put you in a
dangerous situation.
Your approved distributor can modify your
vehicle for left-hand forward operation use.
bootie
bootie
Note : Days
FORWARD, REVERSE CONTROL LEVER (Wig wag)
Warning:
bootie
bootie
Note
: Days
