Assembly
Functions
Lever
Foot
Pedal
Pedal Lock
Roller
Handle
Swivel
Caster
Right
Arm
Left
Arm
Locking
Swivel
Caster
Roller

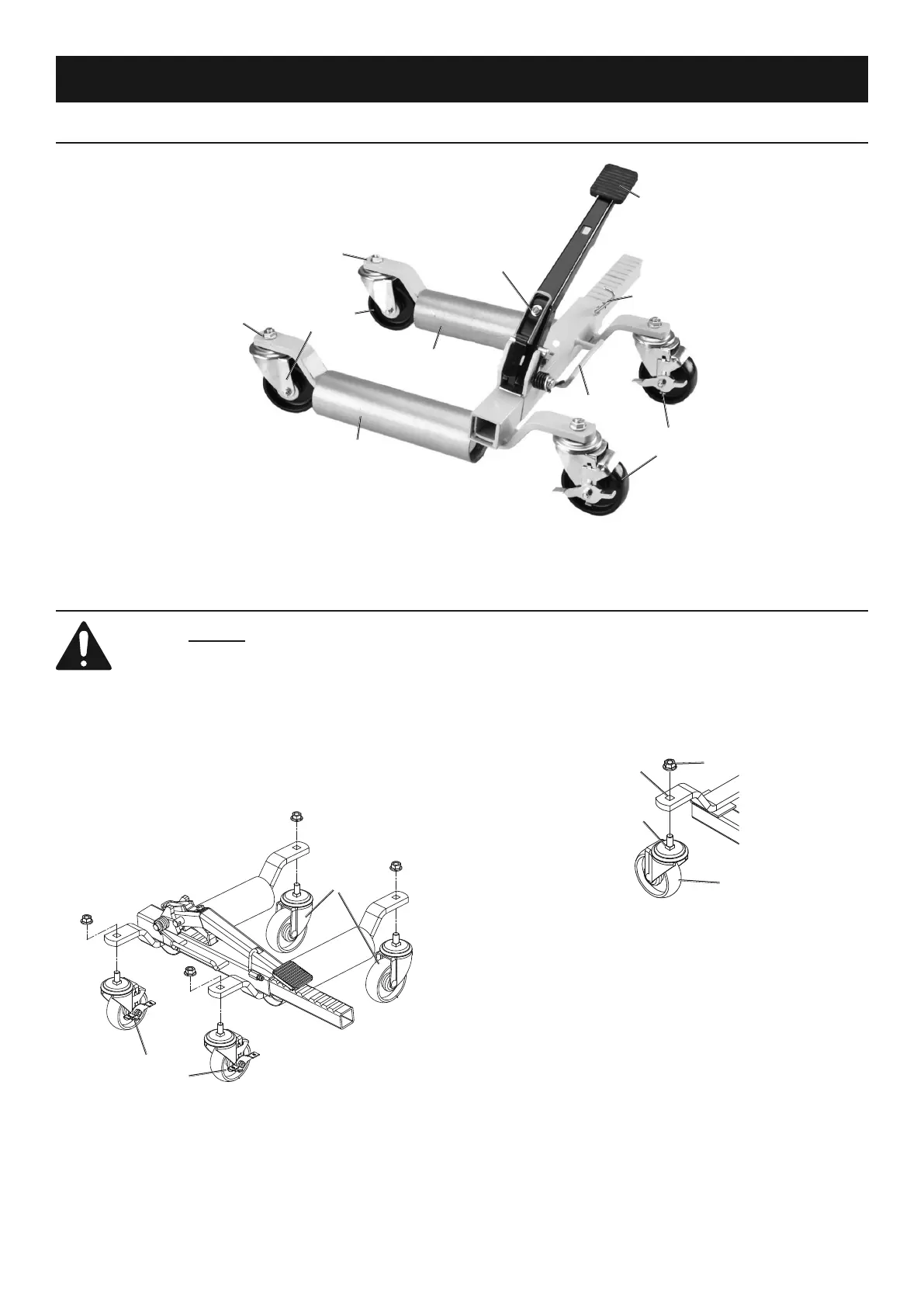

Figure A
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document
including all text under subheadings therein before set up or use of this product.
1. Assemble on a flat, level, hard and smooth surface.
2. Attach two Locking Swivel Casters to the
side of the frame that has the foot pedal
3. Attach two Swivel Casters to the other side.
Locking
Swivel Caster
Swivel
Caster
Figure B
4. When attaching Casters, make sure the square
bolts seat inside the square openings.
Square
Opening
Caster
Lock
Nut
Square
Bolt
Figure C
5. Thread Lock Nuts onto all four
Caster bolts, securing tightly.
To Next Page
