DaytonAudio BTR01 - Connection Guide; Typical Connection Setup

Typical Connection
ANT
MADE IN CHINA
RIGHT
OUT
LEFT
OUT
POWER
DC 12V
OPTICAL
OUT
COAXIAL
OUT
BLUETOOTH AUDIO RECEIVER
2 channel power amp with
speaker right / left output
2.0 passive speakers
BTR01
Connection Instructions:

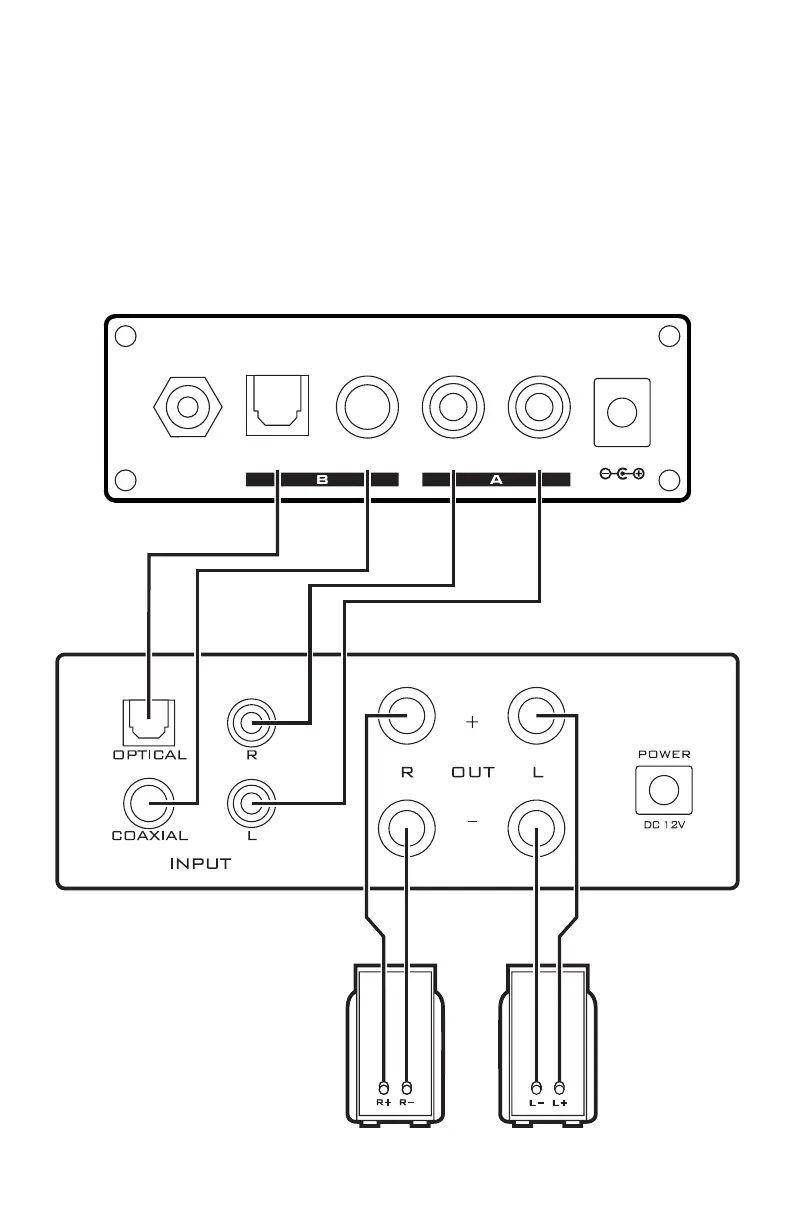

Connect the BTR01 to your amplifier according to the connection diagram below.
When connecting or disconnecting to the audio outputs of the BTR01 be sure that the
power is turned off.
