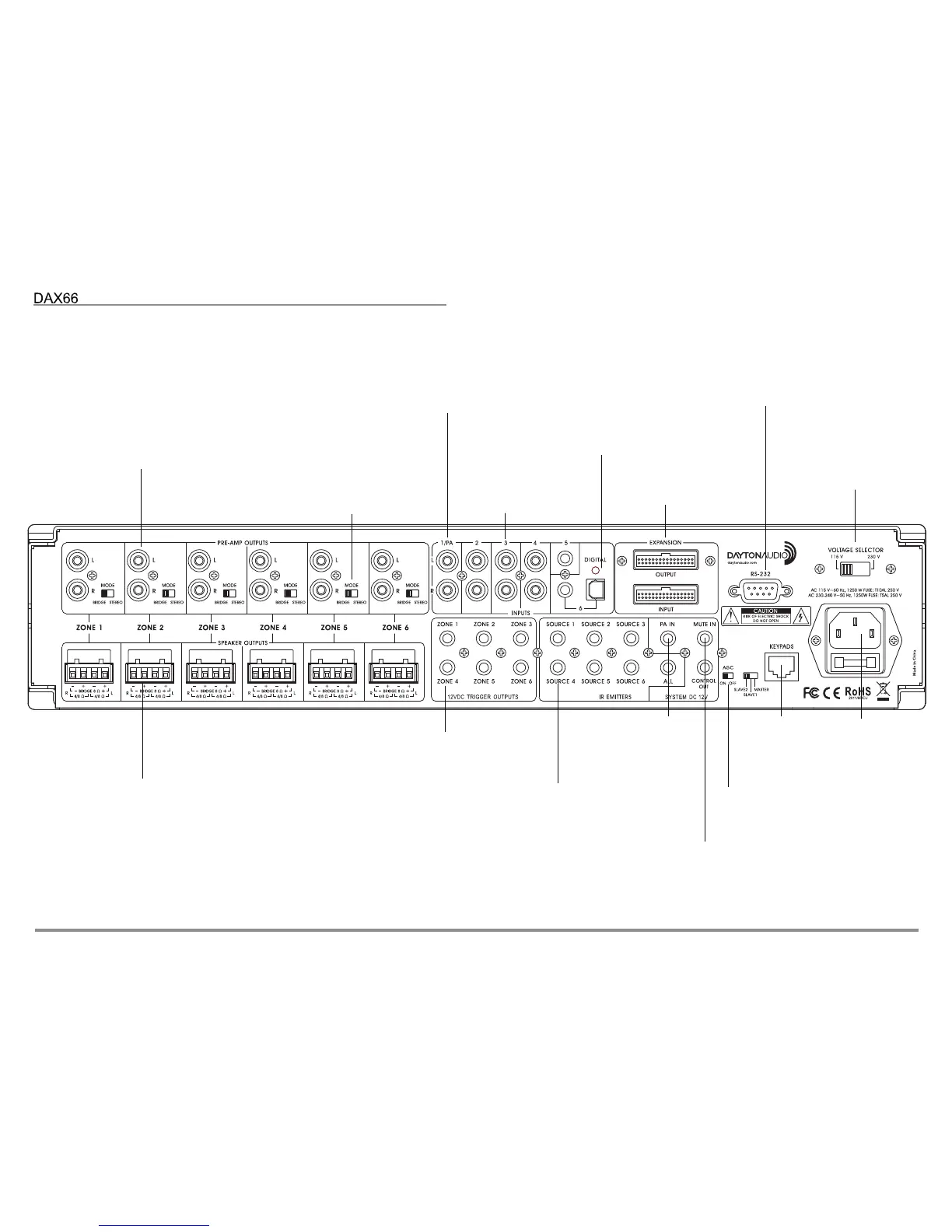

MASTER CONTROLLER / AMPLIFIER — REAR PANEL
Input #1 will override all zone
inputs with 12Vdc applied to
the PA - IN trigger jack
Bi-directional
RS-232 port
Stereo line-level
PRE-AMP OUTPUTS
for each zone
Input #5: 3.5mm Stereo
Input #6: Toslink S/PDIF
or 3.5mm Stereo
VOLTAGE
SELECTOR
115V - 230V
EXPANSION IN/OUT;
Connect up to 3
systems
MODE switch:
BRIDGE / STEREO
Four stereo
"RCA" INPUTS
12Vdc PA
trigger IN
KEYPADS
Input connects
to keypad hub
12VDC
TRIGGER OUTPUTS
activate exte
rnal devices
AC Input
6-dedicated IR outputs
and 1-global IR output
SPEAKER OUTPUTS
50 watts @ 4 ohms in stereo mode
25 watts @ 8 ohms in stereo mode
100 watts @ 8 ohms in bridge mode
Automatic Gain Control
brings low input levels
up to a pre-set level
12Vdc MUTE
trigger IN
