Raptor Enclosure Design
10" Subwoofer
Vb..........1.00 Cubic Feet
Tun........29.44Hz F3 29Hz
Port .......3Ø (Diameter) 16.89" Length
Port Velocity........9.54%
Tb.........1.157 Cubic Feet
Material........18mm (0.709") MDF
Raptor
PROFFESIONAL
16.12"
12.5"
18.81"
14.82"
8.16"
16.06"
13.5"
24.56"
15.63"
8.18"
Raptor Enclosure Design
12" Subwoofer (1)
Vb..........1.5 Cubic Feet
Tun........30.75Hz F3 32Hz
Port .......3Ø (Diameter) 8.12" Length
Port Velocity........14.05%
Tb.........1.681 Cubic Feet
Material........18mm (0.709") MDF
Raptor Enclosure Design
12" Subwoofer (2)
Vb..........1.1 Cubic Feet
Tun........29Hz F3 37Hz
Port .......3Ø (Diameter) 15.23" Length
Port Velocity........13.28%
Tb.........1.3 Cubic Feet
Material........18mm (0.709") MDF
16.12"
12.5"
21.10"
14.82"
8.16"

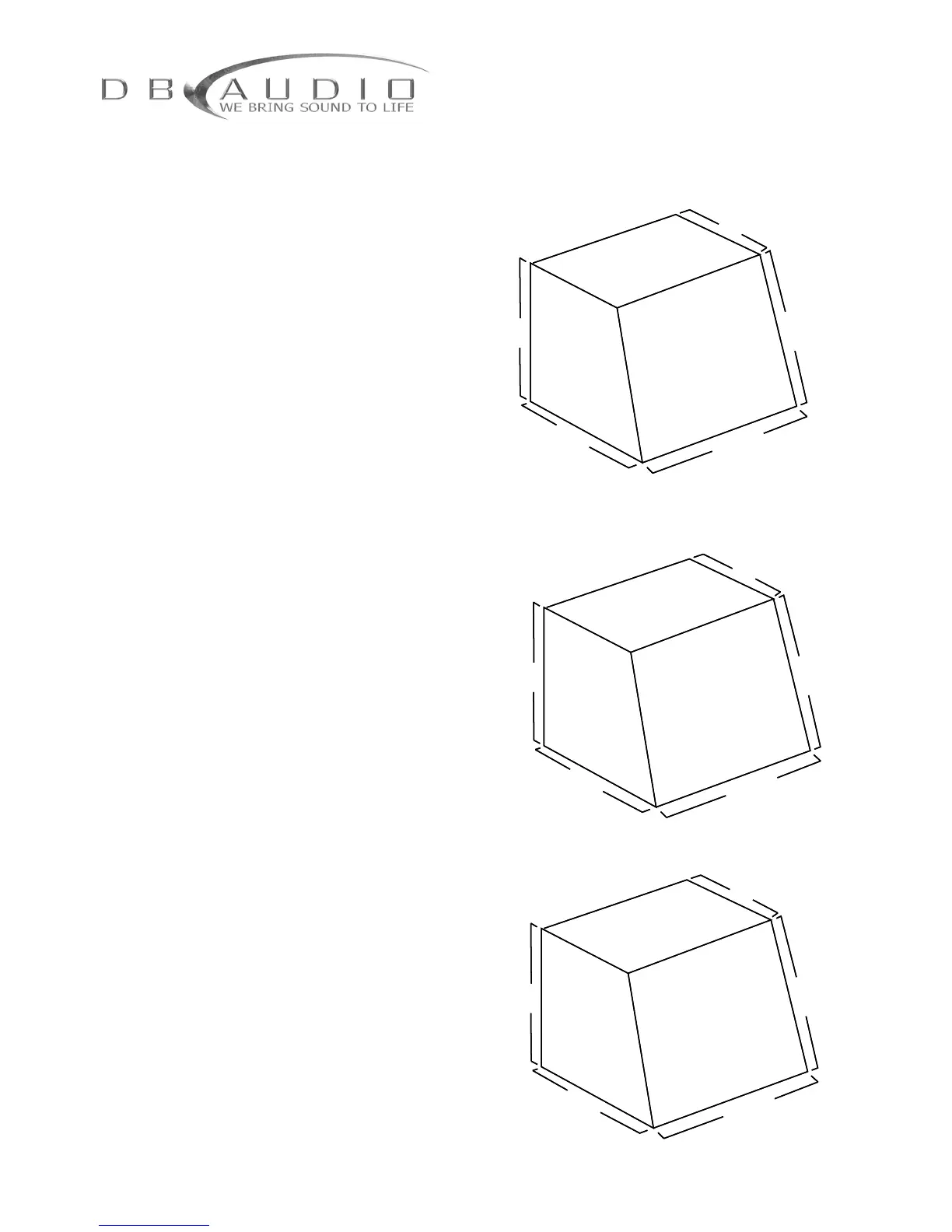

These diagrams are for
illustration purposes only. All
dimensions are approximations.
Please refer to speaker size when
constructing enclosure.
