Karnage Enclosure Design:
Design 1
Internal Volume 62L Tuned to 36hz Use 18mm
MDF or 25mm.
Design is using 18mm MDF, if using 25mm
please adjust dimensions to take account of
the dierence
Front Bae is 2 x 18mm MDF Panels or use 1
x 25mm MDF

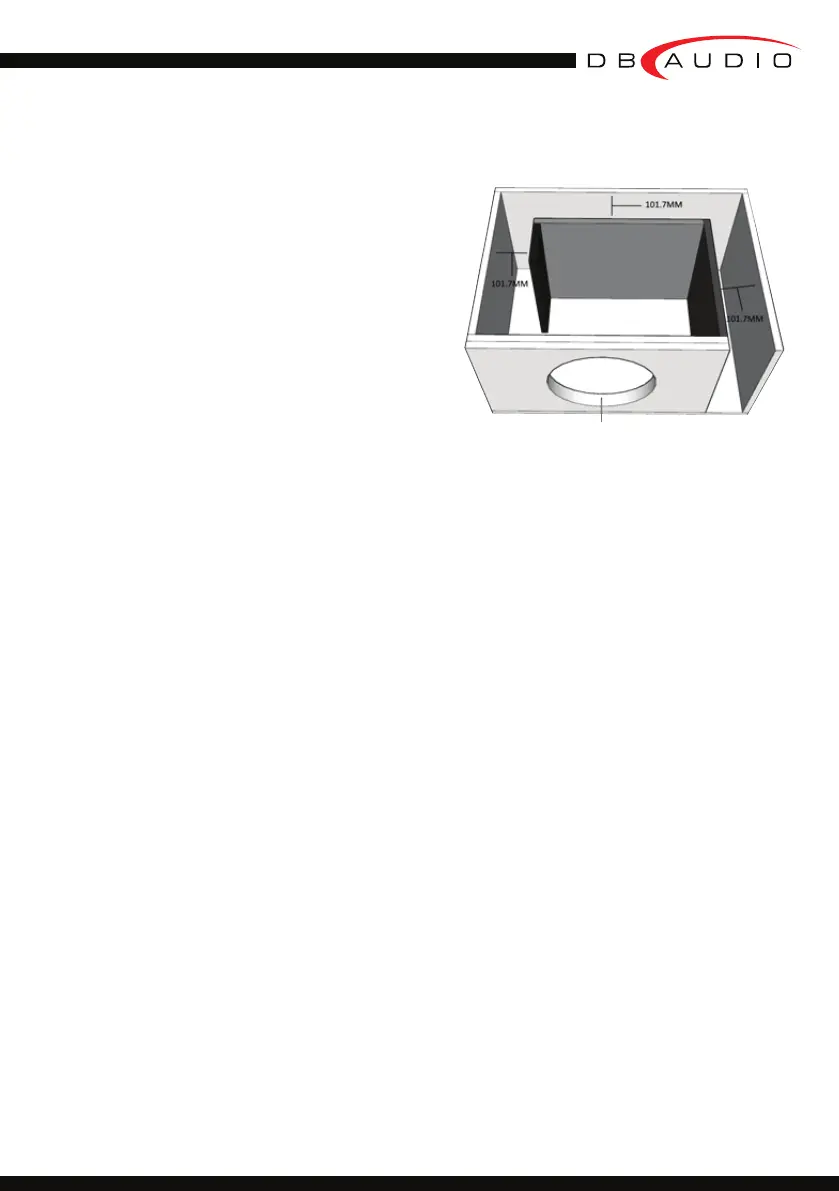

Slot Port: W 101.7mm x H 345mm x L 950.20mm
Port1 366.4 x 345mm (1) (A)
Port2 453.8 x 345mm (1) (B)
Port3 130 x 345mm (1) (C)
Enclosure EXTERNAL Dimensions:
H 381mm or 15”
W 711.20 or 28”
D 522.1” or 20.55”
Design 2
Internal Volume 82L Tuned to 28.5hz Use 18mm MDF or 25mm.
Design is using 18mm MDF, if using 25mm please adjust dimensions to take account of
the dierence
Front Bae is 2 x 18mm MDF Panels or use 1 x 25mm MDF
Slot Port: W 101.7mm x H 345mm x L 1162.80mm
Port1 402.3 x 345mm (1)
Port2 580.8 x 345mm (1)
Port3 180 x 345mm (1)
Enclosure EXTERNAL Dimensions:
H 381mm or 15”
W 838.2 or 33”
D 558” or 21.96”
09
Subwoofer mounting hole
A
B
C
