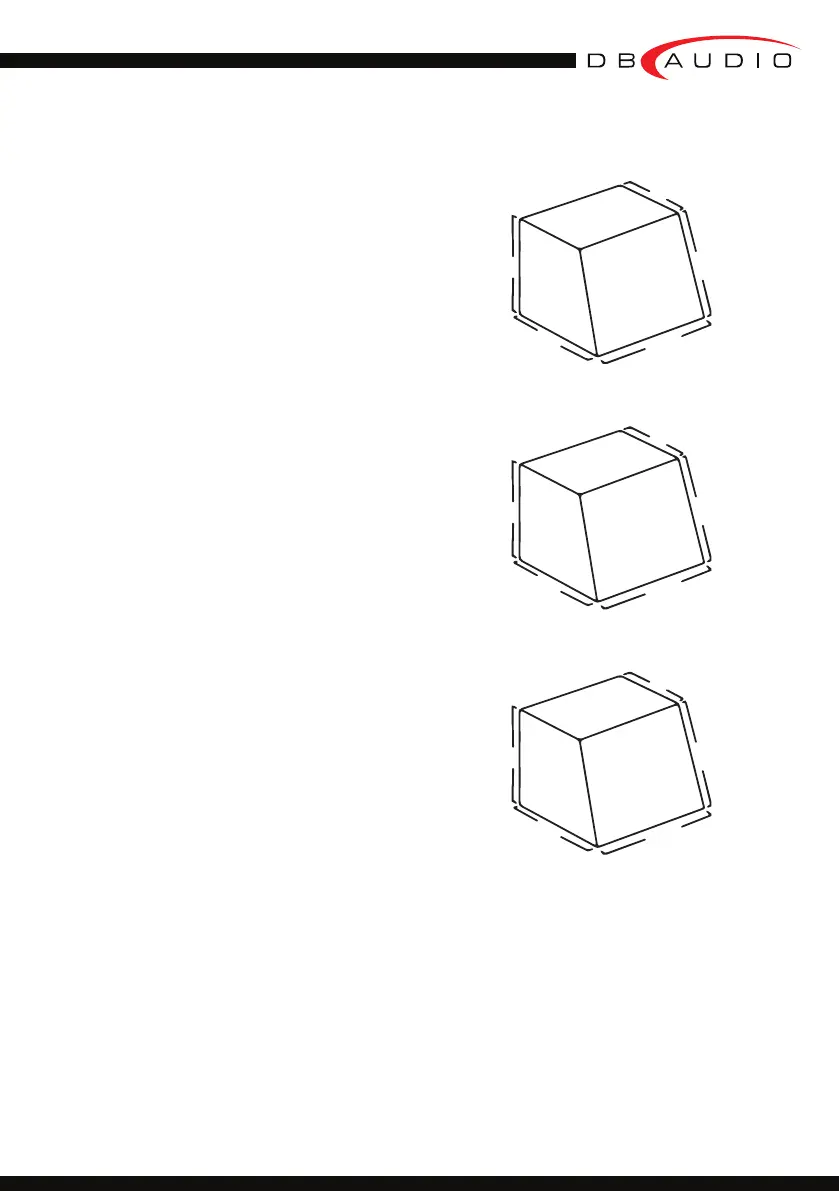

Xtinct Enclosure Design:
12” Subwoofer - 1
Vb ................... 0.9 Cubic Feet
Tun ................... 36Hz F3 34Hz
Port ................... (2x) 3"Ø (Diameter) 26.29" Length
Port Velocity ................... 21.27%
Tb ................... 1.27 Cubic Feet
Material ................... 18mm (0.709") MDF
(Recommended 25mm (1.0") MDF)
14”
16.95”
9”
17”
16.12”
12” Subwoofer - 2
Vb ................... 1.5 Cubic Feet
Tun ................... 33Hz F3 27Hz
Port ................... 4"Ø (Diameter) 14.63" Length
Port Velocity ................... 21.79%
Tb ................... 1.76 Cubic Feet
Material ................... 18mm (0.709") MDF
(Recommended 25mm (1.0") MDF)
14.5”
20.76”
10”
18”
16.56”
15” Subwoofer
Vb ................... 1.1 Cubic Feet
Tun ................... 30.4Hz F3 30Hz
Port ................... (2x) 4"Ø (Diameter) 29.05" Length
Port Velocity ................... 16.21%
Tb ................... 2.725 Cubic Feet
Material ................... 18mm (0.709") MDF
(Recommended 25mm (1.0") MDF)
16.5”
23.35”
11”
21”
19.29”
(Note: If using the recommended 25mm (1") MDF, please add this amount to the enclosure dimensions)
05
These diagrams are for illustration purposes only. All dimensions are approximations. Please refer to speaker size when constructing enclosure.
