dbx QUANTUM - Page 10

In-Ear Monitor Application Guide
®
10
Quantum
dbx

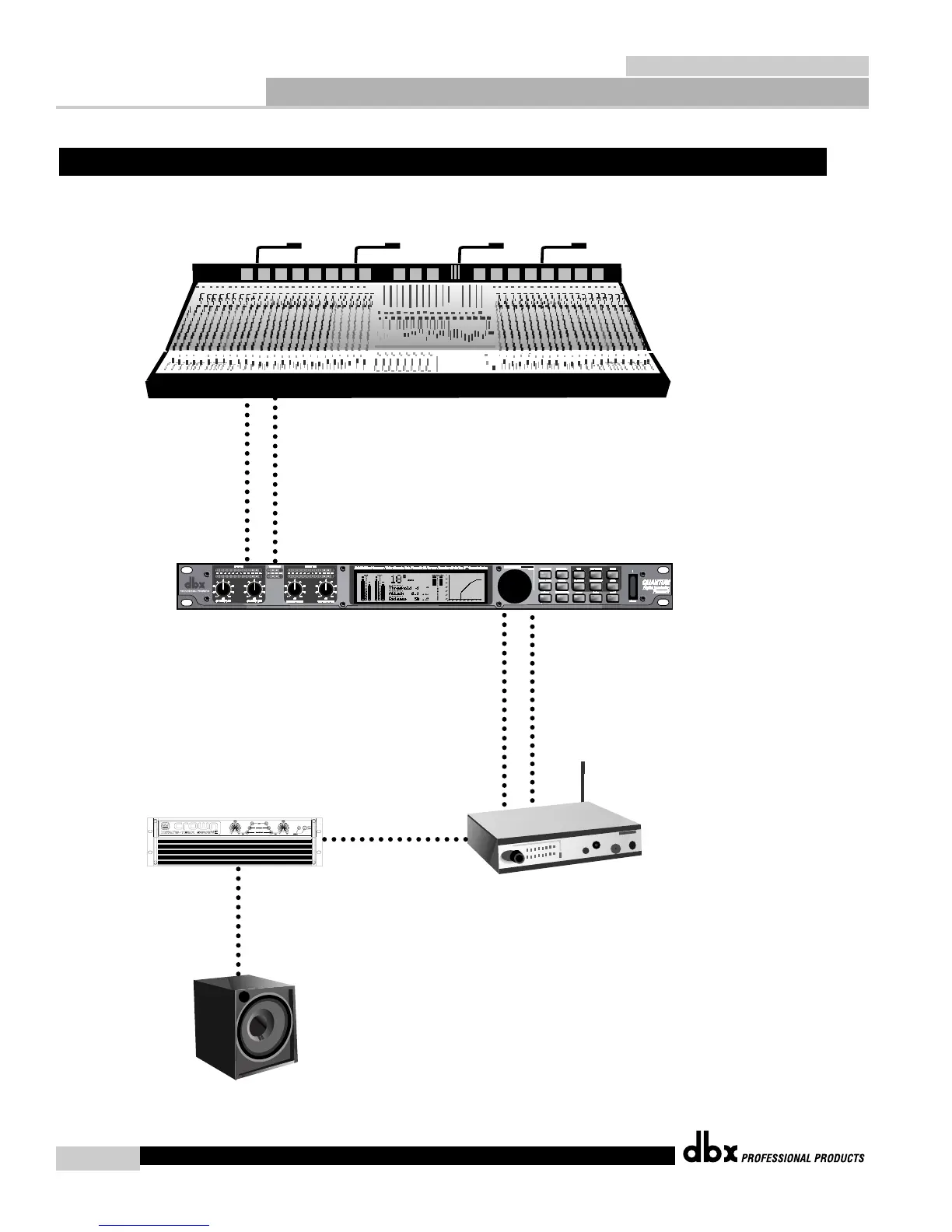

Mixer to QUANTUM to In-Ear Transmitter w/ Sub Out
Out-
Stereo Mix
Output - 1
In
Quantum
Input -Ch 1
Out-
Stereo Mix
Output - 2
In
Quantum
Input - Ch 2
Out-
Quantum
Ch - Ch1
Out-
Quantum
Ch - 2
In
In-Ear Trans.
Input -Ch 1
In
In-Ear Trans.
Input -Ch 2
Power Amp
Subwoofer
Sub
Output
Amp
Input
Amp
Input
