dbx ZC-1 User Manual

Safety Warning:
The installation of the Zone Controllers MUST be accomplished with the use of cable which is rated
VW-1 or higher. Common NEC designations which meet this rating include: CMP, CMR, CMG, CM
and CMX.
Specifications:
Connections:
ZC-1, ZC-2, ZC-3, ZC-6, ZC-7, ZC-8 and ZC-9 Connectors: (2) RJ-45
ZC-4 Connectors: (2) RJ-45, (1) 6-pin Phoenix
ZC-BOB Connectors: (7) RJ-45
ZC-Fire Connectors (2) RJ-45, (2) 2-Pin Phoenix
Wiring:
Maximum Cable Length depends on number of Zone Controllers and wiring schematic.
Series Wiring:
Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers:
600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring:
Using a ZC-BOB:Up to Six Zone Controllers: 1000 ft.
Cable: CAT5 or CAT5E with <28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Approvals:
UL 6500, IEC 60065, EN 55013, E60065
SHIPPING WEIGHT:
.7 lb.

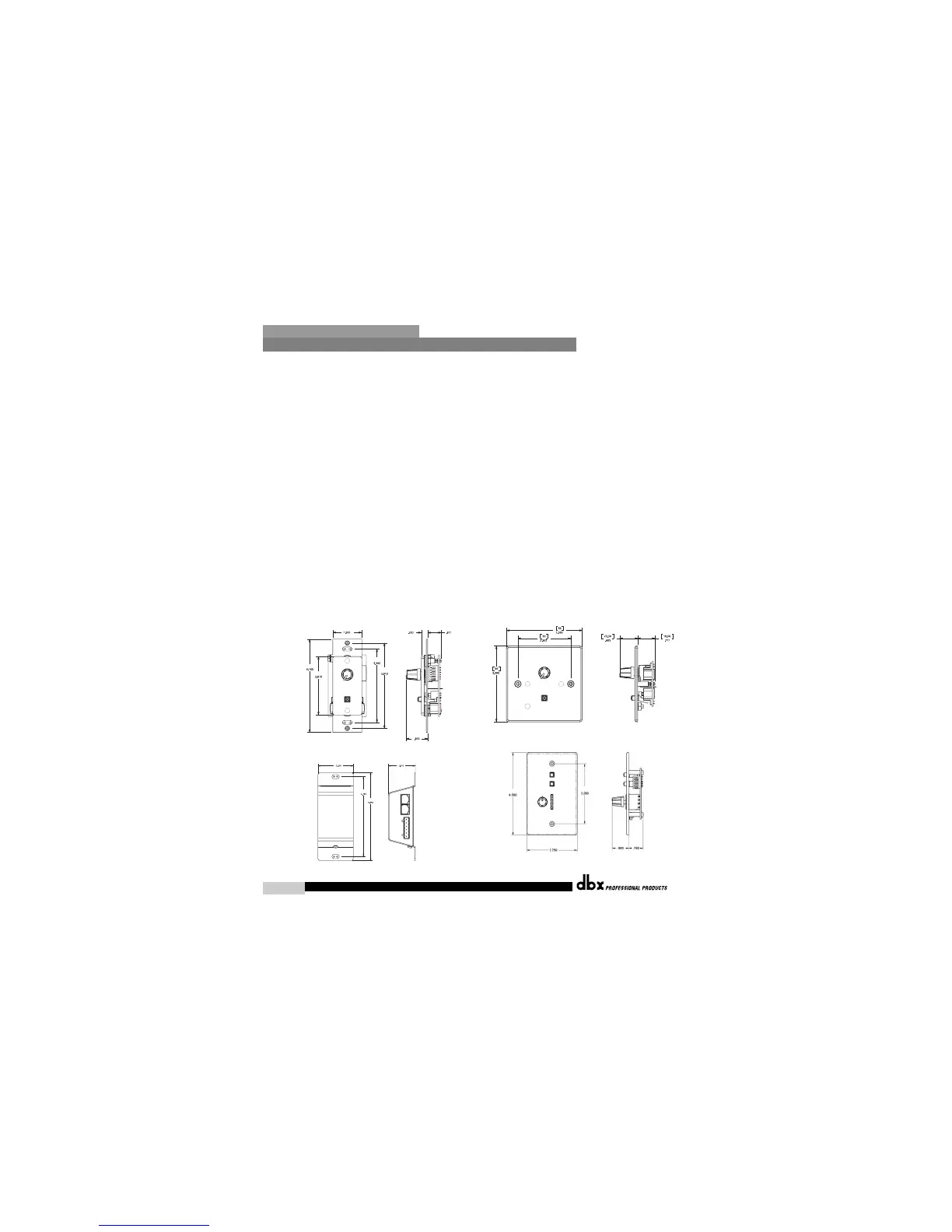

Dimensions:
ZC-Remote Control Wall Controllers
USER GUIDE
[33.0]
[105.7]
[96.77]
[7.11]
[24.46]
[15.52]
[83.31]
[66.29]
[53.34]
[120.7]
[40.89]
[133.1]
ZC-1,2,3, 6, 7, 8 and 9 EU. VERSION
ZC-1,2,3,6,7,8
ZC-4, BOB and Fire
18-1342-D
®
DriveRack
®
/ZonePRO
™
User Manual
8
[114.3]
[83.31]
[69.85]
[22.86] [20.07]
ZC-8 and 9
