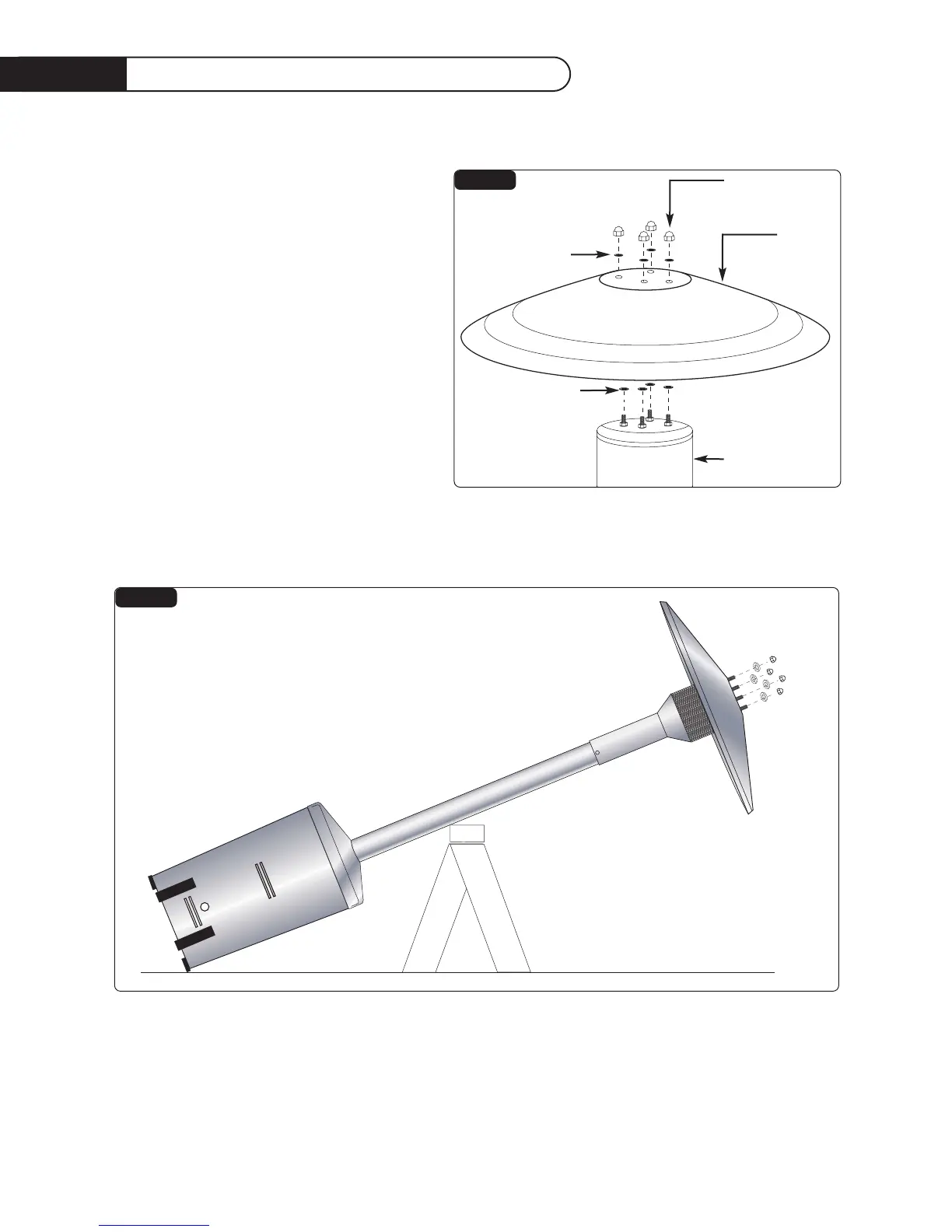

STEP 9
Locate the cap nuts, washers (4 ea.) and
reflector shield.Tip the heater backwards and
support it with stable horizontal surface (i.e.
sawhorse, workbench step ladder).
Install the reflector shield with the cap nuts
and washers.
Use caution not to over-tighten
or damage the reflector.
Return the unit to
its upright position and continue to the next
section for recommended locations and
usage.
HARDWARE USED
1) P/N 15005-15 Washers - Flat (4)
2) P/N 15019-07 1/4 Cap Acorn Nuts (4)
3) P/N 15005-10 Washers - Split (4)
11
As semb ly I nstructions
FIG.11
FIG.10
REFLECTOR
ACORN NUT
SPLIT WASHER
FLAT WASHER
BURNER HEAD
