DCS PHFS-DW-SS, PHFS-DW-BK, PHFS-DWWT, PHFS-DW-BL, PHFS-DW-GN, PHFS-DW-BZ User Manual

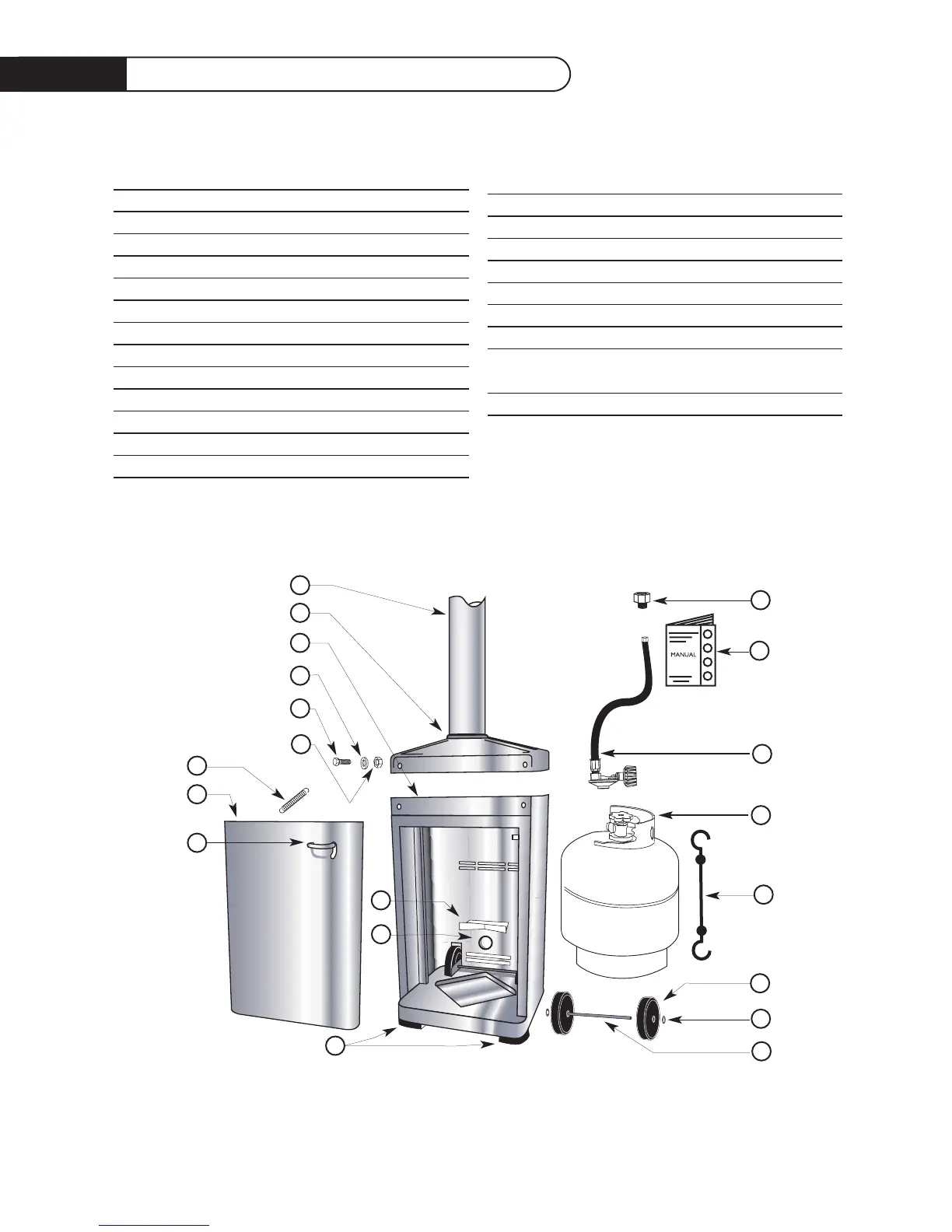

Parts List
20
ITEM PART NO. DESCRIPTION
1. 23121-XX Post Assembly (1)
2. 23096-XX Base Assembly (1)
3. 23106-XX Door (1)
4. 17314 Manual (1)
5. 15003-15 1/4-20 Bolt (8)
6. 15005-8 Nylon Washer (8)
7. 13230 90
0
Reg./Hose Assembly
8. 18159 Reducer Fitting (1)
9. 18290 Rubber Foot (4)
10. 23122 Rubber Collar (1)
11. 18143 6” Wheel (2)
12. 23112 Axle (1)
13. 18023 Cap Nuts (2)
14. 18024-03 Door Handle (1)
15. 23119 SS Spring (1)
16. 23108 Latch Bracket (1)
17. 15021-09 1/4-20 Hex Nut (8)
18. 18201 LP Tank (1)
19. 23114 18” Tank Strap (1)
20. 14088 Grommet (1)
21. 23112 Tank Retainer
Note : Please specify your model color when reordering
post, base assembly, or door (items 1-3).
1
2
3
4
6
5
7
8
9
17
18
11
12
13
15
10
20
19
14
21
