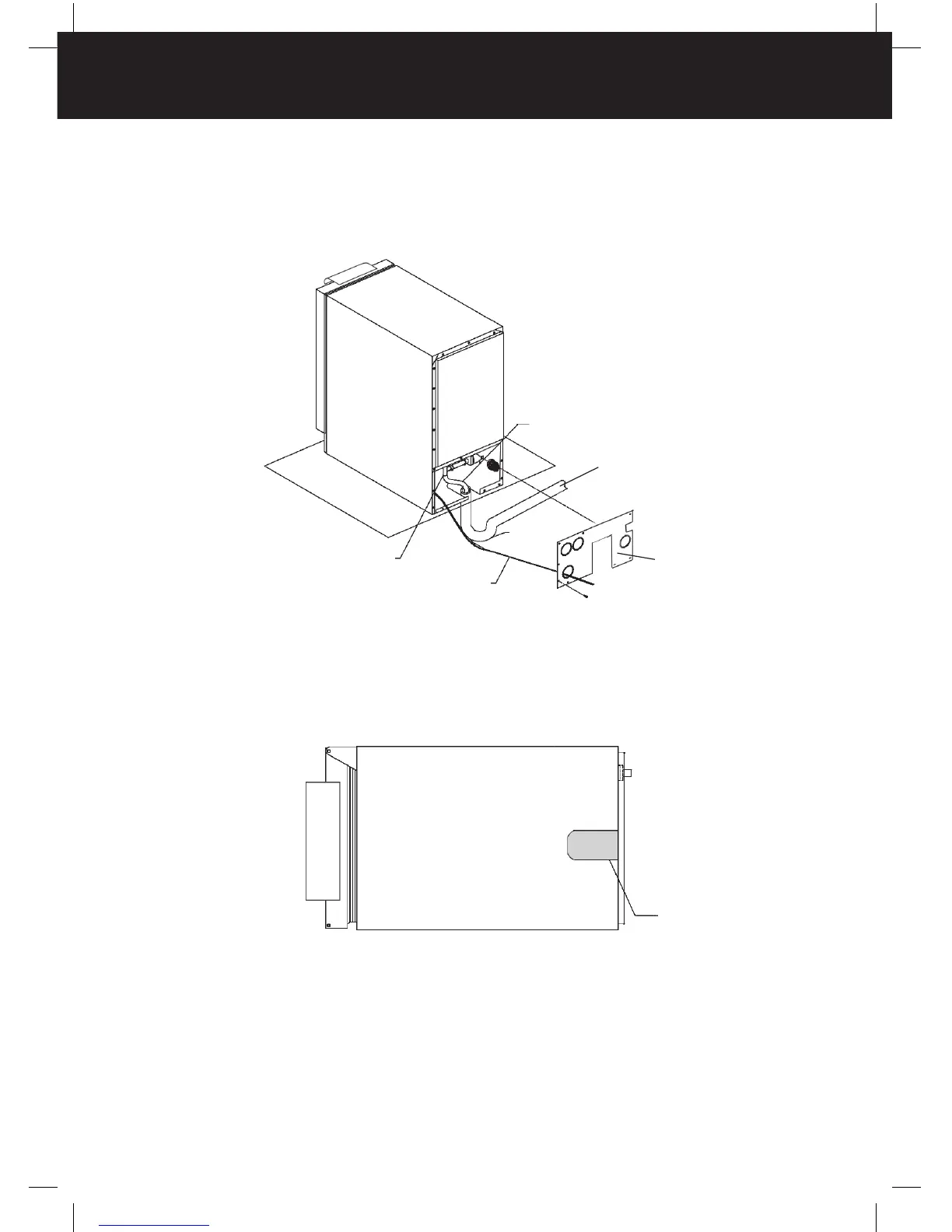

Gravity drain, no drain pump
Your ice maker has a gravity drain that requires 5/8” outside diameter (O.D.) tubing
from the back of the ice maker to a plumbed connection to a sanitary sewer. The gravity
drain location for built-in ice makers can be within the shaded area (A).
Drain from ice maker
Ice maker
power cord
Drain
trap
5/8” O.D. drain tubing
and hose clamp
11/2” Drain pipe
Access panel
Ice maker with gravity drain, no drain pump
Gravity drain location
A
Front of unit
Drain access
Top of unit
