Connecting the water supply
Water supply
Connect the ice maker to a potable drinkable water supply only. Do not install on line
pressure above 120psi (827kPa) or below 20psi (138kPa).
Use 1/4” (6mm) copper tubing for your water supply line, available at any local hardware
or plumbing supply store. Purchase enough copper tubing to allow a coil to be formed
behind the unit so the appliance can be pulled out from the installation for servicing
or cleaning (B). Route the 1/4” (6mm) copper tubing (water supply line) to suit your
installation being sure not to kink the tubing.
A shutoff valve is recommended on the water supply line to ease servicing the
appliance. Do not use a self-piercing type valve.

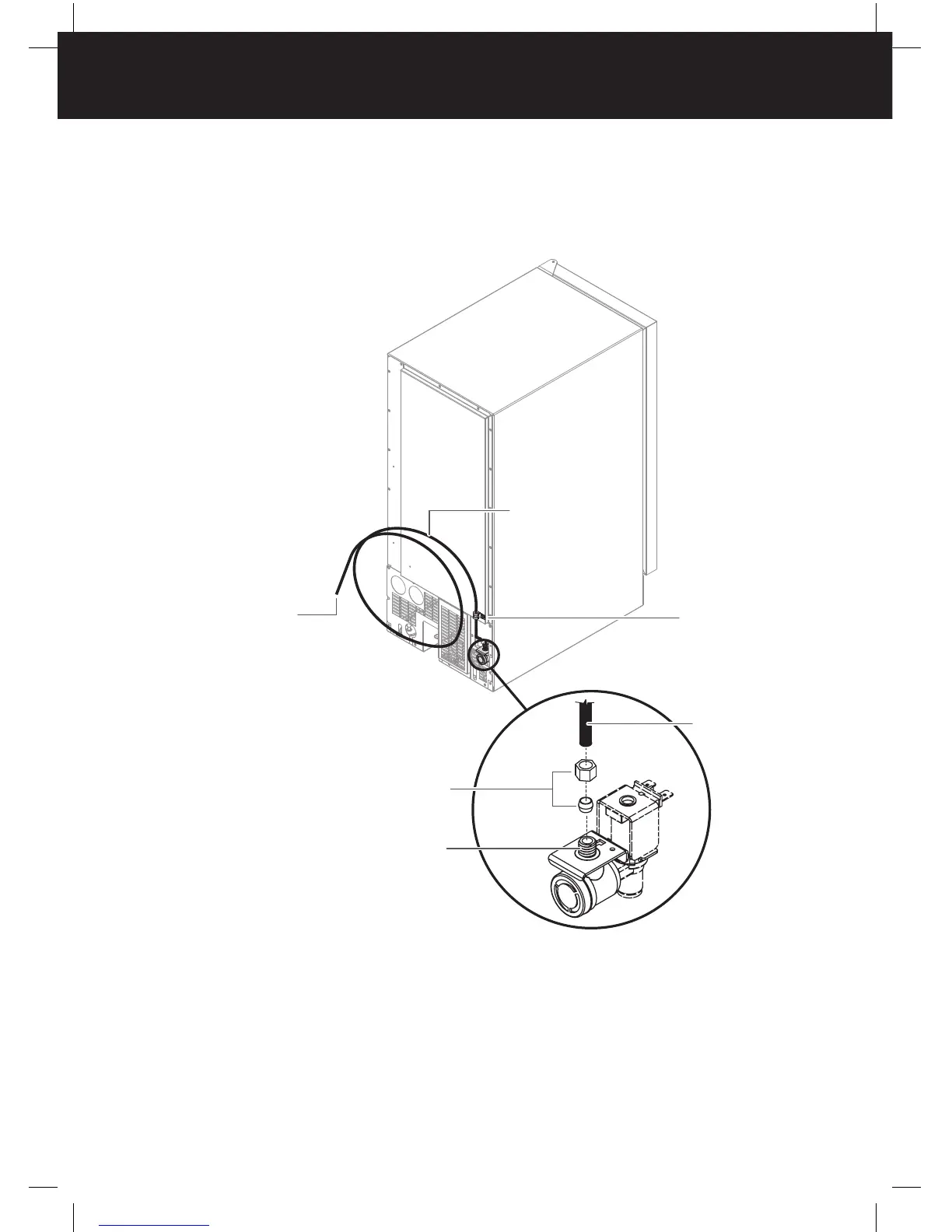

Water supply inlet
connection to shut off valve
1/4’’ copper tubing
(water supply line)
B
Compression nut fitting
Water supply line
Water valve inlet
C
D Screw and clamp
