DCS RF24RE - DOOR ALIGNMENT; Door Alignment Procedure

15
Door alignment:
The door should be parallel to the sides and top of the ap-
pliance. If alignment is necessary the door may be adjusted
by loosening the 2 screws which secure the door adjust-
ment bracket on the bottom of the door (see Figure 13a)
and adjusting the door side to side. Use a
5
⁄32” allen wrench
for this procedure. (See Figure 13 below). When nished
aligning the door, tighten the screws securely.

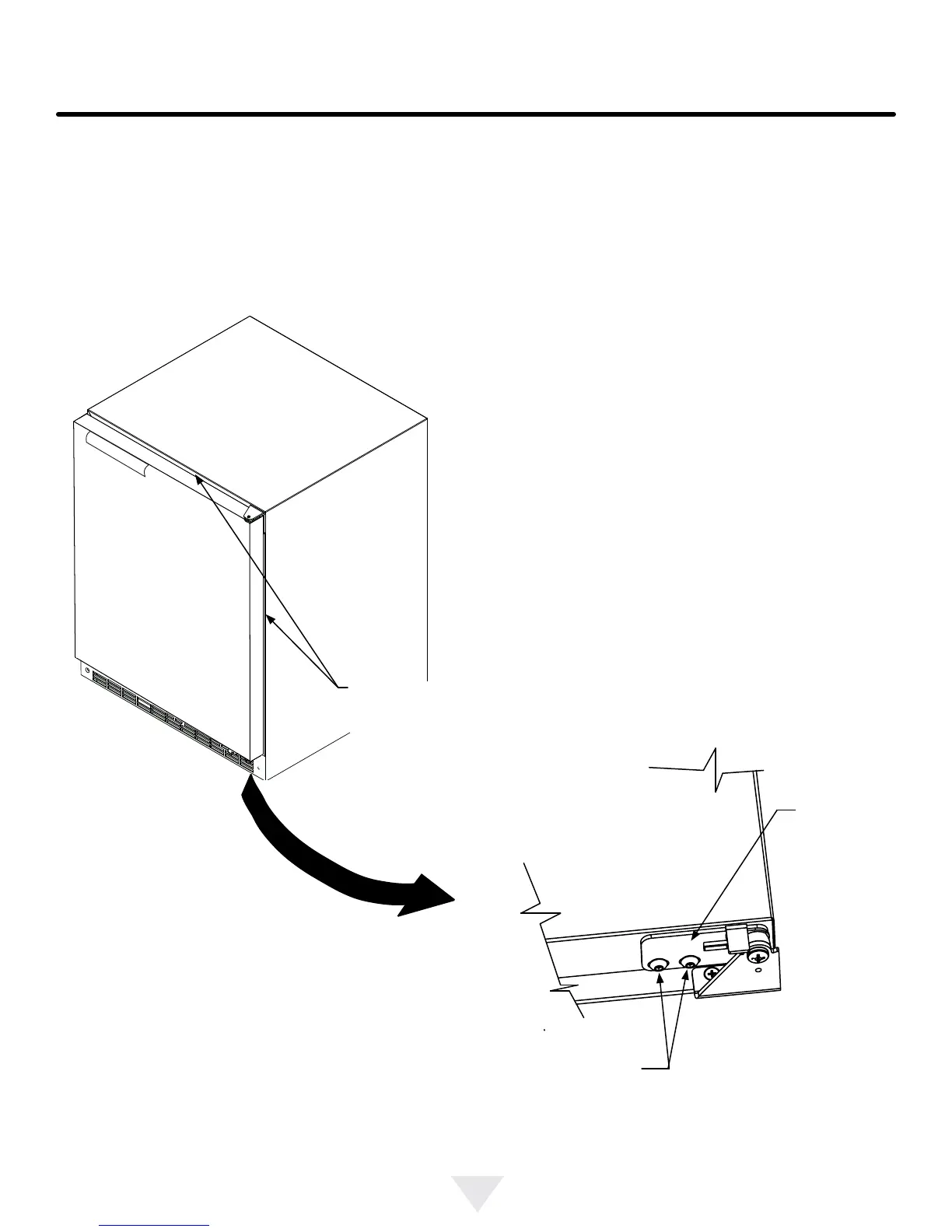

Bottom
of door
Loosen (don't remove)
these two screws.
Door should be
parallel to top
and sides of the
appliance.
Figure 13
DOOR ALIGNMENT
Figure 13a
Door
adjustment
bracket
